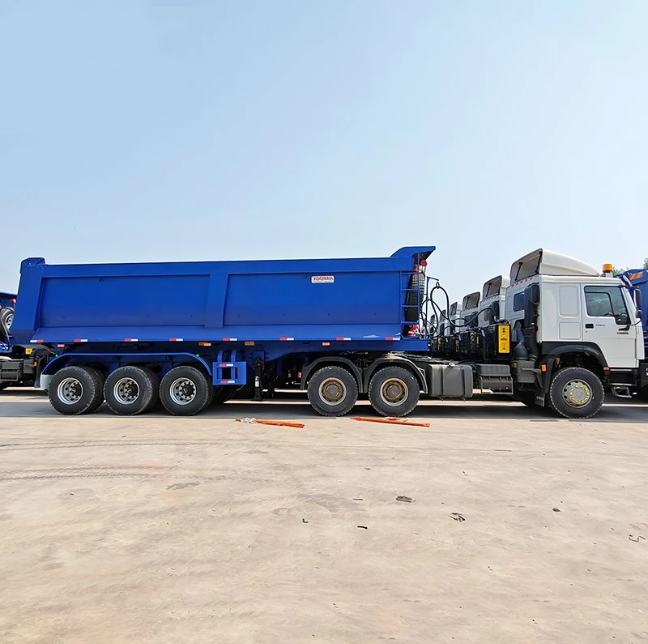

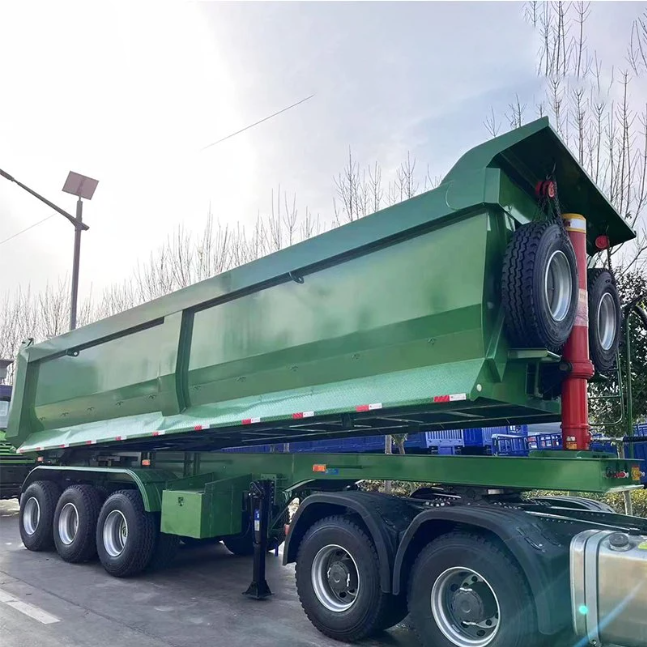

Truck Trailer 3 Axles U Type Rear Dump Trailer with Steel Material and U Shape Design
Price:
$10,200.00/units 1-9 units
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
WOSHENG Rear Dump Semi Trailer
Product Description
Products Description
Best Price High Quality Truck Trailer 3 Axles 4 Axles U Type Rear Dump Trailer U Shape Tipper Semi Trailer
Wosheng Dump Semi Trailers are in great demand from customers, the proven product, which features reliable structure , great loading capacity, excellent power, reliable performance. This trailer model could meet the requirements of different road conditions, and could satisfy your need of long distance highway transportation.
Specification
Wosheng Rear Dump Tipper Semi Trailer | ||||||||
Application | Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading | |||||||
Model | 2 axles tipper trailer | 3 axles tipper trailer | 4 axles tipper trailer | 5 - 6 axles tipper trailer | ||||
Bucket capacity | 25 cubic meters | 30/35/40 cubic meters | 40 cubic meters | 45 cubic meters | ||||
Dimension （mm） | 8500*2500*3500 | 10000x2500x3800 | 10500*2500*3900 | 11500*2500*3950 | ||||
Rim and tires | 12.00R22.5 tires 9.0-22.5 rims | 12.00R22.5 tires 9.0-22.5 rims | 315/80R22.5 tires 9.0-22.5 rims | 12.00R20 tires 9.0-20 | ||||
Lifting system | HYVA brand FE/FC type cylinders Diameter=191 mm | HYVA brand FE/FC type cylinders Diameter=191 mm | HYVA brand FE/FC type cylinders Diameter=202 mm | HYVA brand FE/FC type cylinders Diameter=214 mm | ||||
Tipping box | T700 / Hardox | |||||||
Main Beams | T700 / Q345B double plate | |||||||
Height:500mm | ||||||||
Upper Plate: 14mm | ||||||||
Middle Plate: 8mm | ||||||||
Lower Plate: 16mm | ||||||||
Axle | 13T/16T FUWA / BPW Brand | |||||||
King Pin | JOST brand 2.0'' / 3.5'' bolt type king pin | |||||||
Landing Gear | 28T double speed JOST brand | |||||||
Suspension | Heavy duty mechanical suspension / Air bag / Bogies | |||||||
Pneumatic Braking System | WABCO RE 6 relay valve T30/30 air brake chamber | |||||||
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (special for export market ) | |||||||
Light | LED light,24V,7ways(7 wire harness) | |||||||
Tool Box | steel/aluminum One piece,1m*0.5m*0.5m(Size can be choose freely) | |||||||
Painting | 1 coat of anticorrosive prime, 2coats of final paint | |||||||
Any parts fitted could according to clients request, contact us to get more. | ||||||||
Details Images
Reinforcement side plate supporting design
Brake system
Tool box with enough important emergency tools
Spare Tire
Front axle lifting
Libricate counteraxle
Hydraulic and Power takeoff box, No need to install power output device on the engine
Tail light guard
Hydraulic dust cover
Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.
abrasion.Meanwhile,Easy to disassemble and maintain.
Axle :BPW/FUWA/LEAO Axle optional.
Integrated Advanced Low-Alloy Axle Beam,Whole
Axle Beam No Welding process.Strong Carrying
Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000
kilometers.
Company Profile
About us
Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.
Factory
Our factory commit to strict quality
control and thoughtful customer
service, our experienced staff can
discuss your requirements at any time
to ensure your full satisfaction. We
not only want to be perfect in
appearance, but also pursue the
delicacy of detail. We have advanced
modern equipment, strong technical
force to ensure customer satisfaction
of products and timely delivery.
Certifications
We have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.
Why Choose Us
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility
model patents. We have attracted customers from all over the world, whether choosing the current
product from our catalog or seeking technical support for your application, you can talk to our
customer service colleagues about your procurement needs.
Packing and Loading
FAQ
Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.
Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.
Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.
Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
Q6. What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can ship trucks by road or railway. For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
