Guarantee 40FT Container Flatbed Semi Truck Trailer with Dual Line Braking System
Price:
$7,600.00/units 1-9 units
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
WOSHENG
Product Description

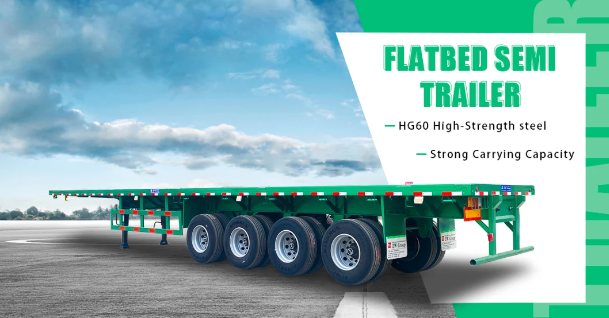

Products picture
20T-80T 3 axle cargo trailer flatbed semi-trailer for transport.
Wosheng Flatbed semi-trailers are usually used to transport 20FT/40FT/45FT container. The lower the center of gravity, the better the stability and safety, the better the ability to transport super high loads and pass overhead obstacles. According to the number of axles and the size of the tires, the load of the flatbed semi trailer is also different. The more the number of axles, the greater the load, and the load range is between 30-80 tons.
Products Description
Product Name | Flatbed Semi Trailer | |||
Dimension(Lx W x H)（mm） | outside 12400×2610×1550mm (customizable) | |||
Front Guard Height (mm) | 1550mm (customizable) | |||
Tare weight (kg) | 7000 (depends on final configuration) | |||
Max Loading Capacity (kg) | 50000 （customizable) | |||
Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) | |||
Side Beam | Q235 16# channel steel (customizable) | |||
Bottom Plate | 3mm diamond plate (customizable) | |||
Axles | 13/16/20 Ton. Axle amount optional like 2/3/4/6axles ..., Axle brand optional like SAF /FUWA/BPW etc | |||
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) | |||
Rim | 9.00-22.5/8.00-20/8.50-20 | |||
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional | |||
Suspension | Mechanical Suspension Air Suspension(American or Geman) | |||
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) | |||
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. | |||
Twist-lock | 4/8/12 units (customizable) | |||
Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums | |||
ABS System | None or installed as your requirement. | |||
Electrical system | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) | |||
Color | As per customer requirement | |||
Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting; | |||
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. | |||
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. | |||
Remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. |
Recommend Products
Company Profile
About us
Shandong Wosheng Special Vehicle Manufacturer Co., LTD. Our company focuses on the development and production of semi-trailer, engaged in the semi-trailer industry has more than 20 years of rich experience, is a real set of trade and production as one of the manufacturers.our experienced staff can discuss your requirements at any time to ensure your full satisfaction. modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Certification
We are your most reliable cooperation partner.
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
Packing and Shipping
Exhibition
FAQ
Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.
Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.
Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.
Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.
Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.
Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
