50ft 3 Axle Flatbed Trailer Customizable for Customer Requirements
Price:
$7,600.00/units 1-1 units
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
WOSHENG
Product Description

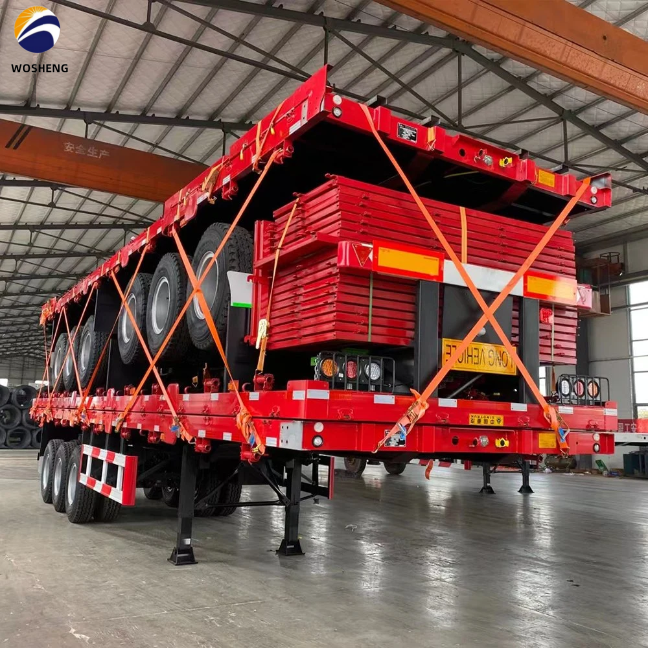

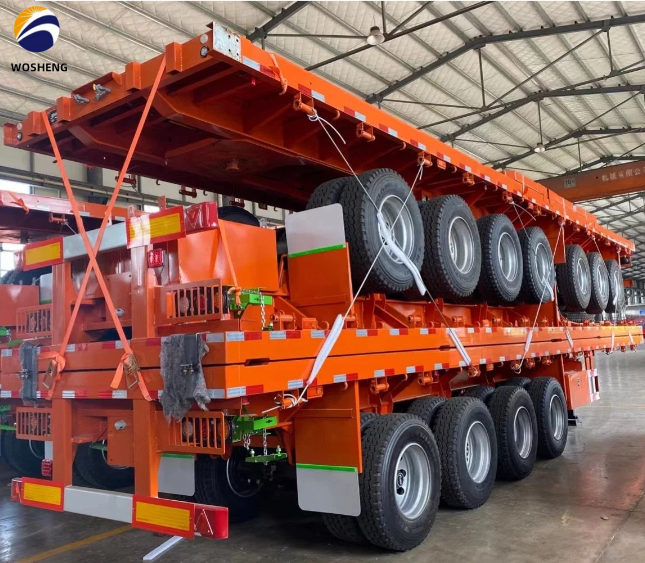

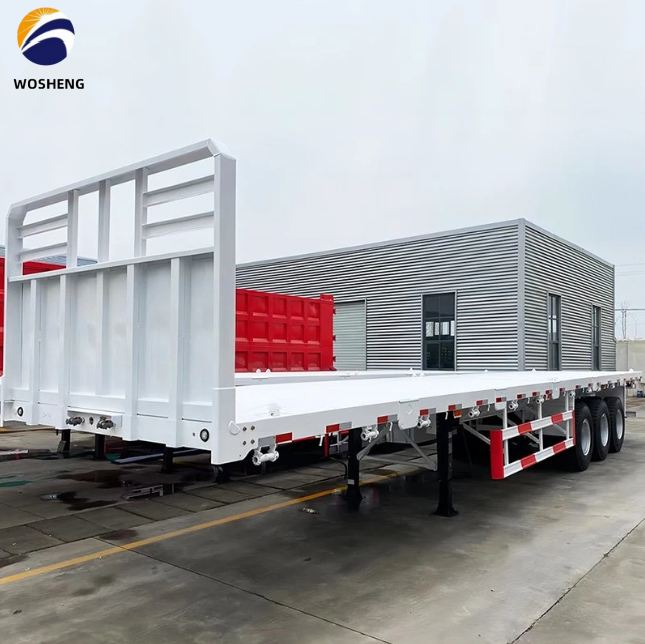

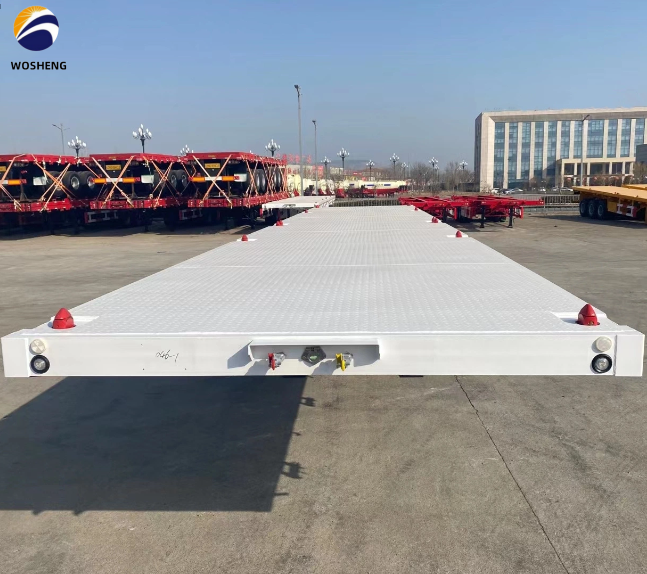

Products picture
3 axle cargo trailer flatbed semi-trailer
1.The Flatbed Container Trailer is the main product of our company. It's made of high stength full thickness Steel, titanium content 0.98‰, which ensure the toughness and strength of the beam and frame’s toughness and strength. The Max Loading Capacity:20- 100 Tons
2.The main beam adopts fully automatic submerged arc welding, the whole vehicle is shot blasted and rust-proof, and the floor is a 3mm thick anti-skid plate
3.The whole frame of the flatbed trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10+ years.
Products Description
Flatbed Semi Trailer Specification | ||||
20FT FLATBED SEMI TRAILER | 40FT FLATBED SEMI TRAILER | 45FT FLATBED SEMI TRAILER | ||
Brand: Wosheng | Brand: Wosheng | Brand: Wosheng | ||
2 Axles/3 Axles | 2 Axles/3 Axles | 3 Axles/4 Axles | ||
20ft container or cargo loading | 1*40ft/2*20ft Container or cargo loading | 1*40ft/1*45ft container or cargo loading | ||
Loading Capacity: 20 - 60 Tons | Loading Capacity: 30 - 80 Tons | Loading Capacity: 30 - 100 Tons | ||
Gooseneck Type: Yes | Gooseneck Type: Yes | Gooseneck Type: Yes | ||
Tandem Type: Yes | Tandem Type: Yes | Tandem Type: Yes | ||
Main Beam | ||||
Material: Q345/T700 | Material: Q345/T700 | Material: Q345/T700 | ||
Upper Plate Thickness: 12mm | Upper Plate Thickness: 16mm | Upper Plate Thickness: 16mm | ||
Middle Plate Thickness: 6mm | Middle Plate Thickness: 10mm | Middle Plate Thickness: 10mm | ||
Lower Plate Thickness: 14mm | Lower Plate Thickness: 18mm | Lower Plate Thickness: 18mm | ||
Height: 500mm | Height: 500mm | Height: 500mm | ||
Platform Thickness: 2.5mm | Platform Thickness: 3mm | Platform Thickness: 3mm | ||
Product Dimension | ||||
L 7000mm*W 2500mm*H 1570mm | L 12400mm*W 2500mm*H 1570mm | L 13950mm*W 2500mm*H 1600mm | ||
Axles | ||||
2/3 Axles *13/16 Ton WOSHENG/FUWA/BPW/Othe | 2/3 Axles *13/16 Ton WOSHENG/FUWA/BPW/Other | 3/4 Axles *13/16 Ton WOSHENG/FUWA/BPW/Other | ||
Tire | ||||
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand | 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand | 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand | ||
Rim | ||||
9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | ||
Leaf Spring | ||||
90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs | ||
King Pin | ||||
50#(2")/90#(3.5") JOST/Other Brand | 50#(2")/90#(3.5") JOST/Other Brand | 50#(2")/90#(3.5") JOST/Other Brand | ||
Landing Gear | ||||
28 Ton Two Speed,JOST/Other Brand | 28 Ton Two Speed,JOST/Other Brand | 28 Ton Two Speed,JOST/Other Brand | ||
Twist Lock | ||||
4 Sets | 12 Sets | 12 Sets | ||
Vehicle Painting | ||||
Electrophoresis painting | Electrophoresis painting | Electrophoresis painting | ||
Landing Gear
JOST or Wosheng landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of 30℃ to 120℃.
Axle
BPW/FUWA/Wosheng Axle optional. Integrated Advanced Low-Alloy Axle Beam, Whole Axle Beam No Welding process. Strong Carrying Capacity and high bending Strength. Axle maintenance-free could reach 3 Year/400,000 kilometers.
Brake System
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system, Prevent tire offset after loading, maximally avoid tire abrasion.
Meanwhile, Easy to disassemble and maintain.
Meanwhile, Easy to disassemble and maintain.
Tool Box
Located on the side of the trailer without taking up too much space, it can store necessary maintenance tools, straps and safety equipment, made of durable materials and securely locks to keep the contents safe.
Recommend Products
Company Profile
About us
Shandong Wosheng Special Vehicle Manufacturer Co., LTD. Our company focuses on the development and production of semi-trailer, engaged in the semi-trailer industry has more than 20 years of rich experience, is a real set of trade and production as one of the manufacturers.our experienced staff can discuss your requirements at any time to ensure your full satisfaction. modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Certification
Packing and Shipping
Exhibition
We are your most reliable cooperation partner.
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
FAQ
Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.
Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.
Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.
Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.
Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.
Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
