Multi-Type Tankers 30000-50000 Liters Aluminum Alloy Tank Semi Trailer for Versatile
Price:
$14,000.00/units 1-49 units
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Wosheng Liquid tank semi trailer
Product Description
Products Description

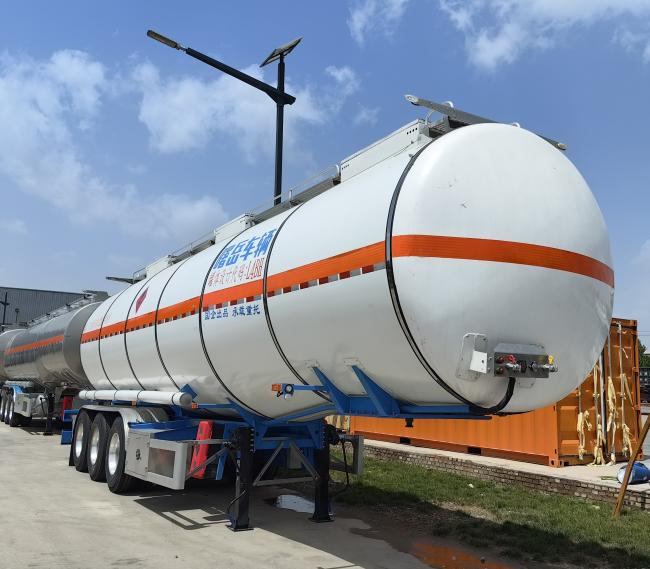

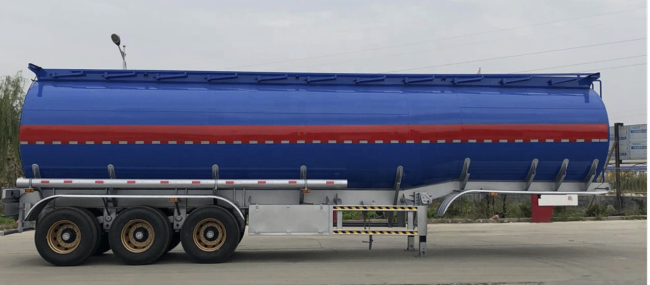

Multi-Type Tankers 30000-50000 Liters Aluminum Alloy oil/water/milk/gasoline Tank Semi trailer fuel tank truck trailers
The tank truck uses an aluminum alloy tank body, which is not easy to rust and does not pollute the oil. Aluminum alloys react chemically with oxygen to form aluminum oxide, which is aluminum rust. Aluminum rust is very thin, only one thousandth of a millimeter thick, but it is very hard and wear-resistant. It adheres tightly to the surface of the aluminum, preventing the aluminum inside from coming into contact with the outside air and preventing it from rusting further. Therefore, the aluminumalloy tank will not contaminate the oil during transportation, and the oil will not produce impurities during transportation.
Specification
Product Name | Tank Semi Trailer | |
Dimension(Lx W x H)（mm） | 11500*2500*3900mm (customizable) | |
Tare weight (kg) | 9800 (depends on final configuration) | |
Max Loading Capacity (kg) | 60000 （customizable) | |
Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) | |
Axles | 13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc | |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) | |
Rim | 9.00-22.5/8.00-20/8.50-20 | |
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional | |
Suspension | Mechanical Suspension Air Suspension(American or Geman) | |
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) | |
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. | |
Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums | |
ABS System | None or installed as your requirement. | |
Electrical system | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) | |
Color | As per customer requirement | |
Spare Wheel Bracket | 1 piece of Spare Wheel Bracket | |
Tool box | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar | |
Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting; | |
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. | |
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. | |
Remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. | |
Pls kindly noted that pictures and configuration information are only for your reference.The final product can be made according to specific requirements. | ||
Details Images
Suspention - Anti-Tire Abrasion
Specially designed anti-Tire abrasion suspension system prevent tire deflection after loading and avoids tires to the maximum extent worn out. and easy to disassemble and maintain
bottom
stronger sturction
Axle suspension and brake system
BPW Fuwa worldwide best axles worki with WABCO brake valve, More effectively brake for safe and save tire cost , Fix quality springs and suspension , support longer service life, save maintain cost
Landing Gear
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C
Leaf Spring
Usually six sets, 10pcs leaf spring , 13mm thickness, 90mm width
Tire
use famous brand , or according to customer
Company Profile
About us
Shandong Wosheng Special Vehicle Manufacturer Co., LTD.
Our Company mainly produce fence semi trailer, lowbed semi trailer , low fence semi trailer , rear dump semi trailer, container flat semi trailer, fuel oil semi trailer, etc all kinds of semi trailer, Our company have more than 20 years produce and exporting experience Quality is firstly, Credit is our base for business, Welcome to know us and build business relationship.
Factory :
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in
appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Certification
We have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
High quality , factory lower price , good service !
Packing and Loading
Container usually us 45 feet
Usually by bulk
FAQ
Q1. Are you a factory or trade company ?
We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.
Q2. Could you accept special design and specification?
Q3. Are you looking for an agent?
Q4. How to control quality?
Q5. What services can we provide?
Q2. Could you accept special design and specification?
Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.
Q3. Are you looking for an agent?
Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. How to control quality?
We set up all process inspection and quality control standard, include raw materials, production process, finished products.
Advanced equipment and standard inspection process ensure the quality.
Q5. What services can we provide?
Accepted Delivery Terms: EXW, FOB, CFR, CIF
