car carrier trailers can be open or enclosed. Most commercial trailers have built-in ramps for loading
and off-loading cars, as well as power hydraulics to raise and lower ramps for stand-alone accessibility

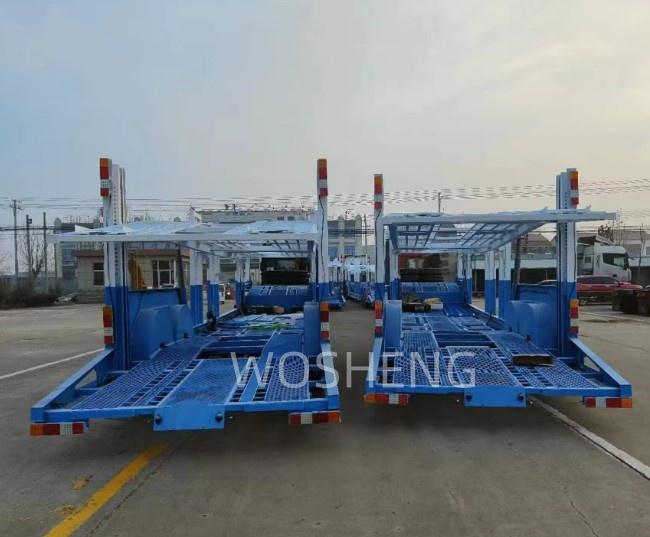

Double Deck Car Carrier Trailer for Car Transport Semi Trailer Produced by Wosheng
Price:
$12,000.00/units 1-1 units
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Wosheng
Product Description
Products Description
2 Axles Car Carrier Semi Trailer
Wosheng Car carrier Trailer is designed to efficiently transport passenger vehicles via truck. Modern
Specification
Type | Car Carrier Trailer with Two Axles | ||
Dimension | Overall Dimension (mm) | Lengthx widthx height:16690x2700x3000 mm approx. | |
(The height will be adjusted according to the tractor specification) | |||
Kingpin Height (mm) | The height will be adjusted according to the tractor specification. | ||
Loading Height | The overall height when full loading based on the cars dimension. | ||
Configuration | Type | Two decks, top front deck and rear deck can be lifting and down separately by hydraulic system | |
Welding standard | All welding are to be done by qualified welder per applicable national standard | ||
Main beam | High tensile steel T700, beam height 300mm, top flange 12mm, middle web 8mm, bottom flange 12mm | ||
Stanchions | Reinforced design | ||
Tire | Type: 11R22.5, 4pcs, Triangle brand from China. | ||
Rim | 8.25x22.5 steel rim, 4 pcs | ||
Axle | ZY brand customized low center type for car carrier trailer, 13Tx 2 sets | ||
Suspension | 2-axles enforced mechanical suspension | ||
Landing Gear | 1 unit, optioned by factory | ||
Kingpin | 2”, bolted type | ||
Brake System | 30/30 type on two axles, WABCO brake valve, with ABS | ||
ABS | 4S/2M ABS | ||
Electrical System | 24V, LED lamp | ||
Spare Tire Carrier | Equip 1 set per chassis | ||
Tool Box | 1 set | ||
Hydraulic System | High quality hydraulic system, power taken off truck head. | ||
(PTO device provide by the client according to the truck head brand. ) | |||
Accessories | Tighten device 16pcs each deck, include tighten tape. | ||
8kg, 2pcs, fire Extinguisher | |||
Painting | All steel shall be sandblasted to SA 2.5 and painted Epoxy zinc phosphate primer and polyurethane finish painting (anti-corrosion), with client Logo. Specification for the Logo provided by the client. | ||
Color | By customer requirement. | ||
Pre-shipping treatment | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. | ||
Details Images
TWIST LOCK
Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs Customers can change the number of locks according to your own needs.
Landing Gear
The warranty period of Chinese brand/JOST landing
gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for
service from -30°C to 120°C.
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.
abrasion.Meanwhile,Easy to disassemble and maintain.
Axle
BPW/FUWA/LEAO Axle optional.
Integrated Advanced Low-Alloy Axle Beam,Whole
Axle Beam No Welding process.Strong Carrying
Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000
kilometers.
Featured Tire
Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance
Brake System
T30/30 Spring brake chamber. WABCO valve,
ABS/EBS system optional. dual line brake pipe.
Company Profile
About us
Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used
semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is
Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production
experience in the trailer industry. Please believe that our professional technology and manufacturing
experience can help your transportation be safer and efficient. we can provide high quality products
and competitive prices.
Factory
Our factory commit to strict quality
control and thoughtful customer
service, our experienced staff can
discuss your requirements at any time
to ensure your full satisfaction. We
not only want to be perfect in
appearance, but also pursue the
delicacy of detail. We have advanced
modern equipment, strong technical
force to ensure customer satisfaction
of products and timely delivery.
Certifications
we have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000
Quality Management Certification. We are also a national high-tech enterprise and have obtained
more than 30 invention patents and utility model patents.
Why Choose Us
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility
model patents. We have attracted customers from all over the world, whether choosing the current
product from our catalog or seeking technical support for your application, you can talk to our
customer service colleagues about your procurement needs.
Packing and Loading
FAQ
Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research
and development, production and sales. Welcome to visit our factory at any time.
Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional
engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.
Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process,
finished products. Advanced equipment and standard inspection process ensure the quality.
Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
