Left Steering Used 336HP HOWO Dump Truck for Transportation in Excellent Condition
Price:
$28,300.00/units 1-4 units
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
SINOTRUK
Product Description
Products Description

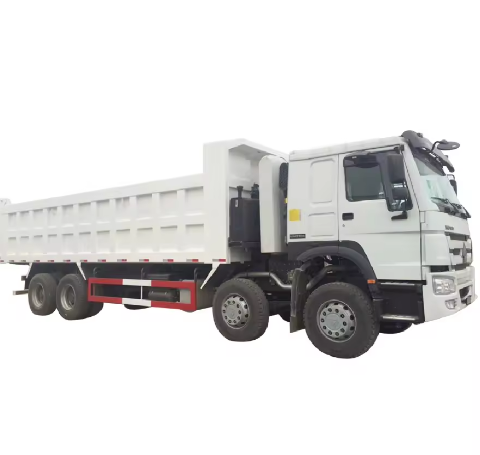

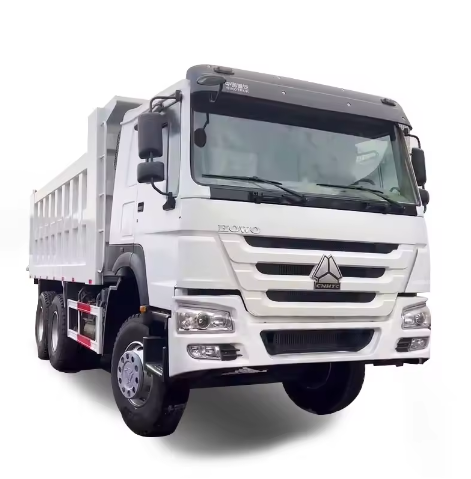

10 Wheel Dump Truck
Sitrak series heavy truck is a domestic product of SINOTRUK based on the original introduction of German Mann TG series technology. It is a joint venture brand jointly launched by sinotruk and German Mann. Sitrak has defined a new standard for domestic high-end heavy trucks with "engine B10 up to 1.5 million km and design service life of gearbox and axle up to 1 million km", and set a new benchmark for high-end heavy truck service with two-year super long service regardless of mileage.
Specification
Truck Brand | SINOTRUK –HOWO | ||||
Cargo body size (L*W*H, mm(mm) | 5400x2300x1400 | ||||
Dimension(Lx W xH)(unloaded)(mm) | 8214x2496x3386 | ||||
Cargo body thickness(mm) | bottom:8mm, side:6mm, | ||||
Overhang(front/rear) (mm) | 1500/1739 | ||||
Approaching angle/Departure angle | 19/26 | ||||
Wheel base (mm) | 3625+1350 | ||||
Max speed(km/h) | 75 | ||||
Curb weight(kg) | 12290 | ||||
Loading Weight(kg) | 30000 | ||||
Fuel tanker capacity (L) | 500L with locking fuel cap | ||||
Fuel consumption(L/100km) | 32 | ||||
Clutch | Single-plate dry clutch Φ420mm | ||||
Engine Model | Model | WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling | |||
(Steyr technology, made in China) | Horse Power, max(kw/rpm) | 336HP 247/2200 | |||
Emission Standard | EUROII | ||||
Transmission | Model | HW 19710,10 forwards and 2 reverse | |||
Brake system | Service brake | Dual circuit compressed air brake | |||
Parking brake | spring energy, compressed air operating on rear wheels | ||||
Auxiliary brake | Engine exhaust brake | ||||
Steering system | Model | ZF8118 hydraulic steering with power assistance | |||
Front axle | HF9 , Steering with double T-cross section beam | ||||
Loading capacity:9000KG | |||||
Rear axle | HC16, Casting axle housing, central double reduction with differential locks between axles and wheels | ||||
Color | Optional | ||||
Tire | 12.00R20 11 pieces | ||||
Electrical system | Operating voltage | 24V,negative grounded | |||
Starter | 24V,7.35KW | ||||
Alternator | 28V,1500W | ||||
Batteries | 2*12V.165Ah | ||||
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. | |||||
Tire | 12.00R22.5 | ||||
Rated towing weight(t) | 30 | ||||
Capacity of the fuel tank | 1100l | ||||
Driving type | 4*2 6*4 | ||||
Packaging Details | By bulk or Ro-Ro or Frame or Container. | ||||
Axle
BPW/FUWA/LEAO Axle optional.Integrated advanced low-alloy axle beam,Whole axle beam no welding process.strong carrying capacity and high bending strength.Axle maintenance-free could reach 3 year/400,000 kilometers.
Landing Gear
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.
Suspension and break system
Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose.
Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Tire
Double Coin / Ling Long / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance.
Packing and Loading
Company Profile
About us
Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.
Factory
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Why Choose Us
Shandong wosheng special vehicle manufacturing co.,ltd
Certifications
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
Exhibition
FAQ
1.Are you a factory or a trading company? We are factory,based in Shandong,China.There are total about 150-200 people in our factory.
2. What services can we provide? Accepted Delivery Terms: EXW,FOB, CFR, CIF Accepted Payment Currency: EUR,USD, CNY Accepted Payment Type:T/T,Western Union,Cash
3.Why should you choose us?
We are trailer manufacturer with more than 30 years' experience.we have professional technician and sales, good after-sale service and prompt response sales team.
