Creeper Connector For Fixing Jack Truss To Hip Truss
Price:
0.5
MOQ:
1000
Delivery Time:
20days
Brand:
Surealong
Product Description
Creeper Connector For Fixing Jack Truss To Hip Truss
APPLICATION:
CreeperConnectors are available in two forms, CC200
for 0 to 12.5° pitch chords, which is suitable for both left
and right hand configurations, and CC200L and CC200R
for 15 to 25° pitch chords, which are left and right hand
configurations respectively.
USES
• CreeperConnectors have
been designed to connect
jack trusses to hip trusses.
ADVANTAGES

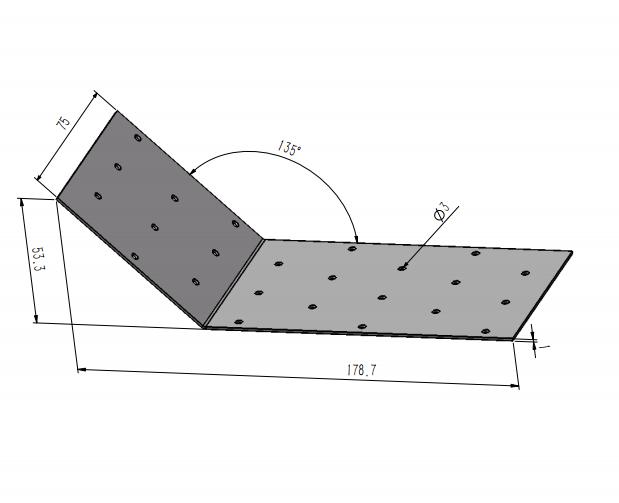

• CreeperConnectors are
metal plates pre-punched to
accommodate nails and bent
to suit roof pitches up to 25°.
• CreeperConnectors may also
be used to connect half trusses
or cut-off trusses to boomerang
girder trusses.
Creeper Connectors can be used to fix both single and double
mitred jack/cut-off trusses to hip/boomerang girder trusses.

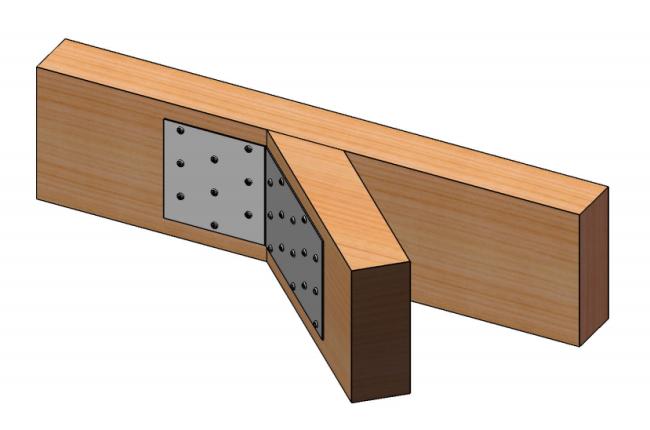

Always fix the shorter leg of a CreeperConnector to the
hip/boomerang chord and the longer leg to the jack/cut-off chord.
CreeperConnectors are to be fixed using 30 x 2.8mm
MiTek galvanized reinforced head nails as specified for each
type of fixing, in addition to 3/75mm flathead nails fixed directly
through the chords.
NOTES:
1. A Type A Connection has a CreeperConnector fastened to
the truss top chords and 3/75mm nails through the truss
bottom chords as shown below.
2. A Type B Connection has CreeperConnectors fastened to both
truss top and bottom chords as shown below.
3. Beneath each CreeperConnector are 3/75mm framing nails
not shown in drawings for clarity.
