High Contrast GOB Indoor Fixed Led Display Screen Modules ODM
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
5-7 working days
Brand:
JC
Product Description
Indoor fixed installation
JCFixed-indoor Advantages
Less weight with 5.5kg per cabinet
Front and back maintenance
Intellgent modules for any area change
Multi pixel pitch with one cabinet
High contrast and unifmority
Offline MessageRelated Case
P3 Indoor Curved LED Display with Front Access

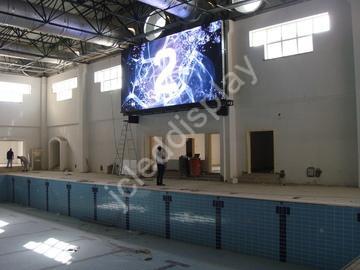

P10 Outdoor LED display in Swimming pool in Oman
P2.5 curved led display with high brigthness
Specifications
| JCfix-in | JCfix-in-1.53 | JCfix-in-1.86 | JCfix-in-2 | JCfix-in-2.5 | JCfix-in-3 |
|---|---|---|---|---|---|
| Pixel pitch(mm) | 1.53 | 1.86 | 2 | 2.5 | 3 |
| Pixel Density(dot/m2) | 427716 | 289247 | 250000 | 160000 | 111111 |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Module Size(W x H x D)mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 192x192mm |
| Module resolution(W x H) | 209x105 | 172x86 | 160x80 | 128x64 | 64x64 |
| Module Weight(Kg) | 0.6kg | 0.6kg | 0.6kg | 0.6kg | 0.6kg |
| Power Consumption per Module(w) | 35 | 33 | 30 | 29 | 29 |
| Diver Mode(Scan) | 1/52 | 1/43 | 1/40 | 1/32 | 1/32 |
| Brightness(cd/m2) | 600~800nit | 900nit | 900nit | 900nit | 1000nit |
| Grey Scale | 16384 | 16384 | 16384 | 16384 | 16384 |
| Refresh Rate(Hz) | ≥2880Hz | ≥2880Hz | ≥2880Hz | ≥2880Hz | ≥2880Hz |
| Cabinet Size(W x H x D)mm | 640x480x63mm | 640x480x63mm | 640x480x63mm | 640x480x63mm | 576x576x63mm |
| Cabinet Weight(Kg/Cabinet) | 5.6Kg | 5.6Kg | 5.6Kg | 5.6Kg | 5.6Kg |
| Max Power Consumption(W/m2) | 550 | 565 | 550 | 520 | 520 |
| Average Power Consumption(W/m2) | 250 | 200 | 180 | 170 | 170 |
| View Angle(H°/V°) | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 |
| Mini View Distance(m) | 1 | 1 | 2 | 2 | 3 |
| Operating Use Temperature(℃) | -10℃~40℃ | ||||
| Storage Use Temperature(℃) | -20℃~50℃ | ||||
| Input Voltage(V) | 100~240V | ||||
| Input Power Frequency(Hz) | 50Hz~60Hz | ||||
| Failure Rate | ＜1/100,1000 | ||||
| Signal Input Format | SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc. | ||||
| Life Time(hrs) | 100,000 | ||||
| IP Level(front/rear) | IP30 /IP30 | ||||
