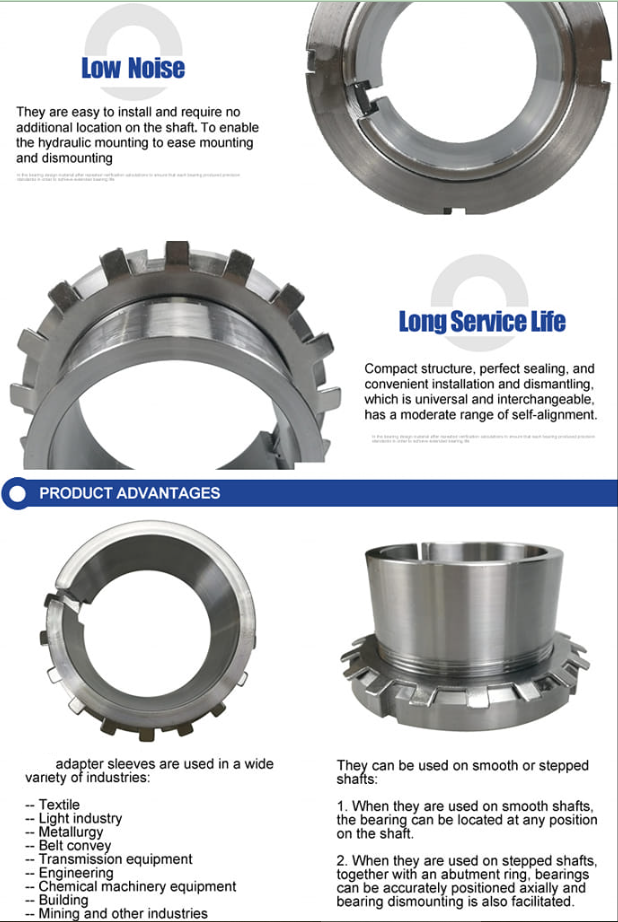

Adapter Sleeves is used for fixing conical self-aligning bearing (self-aligning ball bearing, self-aligning roller bearing) on the
shaft without shoulder with simple structure, reliable operation and convenient change. It is widely used in the belt conveying
equipment in the fields of textile, light industry, paper-making industry, metallurgical industry.

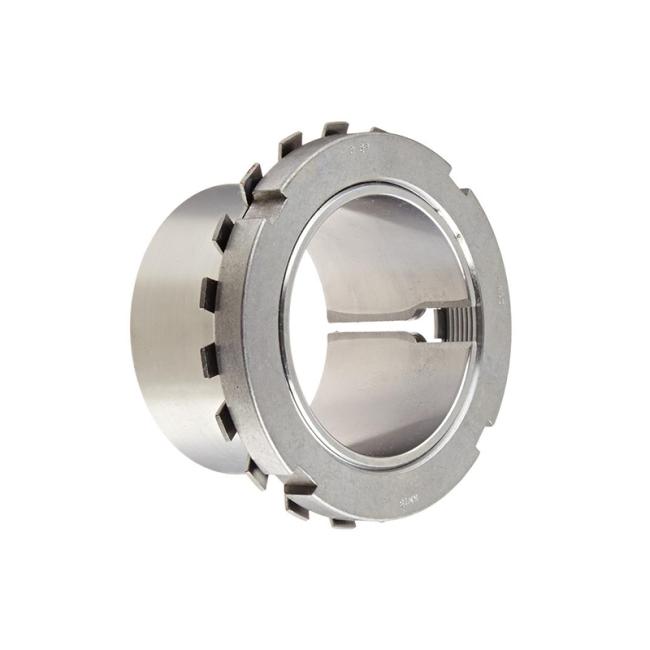

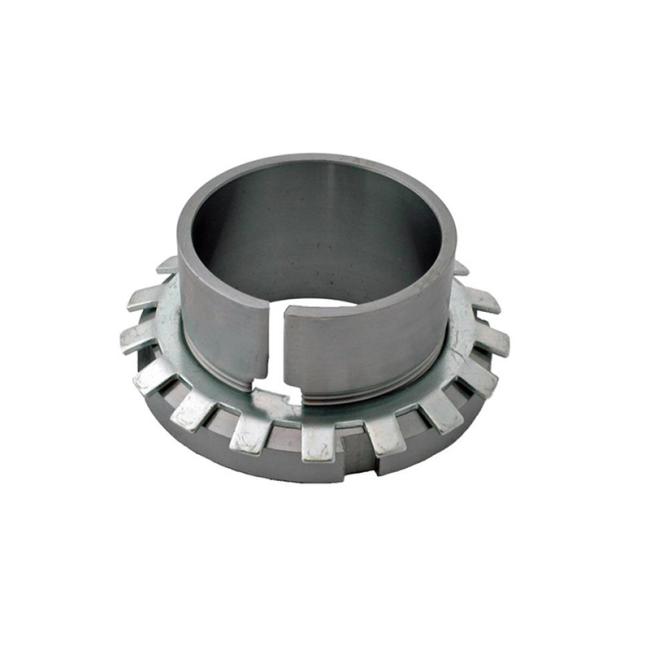

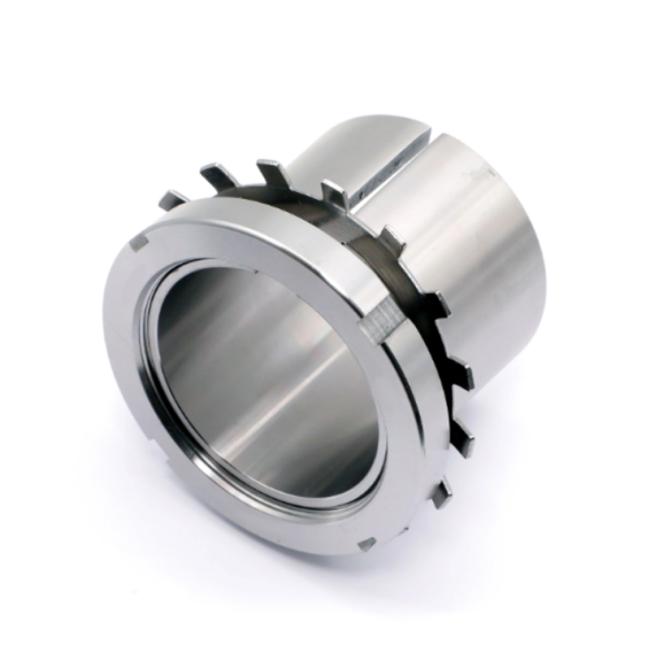

The Adapter Sleeves is composed of tapered adepter bush, locknut, lock washer (or retainer). The Adapter Sleeves with locknut and
lock washer is only replaced with whole set. The parts not from same resource are not changeable.
High precision Adapter Sleeve Bearings H3030 H3032 H3034 H3036 H3036 for Special usage
Price:
$78.99/pieces 2-99 pieces
MOQ:
2 pieces
Delivery Time:
If stock, in 7days or based on your order quantity
Brand:
F.A.G.
Product Description
Product Description
Adapter Sleeves
Specification
model | dimensions(mm) | appropriate bearing(s) | weight(kg) | ||||||||
d | d1 | B1 | d2 | B2 | self-aligning ball bearing | ||||||
H205 | 25 | 20 | 26 | 38 | 8 | 1205K | 0.064 | ||||
H206 | 30 | 25 | 27 | 45 | 8 | 1206K | 0.086 | ||||
H207 | 35 | 30 | 29 | 52 | 9 | 1207K | 0.12 | ||||
H208 | 40 | 35 | 31 | 58 | 10 | 1208K | 0.16 | ||||
H209 | 45 | 40 | 33 | 65 | 11 | 1209K | 0.21 | ||||
H210 | 50 | 45 | 35 | 70 | 12 | 1210K | 0.24 | ||||
H211 | 55 | 50 | 37 | 75 | 12 | 1211K | 0.28 | ||||
H212 | 60 | 55 | 38 | 80 | 13 | 1212K | 0.31 | ||||
H213 | 65 | 60 | 40 | 85 | 14 | 1213K | 0.36 | ||||
H214 | 70 | 60 | 41 | 92 | 14 | 1214K | 0.55 | ||||
H215 | 75 | 65 | 43 | 98 | 15 | 1215K | 0.66 | ||||
H216 | 80 | 70 | 46 | 105 | 17 | 1216K | 0.81 | ||||
H217 | 85 | 75 | 50 | 110 | 18 | 1217K | 0.94 | ||||
H218 | 90 | 80 | 52 | 120 | 18 | 1218K | 1.1 | ||||
H219 | 95 | 85 | 55 | 125 | 19 | 1219K | 1.25 | ||||
H220 | 100 | 90 | 58 | 130 | 20 | 1220K | 1.4 | ||||
H221 | 105 | 95 | 60 | 140 | 20 | 1221K | 1.6 | ||||
H222 | 110 | 100 | 63 | 145 | 21 | 1222K | 1.8 | ||||
Model | Dimension(mm) | Supporting bearing model | ||||||||||
Model | d | d1 | B1 | d2 | Self-aligning ball bearings | Spherical roller bearings | Weight | |||||
H2304 | 20 | 17 | 31 | 32 | 111604 | 0.049 | ||||||
H2305 | 25 | 20 | 35 | 38 | 111605 | 0.087 | ||||||
H2306 | 30 | 25 | 38 | 45 | 111606 | 0.126 | ||||||
H2307 | 35 | 30 | 43 | 52 | 111607 | 0.165 | ||||||
H2308 | 40 | 35 | 46 | 58 | 111608 | 153608 | 0.224 | |||||
H2309 | 45 | 40 | 50 | 65 | 111609 | 503609 | 0.28 | |||||
H2310 | 50 | 45 | 55 | 70 | 111610 | 153610 | 0.362 | |||||
H2311 | 55 | 50 | 59 | 75 | 111611 | 153611 | 0.42 | |||||
H2312 | 60 | 55 | 62 | 80 | 111612 | 153612 | 0.481 | |||||
H2313 | 65 | 60 | 65 | 85 | 111613 | 153613 | 0.557 | |||||
H2314 | 70 | 60 | 68 | 92 | 111614 | 153614 | 0.897 | |||||
H2315 | 75 | 65 | 73 | 98 | 111615 | 153615 | 1.05 | |||||
H2316 | 80 | 70 | 78 | 105 | 111616 | 153616 | 1.28 | |||||
H2317 | 85 | 75 | 82 | 110 | 111617 | 153617 | 1.45 | |||||
H2318 | 90 | 80 | 86 | 120 | 111618 | 153618 | 1.69 | |||||
H2319 | 95 | 85 | 90 | 155 | 111619 | 153619 | 1.92 | |||||
H2320 | 100 | 90 | 97 | 130 | 111620 | 153620 | 2.15 | |||||
H2322 | 110 | 100 | 105 | 145 | 111622 | 153622 | 2.74 | |||||
H2324 | 120 | 110 | 112 | 155 | 153624 | 1536224 | 3.19 | |||||
H2326 | 130 | 115 | 121 | 165 | 153626 | 1536226 | 4.6 | |||||
H2328 | 140 | 125 | 131 | 180 | 153628 | 1536228 | 5.55 | |||||
H2330 | 150 | 135 | 139 | 195 | 153630 | 1536230 | 6.63 | |||||
H2332 | 160 | 140 | 147 | 210 | 153632 | 1536232 | 9.14 | |||||
H2334 | 170 | 150 | 154 | 220 | 153634 | 1536234 | 10.2 | |||||
H2336 | 180 | 160 | 161 | 230 | 153636 | 1536236 | 11.3 | |||||
H2338 | 190 | 170 | 169 | 240 | 153638 | 1536238 | 12.6 | |||||
H2340 | 200 | 180 | 176 | 250 | 153640 | 1536240 | 13.9 | |||||
H2344 | 220 | 200 | 186 | 280 | 153644 | 1536244 | 16.7 | |||||
H2348 | 240 | 220 | 199 | 300 | 153648 | 1536248 | 19.7 | |||||
H2352 | 260 | 240 | 211 | 330 | 153652 | 1536252 | 24.2 | |||||
H2356 | 280 | 260 | 224 | 350 | 153656 | 1536256 | 27.2 | |||||
