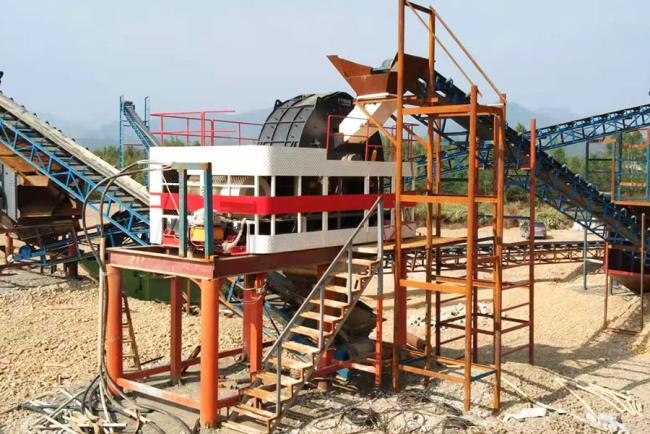

Calcite to M-Sand Horizontal Shaft Impact Crusher for Road Base Gravel Production
Calcite to M-Sand Horizontal Shaft Impact Crusher for Road Base Gravel Production
Features:
1, Saving overall investment:
From the perspective of the overall investment of the sand and gravel processing production line, the horizontal shaft impact crusher has the characteristics of large crushing ratio and high production efficiency, which can reduce the use of other auxiliary crushing equipment, such as cone crusher, impact crusher, etc.
2, In addition, its excellent particle shape can reduce the investment in subsequent shaping equipment.
3,Therefore, under the condition of meeting the same production scale and product quality requirements, the horizontal shaft impact crusher can reduce the number of equipment by optimizing the process flow, thereby saving equipment procurement investment to a certain extent.
| Ideal for: River pebbles Granite and basalt Limestone Secondary or tertiary crushing Gravel and sand production lines |
Other typical use cases:
|
Applications:
No investment required in primary crushing equipment.
| Product Name | Capacity | Power | Input material | Output function | End Users |
| Horizontal Shaft Impactor Crusher | 300 t/h | 800kw | Calcite |
Manufactured Sand m-sand machine-made sand |
for Glass raw materials plant, construction sand and gravel processing plant |
Technical Parameters:
| Model | Max. feed size(mm) | Capacity(t/h) | Product size(mm) | Output(t/h) | Motor power(kw) | Dimensions(mm) |
| PW2006 | ≤70 | 40-50 | 0-5mm | 25-30 | 90 | 360x150x207 |
| 5-31.5mm | 10-15 | |||||
| PW2008 | ≤80 | 60-80 | 0-5mm | 40-55 | 160 | 362x191x210 |
| 5-31.5mm | 15-20 | |||||
| PW3008 | ≤90 | 90-110 | 0-5mm | 55-65 | 250 | 385x242x255 |
| 5-31.5mm | 20-30 | |||||
| PW3308 | ≤100 | 120-140 | 0-5mm | 70-90 | 315 | 432x296x266 |
| 5-31.5mm | 30-40 | |||||
| PW3608 | ≤100 | 160-200 | 0-5mm | 110-130 | 400 | 518x318x312 |
| 5-31.5mm | 30-40 | |||||
| PW4010 | ≤100 | 300-400 | 0-5mm | 200-250 | 2x315(400) | 704x418x370 |
| 5-31.5mm | 60-80 |
Support and Services:
Our equipment offers the following technical support and services:
- Installation and commissioning assistance
- Regular maintenance and inspection
- Troubleshooting and problem resolution
- Spare parts and wear materials supply
- Operational training and support
- Upgrades and retrofits to improve performance and efficiency
