250 t/h Limestone Horizontal Shaft Impact Crushing Machine for M Sand Production Equipment
250t/h Limestone Horizontal Shaft Impact Crushing Machine for M Sand Production Equipment
Features:
1, Saving investment:
The horizontal shaft impact crusher has the characteristics of large crushing ratio and high production efficiency, which can reduce the use of primary crushing equipment.
2, In addition, its excellent particle shape can reduce the investment in subsequent shaping equipment.
3, Adapting to market:
From dry to wet technology, the manufactured sand segment is gearing for the next level of growth.
Rising demand from the traditional and retails segment will create a conducive environment for m-sand, and propel its growth in the aggregate industry.
Rapid urbanization and increased demand for construction materials including sand as a crucial ingredient is driving the aggregator segment growth. While lack of availability of river sand triggered the evolution of m-sand, fast paced infrastructure projects propelled it further.
Interestingly, the retail market is also shifting towards m-sand. Many construction players in the real market are opting for manufactured sand for plaster. The enhanced quality provides finer grades that doesn’t pose a challenge when used for plastering.
Technical Parameters:
| Model | Max. feed size(mm) | Capacity(t/h) | Product size(mm) | Output(t/h) | Motor power(kw) | Dimensions(mm) |
| PWS2006 | ≤80 | 80-100 | 0-5mm | 20-60 | 90 | 295x246x318 |
| 5-31.5mm | 30-70 | |||||
| PWS2008 | ≤100 | 120-160 | 0-5mm | 30-90 | 160 | 331x284x361 |
| 5-31.5mm | 60-120 | |||||
| PWS3008 | ≤100 | 180-220 | 0-5mm | 40-125 | 250 | 461x296x396 |
| 5-31.5mm | 85-170 | |||||
| PWS3308 | ≤120 | 240-280 | 0-5mm | 50-160 | 315 | 465x326x416 |
| 5-31.5mm | 100-210 | |||||
| PWS3608 | ≤120 | 320-400 | 0-5mm | 80-220 | 400 | 475x360x446 |
| 5-31.5mm | 160-300 | |||||
| PWS4010 | ≤150 | 800-1000 | 0-5mm | 300-500 | 2x315(400) | 704x418x510 |
| 5-31.5mm | 400-600 |
Applications:
No investment required in primary crushing equipment
| Product Name | Capacity | Power | Input material | Output function | End Users |
| Horizontal Shaft Impactor Crusher | 250 t/h | 630kw | Limestone | M sand | for Construction sand and gravel processing plant |
Support and Services:
Our equipment offers the following technical support and services:
- Installation and commissioning assistance
- Regular maintenance and inspection
- Troubleshooting and problem resolution
- Spare parts and wear materials supply
- Operational training and support
- Upgrades and retrofits to improve performance and efficiency
FAQ:
Q1: What is the certification of Yuantong Secondary Cone Crusher?
A1: Yuantong Secondary Cone Crusher is certified with ISO.
Q2: Where is Yuantong Secondary Cone Crusher manufactured?
A2: Yuantong Secondary Cone Crusher is manufactured in China.
Q3: What is the minimum order quantity for Yuantong Secondary Cone Crusher?
A3: The minimum order quantity for Yuantong Secondary Cone Crusher is 1 set.
Q4: What are the payment terms for Yuantong Secondary Cone Crusher?
A4: The payment terms for Yuantong Secondary Cone Crusher are L/C and T/T.
Packing and Shipping:

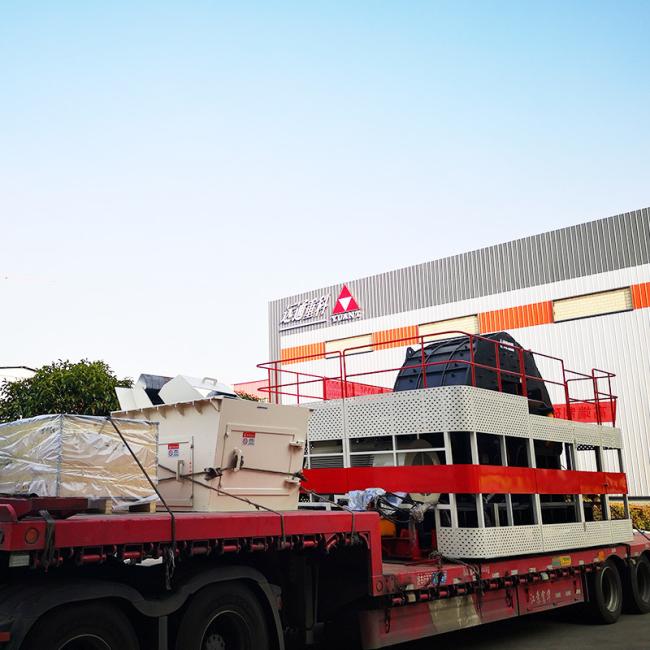

Packaging: The equipment will be packaged securely in a plywood box to ensure safe transportation.
Shipping: We offer worldwide shipping with a variety of carriers.
Shipping costs will vary based on the destination and shipping method selected. Please contact us for a shipping quote.
