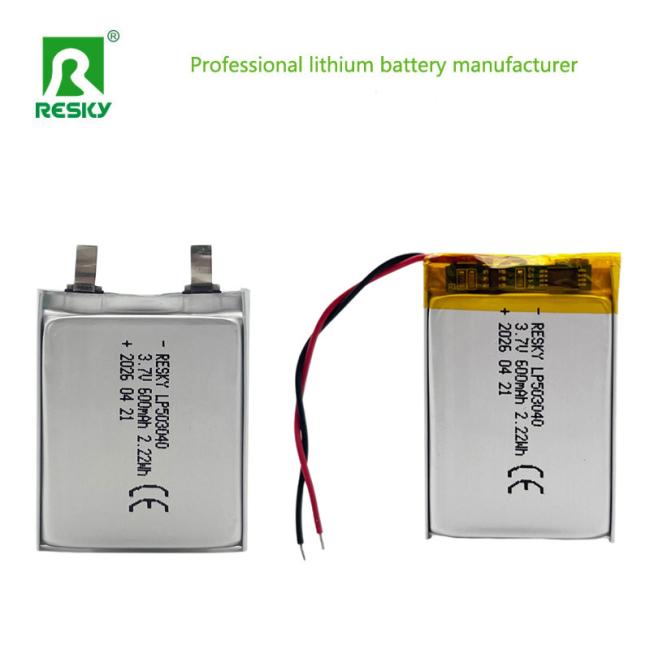

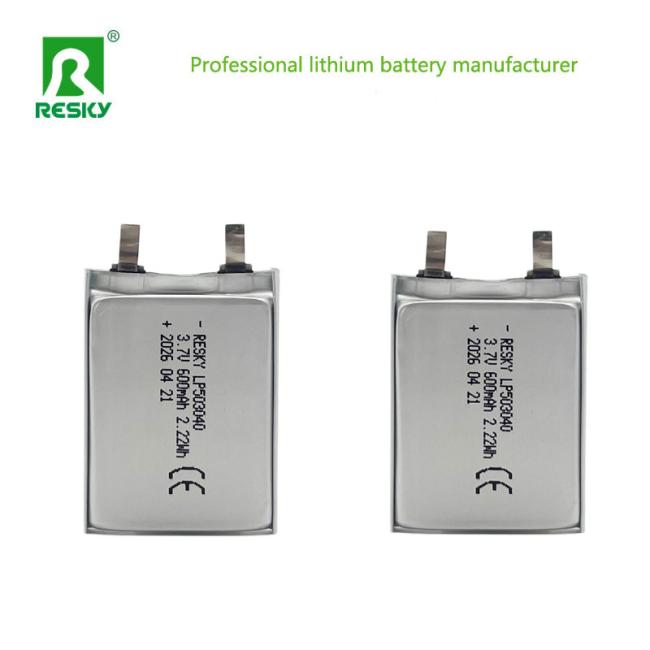

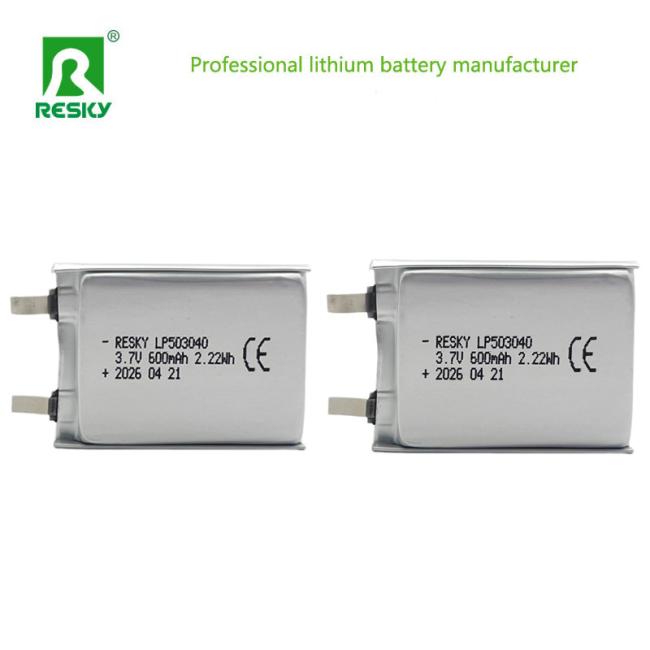

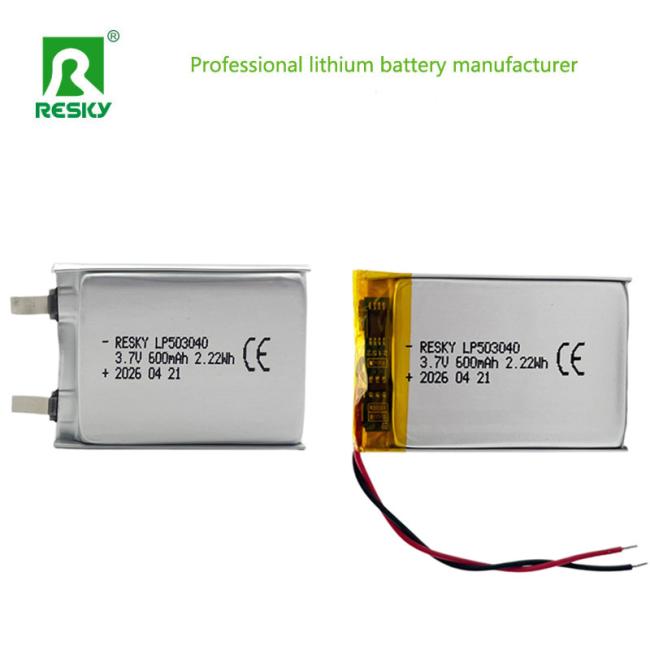

503040 Lithium Polymer Battery Cell 600mAh 3.7V for Smart Watch Compact 5x30x40mm
| Item | Specifications |
|---|---|
| Batteries | 3.7V 600mAh LiPo Battery |
| Charge Voltage | 4.2V |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 600mAh (0.2C Discharge) |
| Charge Current | Standard Charging: 0.5C Rapid Charge: 1.0C |
| Standard Charging Method | 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C |
| Charging Time | Standard Charging: 2.75 hours (Ref.) Rapid Charge: 2 hours (Ref.) |
| Max Charge Current | 0.5C |
| Max Discharge Current | 1.0C |
| Discharge Cut-off Voltage | 2.5V ±0.25V (0.2C) |
| Operating Temperature | Charging: 0°C ~ 45°C Discharging: 0°C ~ 45°C |
| Storage Temperature | -10°C ~ +45°C |
| Dimensions | Length: 40±2mm (excluding tabs) Width: 30±0.5mm Thickness: 5±0.2mm |
| Drop Test | 1 meter drop onto concrete ground twice - No fire, no leakage |
| Cycle Time | ≥500 cycles |
Main advantages:
Compact size and lightweight:
High nominal voltage: 3.7V operating voltage, compatible with most low-power electronic circuits, no additional boost required.
High energy density: Ternary material system enables energy density of over 200Wh/kg.
Good cycle life: Supports approximately 300 charge-discharge cycles.
Good safety: Low risk of polymer electrolyte leakage; with a protection board, overcharge, over-discharge, and short-circuit protection are provided. Stable discharge performance: Low internal resistance, supports standard/maximum discharge current of 0.3A–0.6A, suitable for low to medium rate applications.
Main Applications:
Bluetooth headsets and TWS earphones
Smart wearable devices: such as smart bracelets, smart rings, health monitors
Miniature IoT devices: such as GPS trackers, shared bicycle lock modules, asset tags
Portable audio devices: small Bluetooth speakers, voice recorders
Medical electronic devices: such as thermometers, blood glucose meters, portable diagnostic instruments
