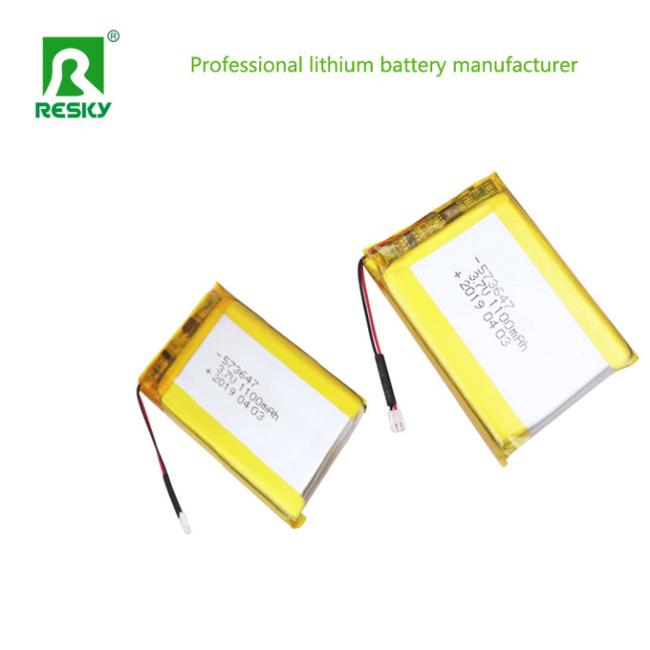

Prismatic Pouch Lithium Polymer Battery Cell 553450 3.7V 1100mAh Power Storage Batteries
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
7-10days
Brand:
RESKY
Product Description
Prismatic Pouch Lithium Polymer Battery Cell 553450 3.7V 1100mAh Power Storage Batteries
Product Specifications
| NO. | Items | Specifications |
|---|---|---|
| 1 | Batteries | 3.7V 1100mAh LiPo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 1100mAh @ 0.2C Discharge |
| 5 | Charge current | Standard Charging: 0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C |
| 7 | Charging time | Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.) |
| 8 | Max. charge current | 1.0C |
| 9 | Max. discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V ±0.25V (0.2C) |
| 11 | Operating temperature | Charging: 0°C ~45°C Discharging: 0°C ~45°C |
| 12 | Storage temperature | -10°C ~ +45°C |
| 13 | Dimension | Length: 50±2mm (excl. tabs) Width: 34±0.5mm Thickness: 5.5±0.2mm |
| 14 | Drop Test | 1m drop onto concrete twice - No fire, no leakage |
| 15 | Cycle time | ≥500 cycles |
Applications
Consumer Electronics:
- Smartphones and Tablets: Primary power source enabling long battery life in compact designs
- Wearable Devices: Powers smartwatches and fitness trackers with minimal weight
- Cameras: Supports high-energy operations in digital cameras
Electric Vehicles (EVs) and Drones:
- Electric Scooters/Bicycles: High energy density ideal for electric transportation
- Drones: Enables long flight durations and stable performance
- Electric Cars: Used in some hybrid and smaller EV models for packaging flexibility
