Rechargeable Lithium Polymer Battery Cell 505060 3.7V 7.4v 2000mAh For Beauty Instrument
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
7-10days
Brand:
RESKY
Product Description
Rechargeable Lithium Polymer Battery Cell 505060 3.7V 1800mAh For Beauty Instrument
High-performance lithium polymer battery cell designed specifically for beauty instruments, offering reliable power with advanced safety features.
Technical Specifications
| NO. | Items | Specifications |
|---|---|---|
| 1 | Batteries | 3.7V 1800mAh LiPo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 1800mAh @ 0.2C Discharge |
| 5 | Charge current | Standard Charging: 0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C |
| 7 | Charging time | Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.) |
| 8 | Max. charge current | 1.0C |
| 9 | Max. discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V±0.25V (0.2C) |
| 11 | Operating temperature | Charging: 0°C ~45°C Discharging: 0°C ~45°C |
| 12 | Storage temperature | -10°C ~ +45°C |
| 13 | Dimension | Length: 60±2mm (excluding tabs) Width: 50±0.5mm Thickness: 5±0.2mm |
| 14 | Drop Test | Dropped from 1m height twice onto concrete - no fire, no leakage |
| 15 | Cycle time | ≥500 cycles |
LiPo Battery Safety Guidelines
Proper Storage Conditions
- Temperature: Store between 15°C to 25°C (59°F to 77°F) to prevent accelerated aging
- Humidity: Keep in dry, moisture-free environment to prevent corrosion
- Container: Use fire-resistant bags or containers for additional safety
Proper Usage
- Voltage Matching: Ensure battery matches device requirements
- Charging: Use dedicated LiPo chargers with correct voltage/current
- Monitoring: Avoid overcharging/discharging and monitor temperature

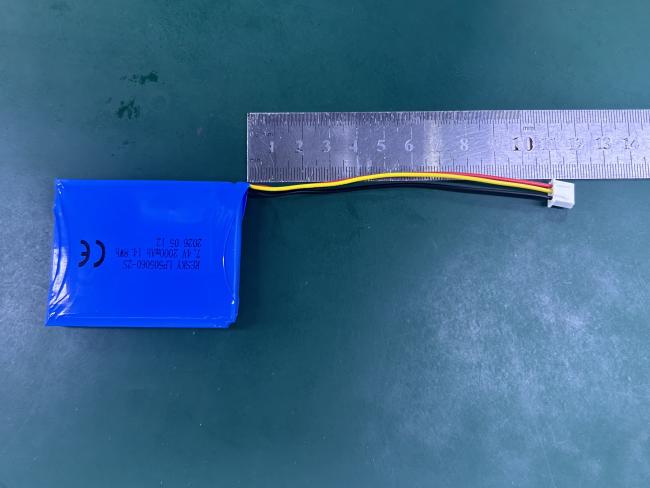

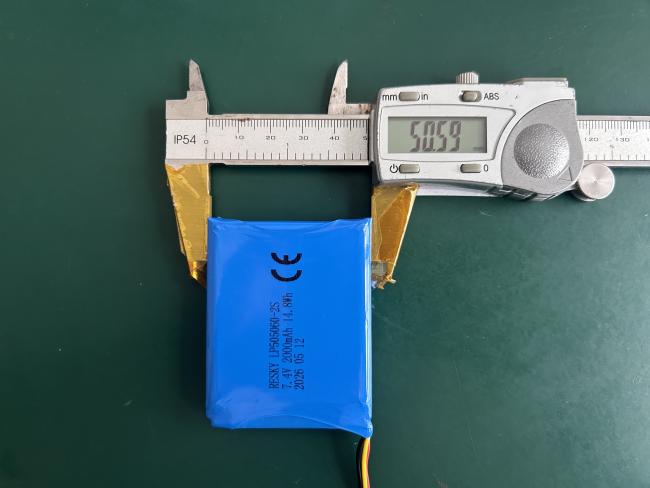

Measurements for battery pack:
