Portable 701230 3.7v 230mAh Rechargeable Lithium Polymer Battery for Small Electronic Devices

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 7-10days

Brand: RESKY

Product Description

Portable 701230 3.7v 230mAh Rechargeable Lithium Polymer Battery for Small Electronic Devices

Product Specifications

Attribute	Value
Power	0.85wh
Capacity	230mAh
Electrolyte	Li(Nicomn)O2
Cycle Life	500cycles
Warranty	12months
Shipping	UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Lead Time	Within 3-10 Workdays
Size	52030mm
Charging cut-off voltage	4.2v
Discharging cut-off voltage	2.5V

Technical Details

NO.	Items	Specifications
1	Batteries	3.7v 230mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	230mAh 0.2C Discharge
5	Charge current	Standard Charging: 0.2C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V±0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 30±0.5mm (not including tabs) Width: 12±0.5mm Thickness: 7±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Applications

Consumer Electronics:

Smartphones and Tablets: Li-poly batteries are the primary power source for these devices, enabling long battery life and compact designs.
Wearable Devices: From smartwatches to fitness trackers, Li-poly batteries provide the necessary power for extended use without adding significant weight.
Cameras: Digital cameras, especially mirrorless and DSLR models, often use Li-poly batteries to support high-energy operations like video recording.

Renewable Energy Systems:

Energy Storage Systems: Li-poly batteries are used in some energy storage systems to store excess energy generated by renewable sources like solar and wind.

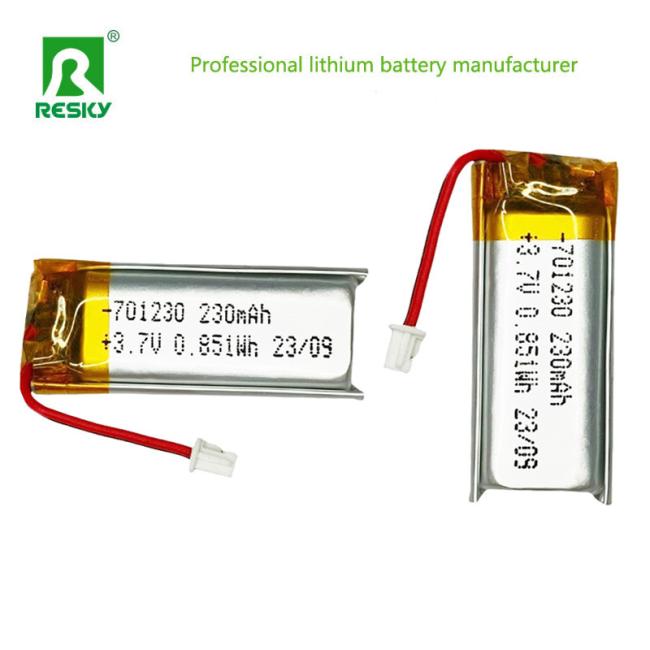

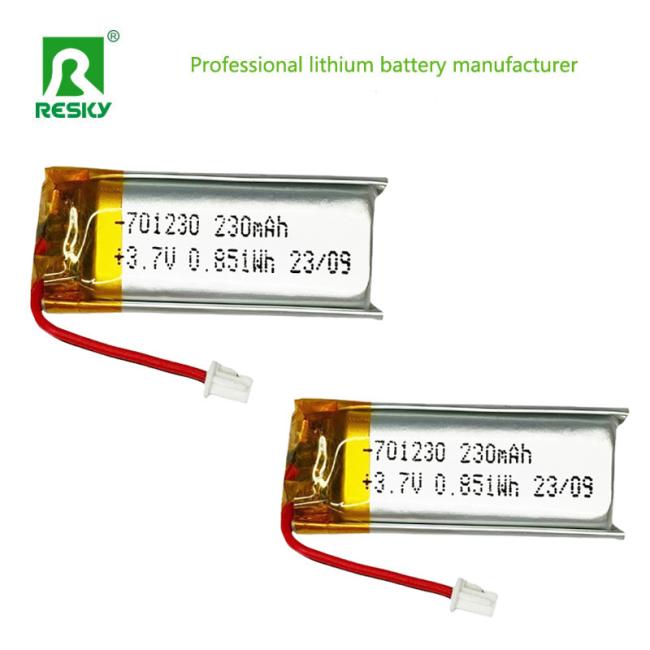

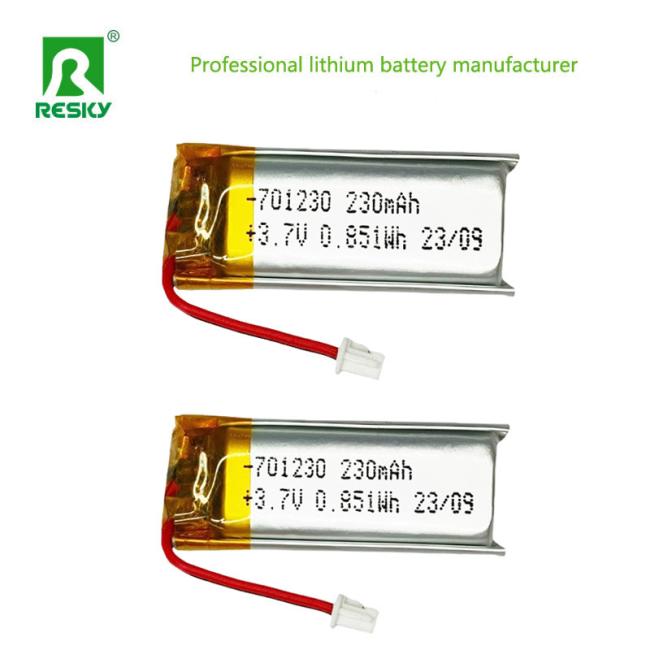

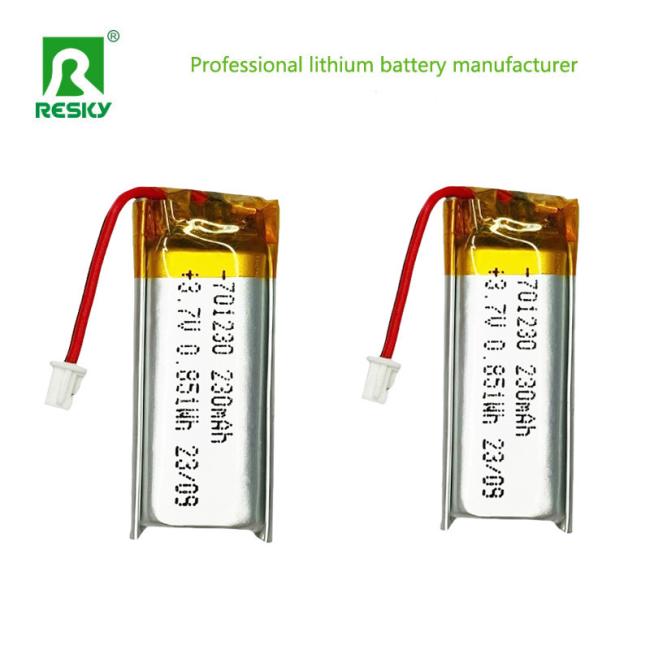

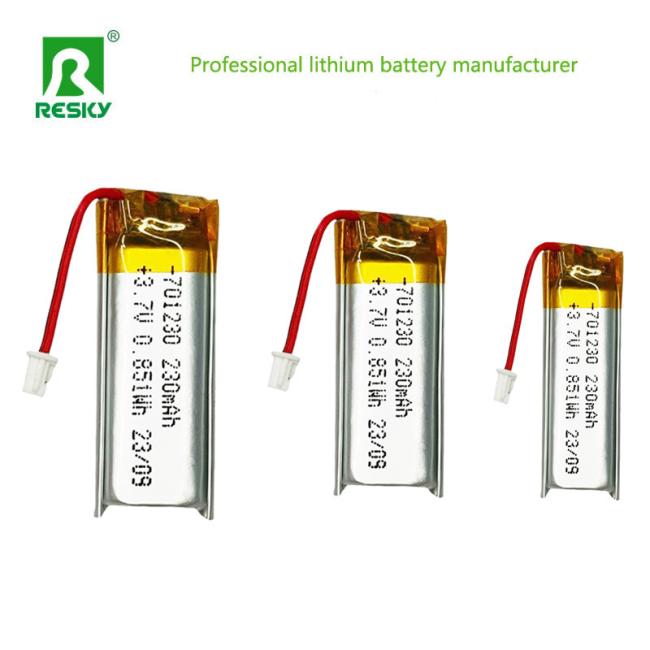

Product Images
