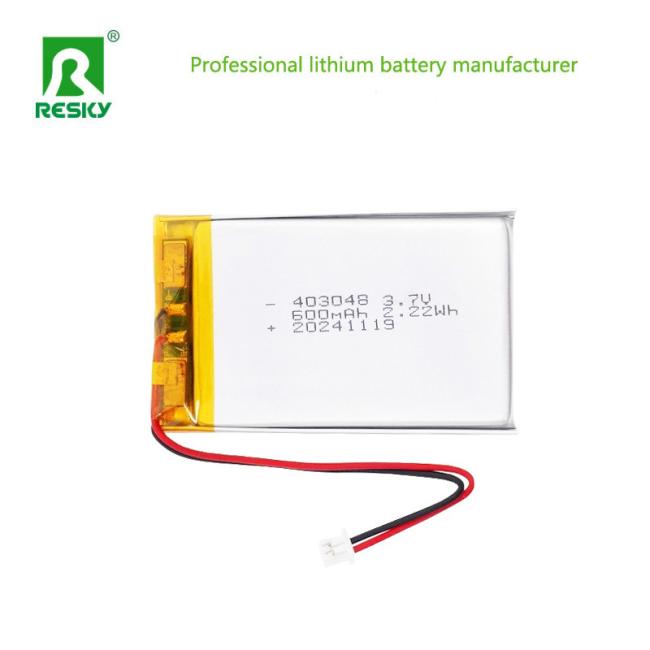

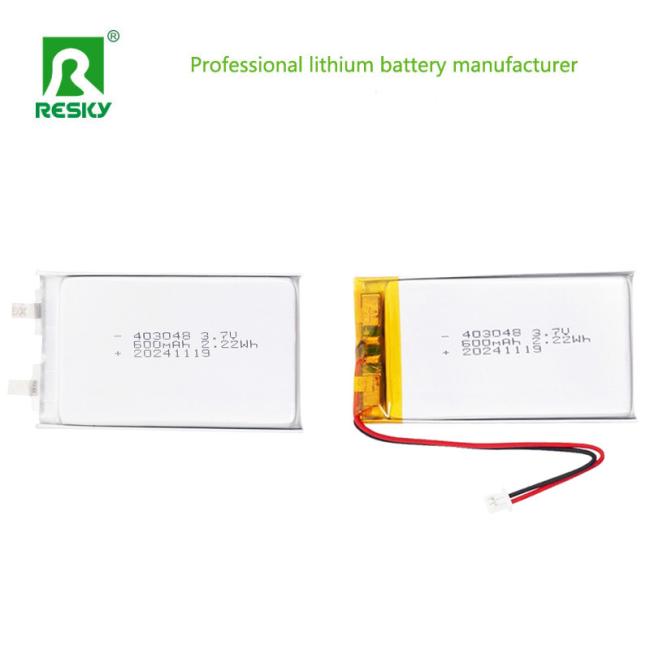

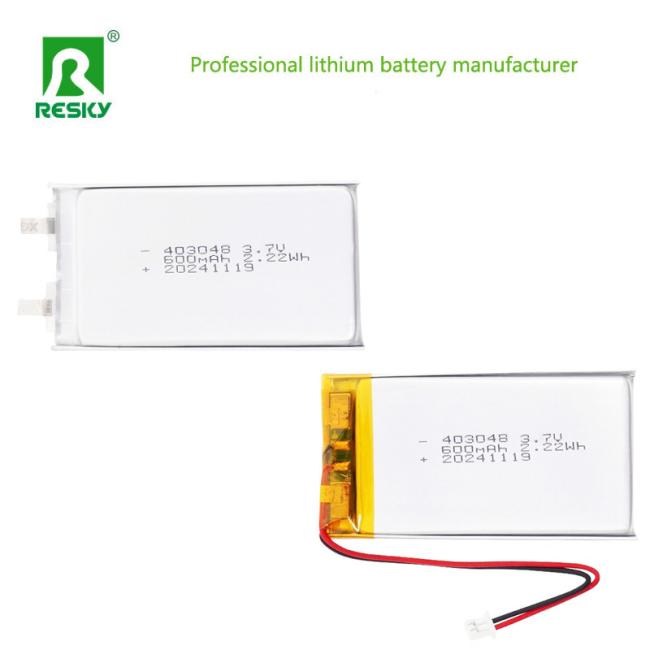

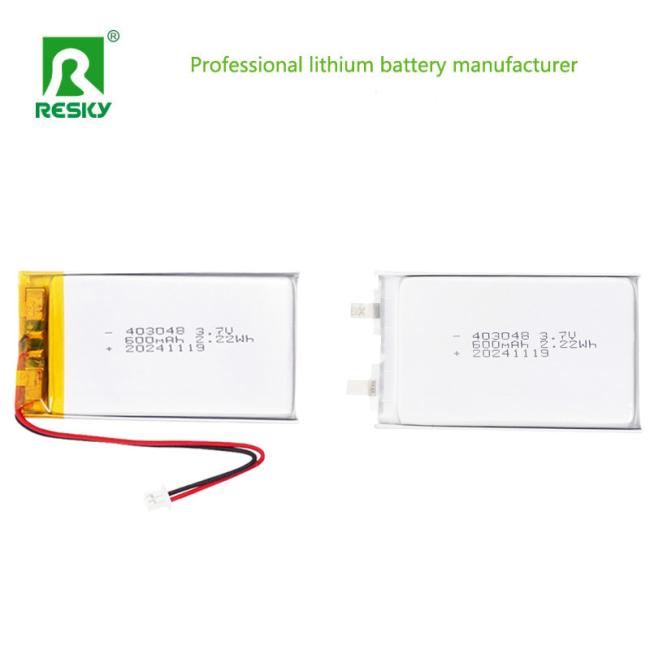

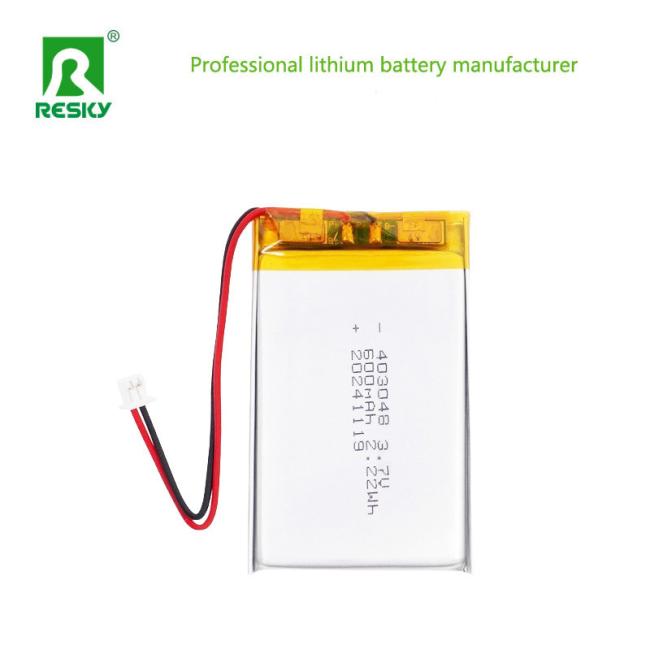

Lithium Ion Polymer Battery 403048 3.7V 600mAh 2.22wh Lipo Battery Cell For Pet Gps Tracker
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
7-10days
Brand:
RESKY
Product Description
Lithium Ion Polymer Battery 403048 3.7V 600mAh 2.22wh Lipo Battery Cell For Pet GPS Tracker
Product Specifications
| Attribute | Value |
|---|---|
| Model NO. | LP403048 |
| Nominal Capacity | 600mAh |
| Charging Current | 0.2c |
| Continuous Discharging Current | 0.5c |
| Max Discharging Current | 1c |
| Weight | 11g |
| MOQ | 100PCS |
| Lead Time | 5-10 workdays |
| Connector | Jst, Molex.... |
| Specification | 4*30*48mm |
Technical Details
| NO. | Items | Specifications |
|---|---|---|
| 1 | Batteries | 3.7v 600mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 600mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging: 0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging: 2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 0.5C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0°C ~45°C Discharging: 0°C ~45°C |
| 12 | Storage temperature | -10°C~ +45°C |
| 13 | Dimension | Length: 48±2mm (not including tabs) Width: 30±0.5mm Thickness: 4±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | Cycle time | ≥500times |
Applications
Consumer Electronics:
- Smartphones and Tablets: Li-poly batteries are the primary power source for these devices, enabling long battery life and compact designs.
- Wearable Devices: From smartwatches to fitness trackers, Li-poly batteries provide the necessary power for extended use without adding significant weight.
- Cameras: Digital cameras, especially mirrorless and DSLR models, often use Li-poly batteries to support high-energy operations like video recording.
Aerospace:
- Portable Electronics: Li-poly batteries are used in various devices for their high energy density and reliability.
- Satellites and Spacecraft: In aerospace applications, Li-poly batteries are carefully engineered to meet strict safety and performance requirements.
Production Process
Positive electrode material preparation:
Using ternary materials (composite oxides of nickel, cobalt and manganese) as active materials, positive electrode plates are made through stirring, coating and other processes.
Negative electrode materials:
Carbon materials such as graphite are usually used, and negative electrode plates are made through coating and rolling.
Electrolyte:
It is a mixture of lithium salt (such as lithium hexafluorophosphate) and organic solvent, which directly affects the performance of the battery.
Key production steps:
- Slurry preparation: The positive and negative active materials are mixed with the binder to form a uniform slurry, which is then coated on metal foil (such as copper foil or aluminum foil) after being stirred by a vacuum mixer without bubbles.
- Pole plate processing: The coated pole plates are dried, rolled (densified) and cut to form pole plates of specific sizes.
- Battery assembly: The positive and negative pole plates, separators, etc. are assembled into a battery cell and injected with electrolyte.
- Formation and testing: Activate battery performance through charge and discharge cycles and screen out unqualified products.
