Lithium Polymer Battery Cell 604050 3.7v 1500mAh 5.55wh Rechargeable Lipo Battery Pack
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
7-10days
Brand:
RESKY
Product Description
Lithium Polymer Battery Cell 604050 3.7v 1500mAh 5.55wh Rechargeable Lipo Battery Pack
Technical Specifications
| NO. | Items | Specifications |
|---|---|---|
| 1 | Batteries | 3.7v 1500mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 1500mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V 0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0°C ~45°C Discharging:0°C ~45°C |
| 12 | Storage temperature | -10°C~ +45°C |
| 13 | Dimension | Length: 50±2mm (not including tabs) Width:40±0.5mm Thickness:6±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | Cycle time | ≥500times |
Product Features
- Compact Dimensions: 60.0mm (L) × 40.0mm (W) × 50.5mm (H), ideal for embedded devices
- Lightweight: Approximately 15g, suitable for portable applications
- Standard Voltage: 3.7V nominal voltage compatible with most consumer electronics
- Medium Capacity: 1500mAh nominal capacity for extended operation
- Advanced Design: Polymer electrolyte and soft-pack aluminum-plastic film package makes it 20% lighter than liquid lithium batteries
- Enhanced Safety: Overcharge/over-discharge protection, passed rigorous safety tests
- Flexible Form: Supports bendable design (up to 90°) and custom shapes
- Extended Life: Up to 5,00 cycles under optimal conditions (85% depth of discharge)
Applications
- Wireless Communication: Wireless landlines, intercoms
- Navigation & Smart Devices: Electronic navigation systems, Bluetooth speakers, thermometers
- Consumer Electronics: Beauty devices, medical equipment, shavers, fingerprint locks
- Industrial Equipment: Industrial instruments, automation systems, security monitoring
- Toys & Models: RC models, wireless remote-controlled toys

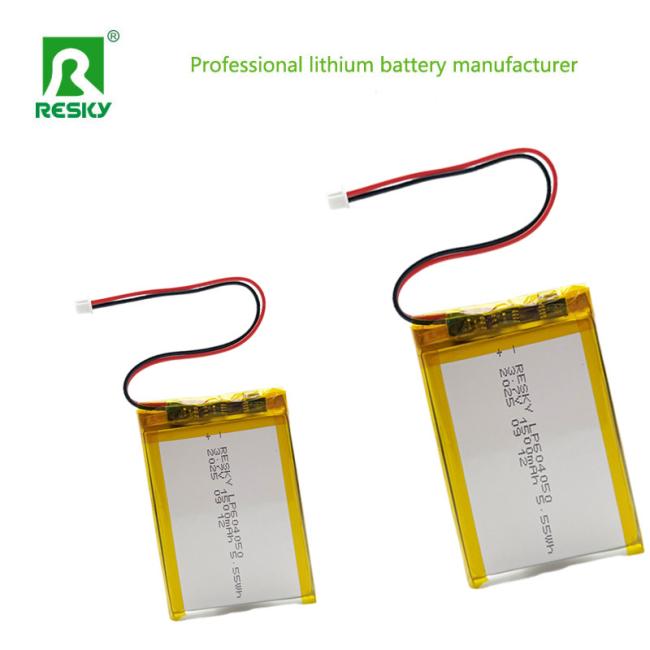

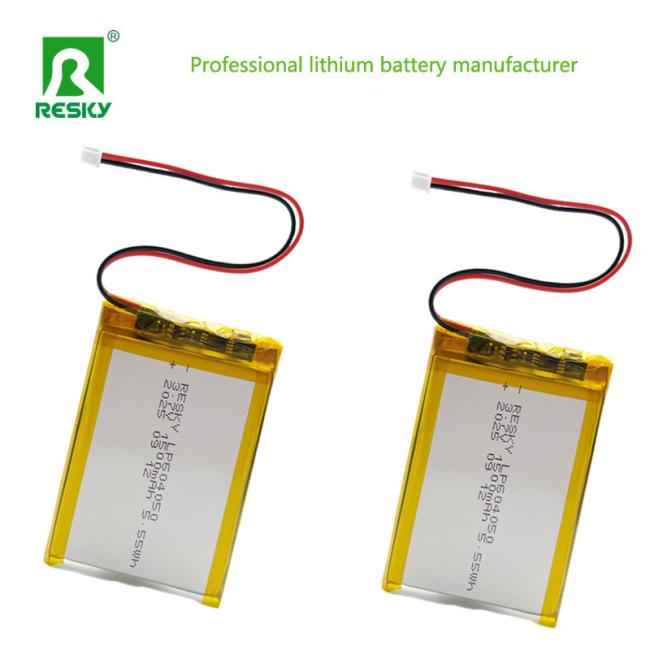

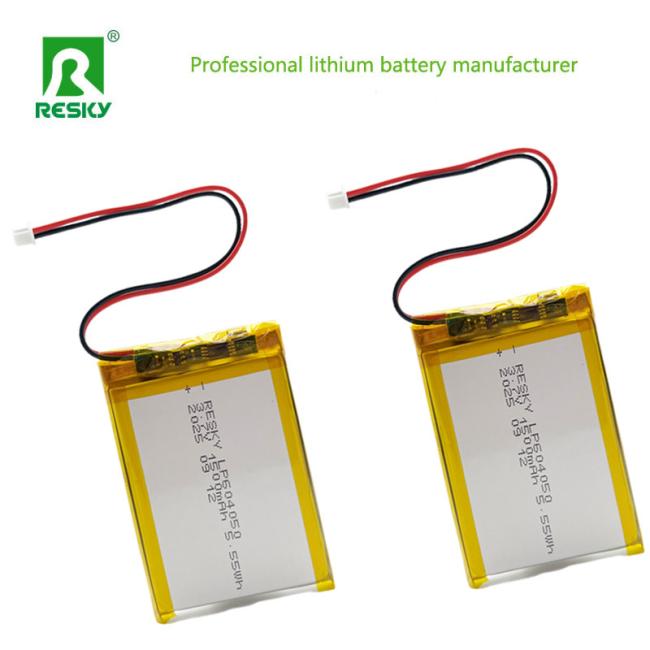

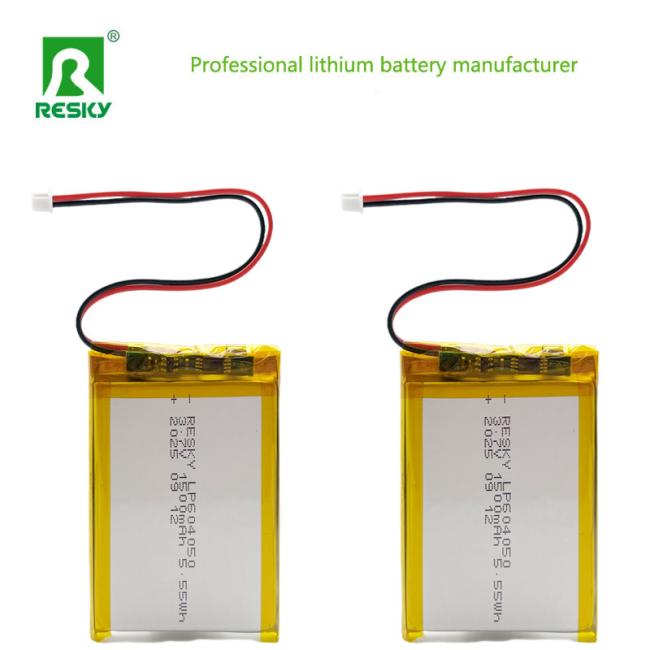

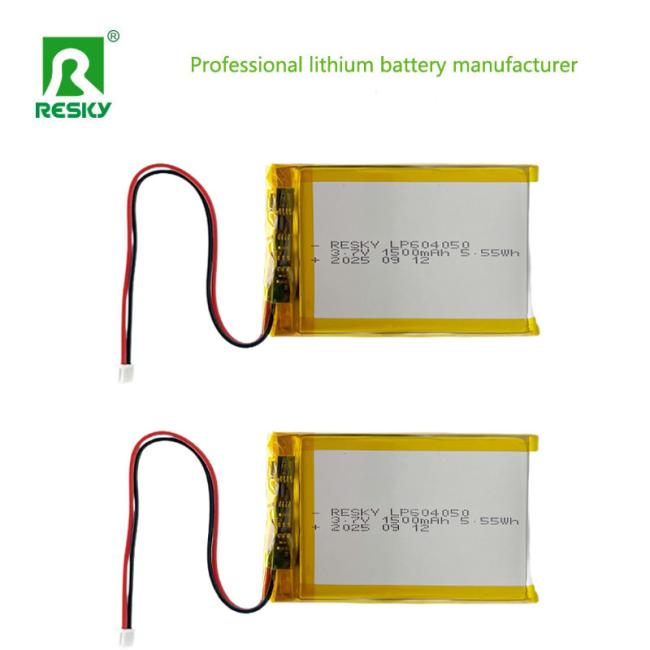

Product Images
