Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
7-10days
Brand:
RESKY
Product Description
Product Overview
Rechargeable Lithium Battery 6060100 3.7V 5000mAh 18.5Wh Power Li-polymer Battery Pack
Technical Specifications
| Item | Specification |
|---|---|
| Battery Type | 3.7V 5000mAh Li-polymer |
| Charge Voltage | 4.2V |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 5000mAh (0.2C Discharge) |
| Charge Current | Standard: 0.5C Rapid: 1.0C |
| Standard Charging Method | 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C |
| Charging Time | Standard: 2.75 hours Rapid: 2 hours |
| Max Charge Current | 1.0C |
| Max Discharge Current | 1.0C |
| Discharge Cut-off Voltage | 2.5V ±0.25V (0.2C) |
| Operating Temperature | Charging: 0°C ~ 45°C Discharging: 0°C ~ 45°C |
| Storage Temperature | -10°C ~ +45°C |
| Dimensions | Length: 100±2mm Width: 60±0.5mm Thickness: 6±0.5mm |
| Drop Test | 1 meter drop onto concrete ground twice - No fire, no leakage |
| Cycle Life | ≥500 cycles |
Electrical Parameters
- Nominal Voltage: 3.7V (Standard Lithium-ion Battery Voltage Platform)
- Charging Limit Voltage: 4.2V
- Discharge Cut-off Voltage: 2.5-3.0V
- Capacity: 5000mAh (18.5Wh Energy)
- Cycle Life: ≥500 cycles
- Self-Discharge Rate: Low (approximately 1-2% per month), excellent storage performance
Structural Features
- Ternary material (NCM/NCA) positive electrode + lithium negative electrode system
- Polymer electrolyte replaces traditional liquid electrolyte, improving safety
- Soft-pack packaging, slightly flexible, adaptable to various shape requirements
- Built-in PCM protection board to prevent overcharge, over-discharge, and overcurrent
Main Advantages
- High Energy Density (Most Significant Advantage)
- Excellent Low-Temperature Performance
- Fast Charge/Discharge Capability
- Lightweight and Flexible Design
- Long Cycle Life and Stability
Applications
Consumer Electronics
- Smartphones, Tablets, Laptops
- MP3/MP4 Players, E-readers, GPS Navigation Devices
- Power Banks (18.5Wh High Energy Output)
Small Power Tools
- Cordless Vacuum Cleaners, Electric Toothbrushes, Garden Pruners
- Small Drills, Screwdrivers, and other Portable Tools
Medical Devices
- Portable Monitors, Insulin Pumps, Hearing Aids
- Portable Physiotherapy Equipment, Mobile Medical Testing Equipment
Other Innovative Applications
- Smart Home Devices: Cameras, Sensors, Smart Locks
- Internet of Things (IoT) Devices: Providing Long Battery Life
- Personal Transportation Vehicles such as Electric Bicycles and Electric Scooters
- Emergency Lighting, Outdoor Adventure Equipment

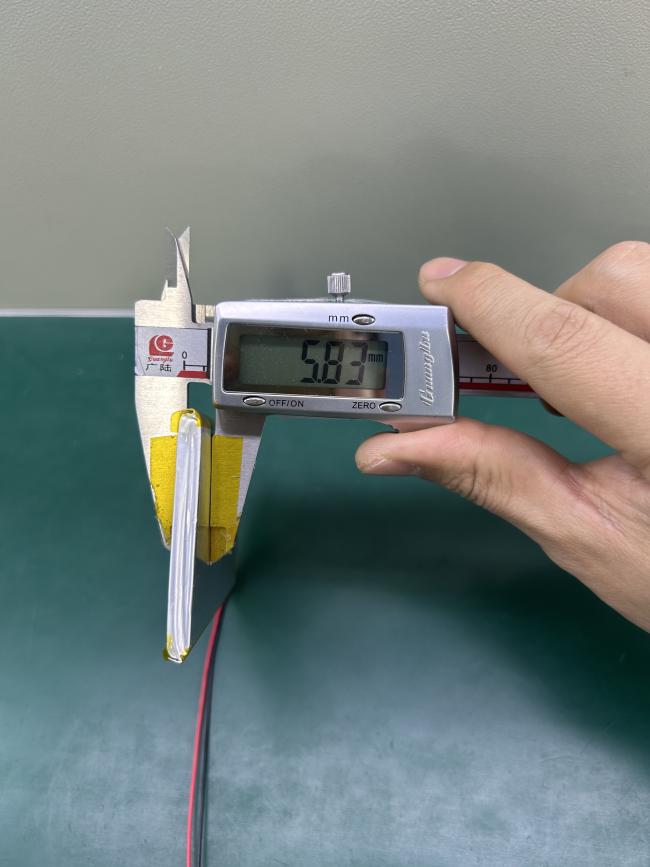

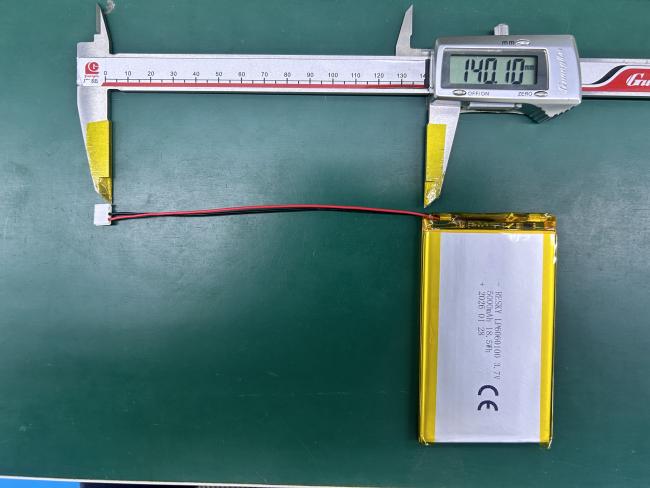

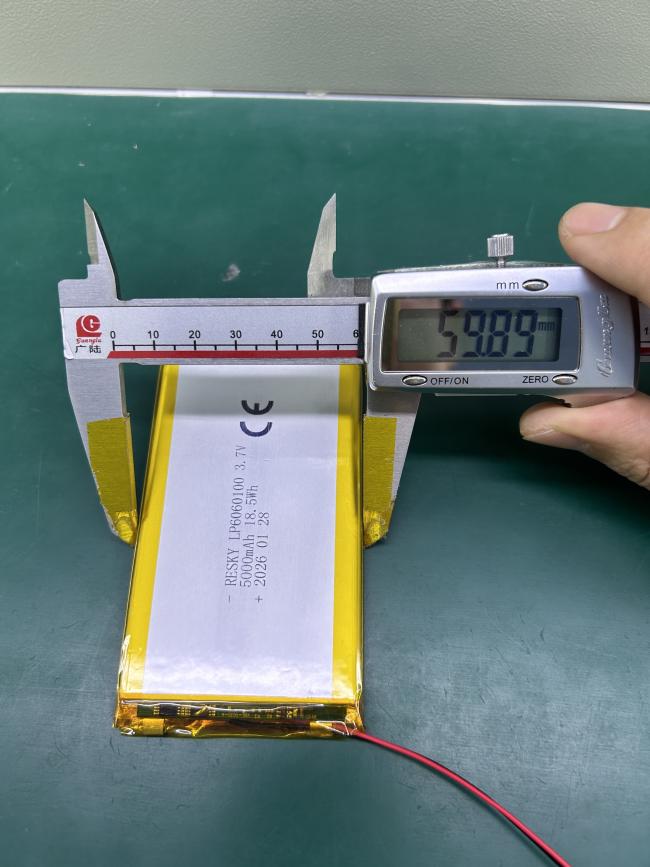

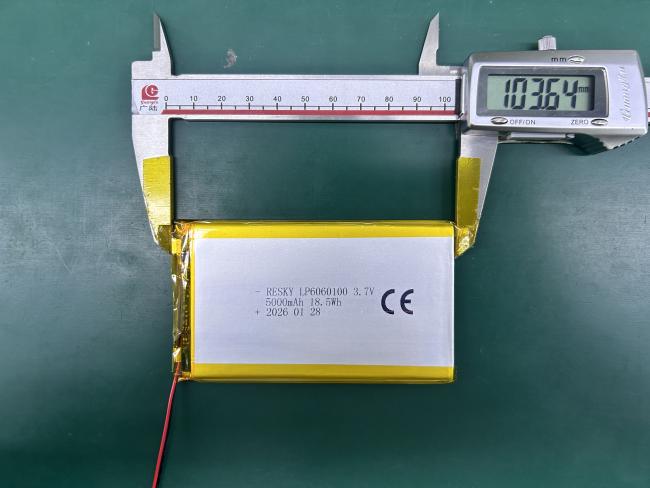

Measurement of battery size:

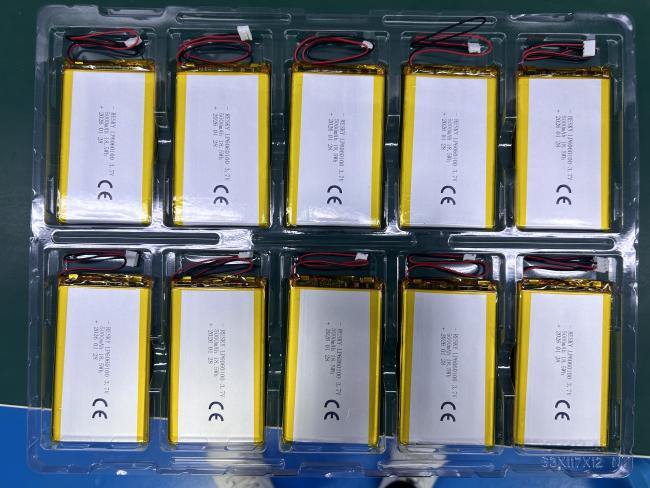

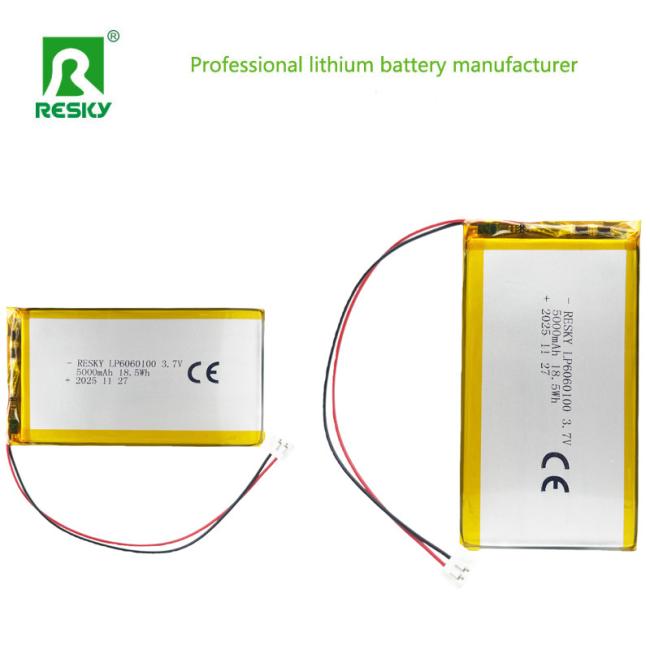

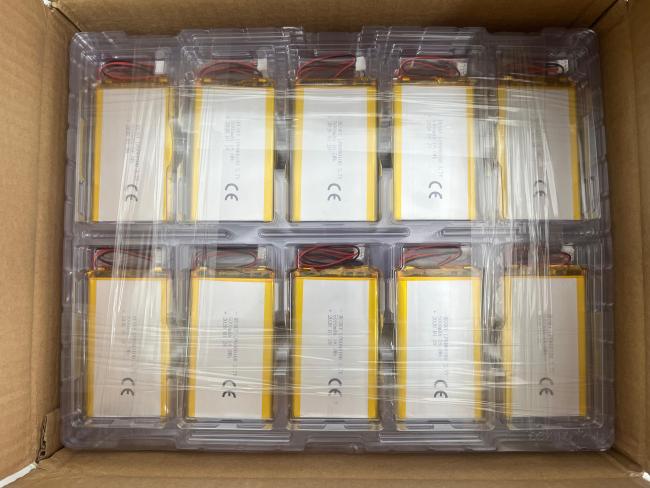

Product Images
