Solar Battery Cell 501530 200mAh 3.7v 0.74wh Rechargeable Lipo Polymer Batteries
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
7-10days
Brand:
RESKY
Product Description
Solar Battery Cell 501530 - 200mAh 3.7V Rechargeable LiPo Polymer Battery
High-performance 3.7V 200mAh lithium polymer battery designed for compact electronic devices requiring reliable power in space-constrained applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Battery Type | 3.7V 200mAh LiPo Battery |
| Charge Voltage | 4.2V |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 200mAh @ 0.2C Discharge |
| Charge Current | Standard: 0.2C Rapid: 1.0C |
| Standard Charging Method | 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C |
| Charging Time | Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.) |
| Max Charge Current | 0.5C |
| Max Discharge Current | 1.0C |
| Discharge Cut-off Voltage | 2.5V±0.25V (0.2C) |
| Operating Temperature | Charging: 0°C ~45°C Discharging: 0°C ~45°C |
| Storage Temperature | -10°C ~ +45°C |
| Dimensions | Length: 30±0.5mm Width: 15±0.5mm Thickness: 5±0.2mm |
| Drop Test | Dropped from 1m height twice onto concrete - no fire, no leakage |
| Cycle Life | ≥500 cycles |
Key Advantages
- High Energy Density: Superior capacity in compact volume compared to nickel-cadmium or nickel-metal hydride batteries
- Safe and Reliable: Flexible packaging design with external deformation detection to prevent explosion risks
- Long Cycle Life: Over 500 charge cycles with low internal resistance and stable discharge performance
- Fast Charging: Supports rapid charging technology with full charge in 1-2 hours using 4.2V CC/CV charger
- Environmentally Friendly: Free of harmful substances including lead and mercury, meeting environmental standards
Applications
- Consumer Electronics: Mini Bluetooth speakers, wireless microphones, Bluetooth receivers, TWS earphone charging cases
- Portable Digital Products: Slim voice recorders, mini reading pens, MP3 players, electronic dictionaries
- Automotive Electronics: Tire pressure monitoring systems, navigation modules, mini dash cams
- Smart Wearables: Entry-level smart bracelets, slim smartwatches, pedometers
- Children's Products: GPS bracelets, smart toy watches, early education machines
- Medical Equipment: Finger-tip pulse oximeters, electronic thermometers, blood pressure monitors, hearing aids

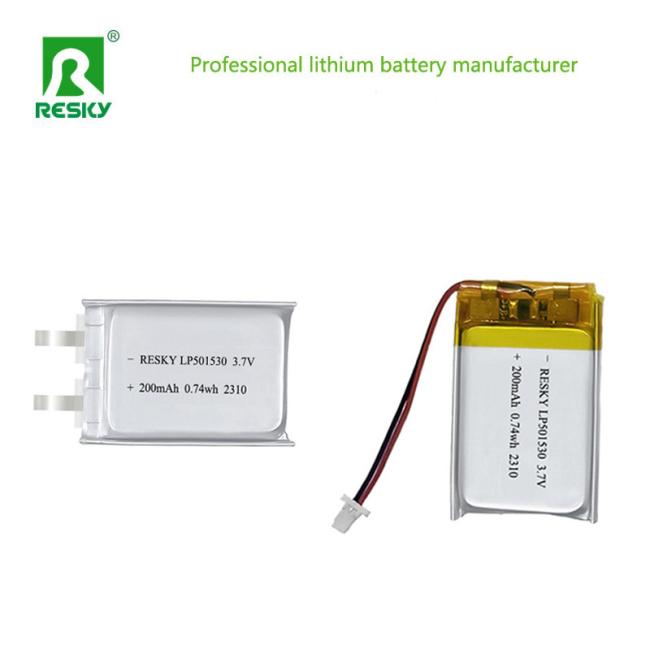

Product Images
