Lipo battery cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium polymer Batteries
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
7-10days
Brand:
RESKY
Product Description

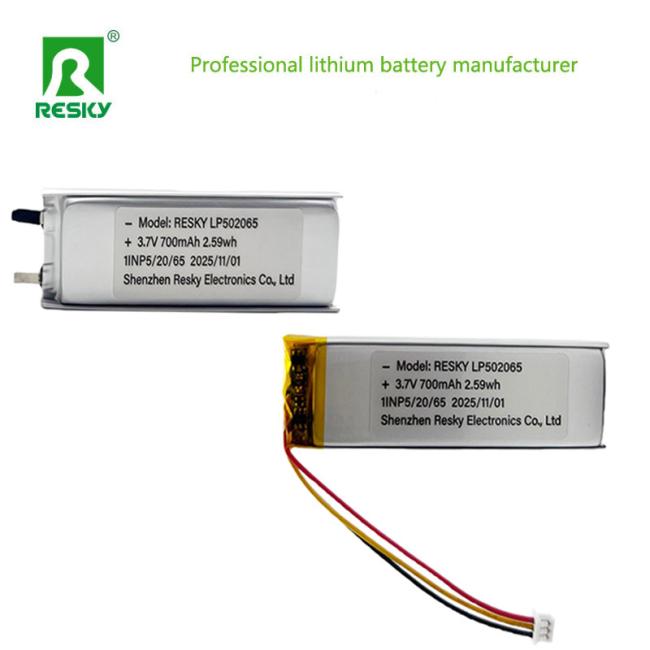

502065 3.7V 700mAh 2.59Wh Rechargeable Lithium Polymer Battery
High-performance 3.7V lithium polymer battery cell with 700mAh capacity, designed for compact electronic devices requiring reliable power in minimal space.
Product Specifications
| Nominal Capacity | 700mAh |
| Charging Current | 0.2C |
| Continuous Discharging Current | 0.5C |
| Max Discharging Current | 1C |
| Weight | 10g |
| Cycle Life | 500 cycles |
| Warranty | 12 months |
| Shipping Methods | UPS, DHL, FedEx, TNT, Air, Sea, Special Line |
| Connector Options | JST, Molex, and others |
| Dimensions | 5 × 20 × 65mm |
Technical Details
| Parameter | Specification |
|---|---|
| Battery Type | 3.7V 700mAh LiPo Battery |
| Charge Voltage | 4.2V |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 700mAh (0.2C Discharge) |
| Charge Current | Standard: 0.5C Rapid: 1.0C |
| Standard Charging Method | 0.5C CC charge to 4.2V, then CV (4.2V) charge until current ≤0.05C |
| Charging Time | Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.) |
| Max Charge Current | 1.0C |
| Max Discharge Current | 1.0C |
| Discharge Cut-off Voltage | 2.75V (0.2C) |
| Operating Temperature | Charging: 0°C ~ 45°C Discharging: 0°C ~ 45°C |
| Storage Temperature | -10°C ~ +45°C |
| Dimensions | Length: 65±2mm (excluding tabs) Width: 20±0.5mm Thickness: 5±0.2mm |
| Drop Test | 1 meter drop onto concrete ground twice - No fire, no leakage |
| Cycle Life | ≥500 cycles |
Battery measurement:
Packaged in blister tray:
Applications
Consumer Electronics
- TWS Earphone Charging Cases
- Smart Wearable Devices
- Mini Portable Digital Products
- Small Digital Accessories
Medical & Health Equipment
- Portable Testing Devices
- Assistive Medical Devices
IoT Devices
- Low-Power Sensors
- Mini Positioning Devices
- Smart Control Devices
Toys & Models
- Mini Remote Control Toys
- Electronic Toys
Small Devices
- Security Monitoring
- Detection Instruments
Key Advantages
- High Energy Density: Superior size-to-weight ratio for maximum power in minimal space
- Optimal Voltage Compatibility: 3.7V nominal voltage matches standard requirements for consumer electronics and IoT devices, eliminating need for additional voltage conversion modules
- Excellent Performance: No memory effect, high charge/discharge efficiency, and extended cycle life
- Flexible Form Factor: Customizable shape to fit various device designs
- Reliable Low-Temperature Operation: Consistent performance across wider temperature ranges
- Safety & Environmental Compliance: Meets industry standards for safety and environmental protection
