Rechargeable Lithium Polymer Battery 501540 3.7v 280mAh Recycling Power Lipo Battery Cells
Price:
Negotiable
MOQ:
1000pcs
Delivery Time:
7-10days
Brand:
RESKY
Product Description

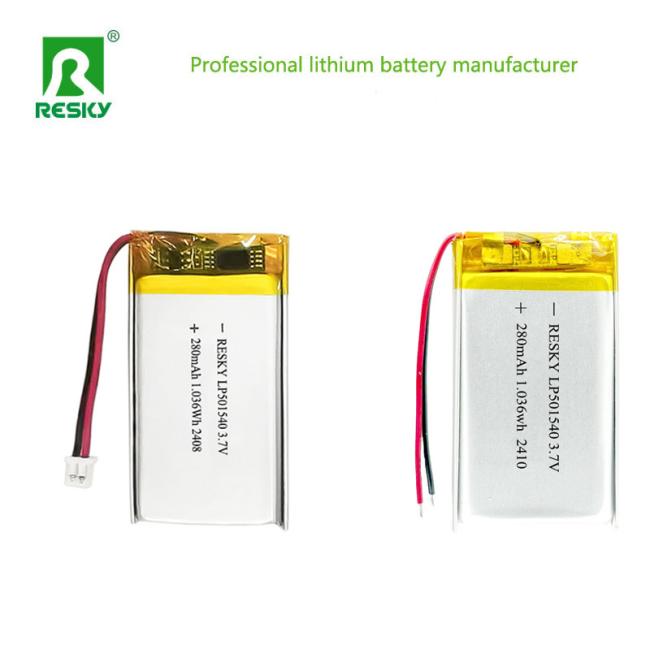

Rechargeable Lithium Polymer Battery 501540 3.7v 280mAh
High-performance rechargeable lithium polymer battery cells designed for reliable power and extended cycle life in various applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Battery Type | 3.7V 280mAh LiPo Battery |
| Charge Voltage | 4.2V |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 280mAh @ 0.2C Discharge |
| Charge Current | Standard: 0.2C Rapid: 1.0C |
| Standard Charging Method | 0.5C CC charge to 4.2V, then CV (4.2V) charge until current ≤0.05C |
| Charging Time | Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.) |
| Max Charge Current | 0.5C |
| Max Discharge Current | 1.0C |
| Discharge Cut-off Voltage | 2.5V±0.25V (0.2C) |
| Operating Temperature | Charging: 0°C ~ 45°C Discharging: 0°C ~ 45°C |
| Storage Temperature | -10°C ~ +45°C |
| Dimensions | Length: 40±0.5mm Width: 15±0.5mm Thickness: 5±0.2mm |
| Drop Test | 1 meter drop onto concrete ground twice - No fire, no leakage |
| Cycle Life | ≥800 cycles |
Applications
Consumer Electronics
- Smartphones and Tablets: Primary power source enabling long battery life and compact designs
- Wearable Devices: Smartwatches and fitness trackers with extended use without significant weight
- Cameras: Digital cameras supporting high-energy operations like video recording
Renewable Energy Systems
Energy Storage Systems: Store excess energy generated by renewable sources like solar and wind
Ternary Lithium Polymer Technology
Utilizes nickel-cobalt-manganese (NCM) or nickel-cobalt-aluminum (NCA) cathode materials, making them a mainstream choice for both power and consumer battery applications.
Medical Device Compatibility
Long Cycle Life & Low Maintenance
Typical cycle life of 1000-2000 cycles (2-4 times lithium cobalt oxide), reducing battery replacement frequency for long-term medical devices like ECG monitors and diagnostic equipment.
Temperature Performance
Maintains over 70% discharge efficiency from -20℃ to 60℃, suitable for outdoor emergency defibrillators and cold chain transported diagnostic equipment.
High-Power Capability
Supports high-current charging and discharging for emergency equipment such as defibrillators with high-voltage instantaneous discharge and ventilators with peak starting power.
Enhanced Safety
Superior thermal stability with higher thermal runaway threshold during overcharging, short circuits, and punctures, making them ideal for wearable ECG monitors and portable ultrasound devices.
Product Images
