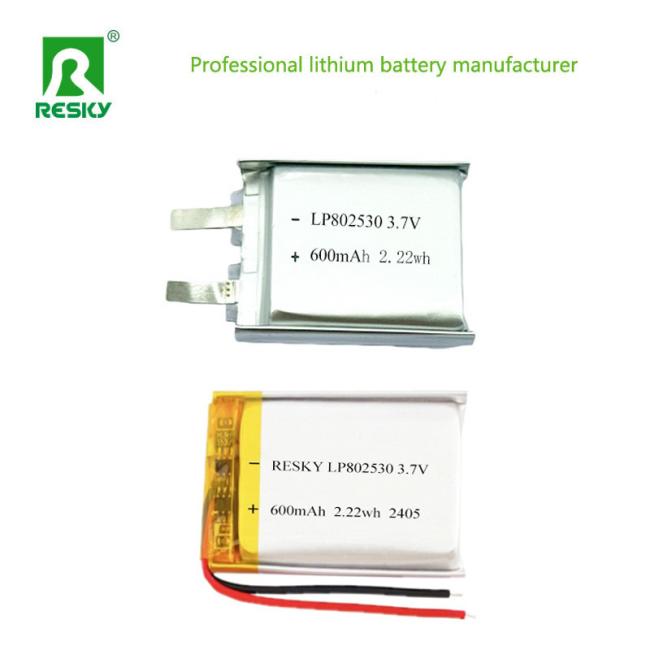

Factory Wholesale Rechargeable Lithium Battery 802530 3.7V 600mAh Li Polymer Battery Cell
| Item | Specifications |
|---|---|
| Batteries | 3.7V 600mAh LiPo battery |
| Charge Voltage | 4.2V |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 600mAh (0.2C Discharge) |
| Charge Current | Standard Charging: 0.5C Rapid charge: 1.0C |
| Standard Charging Method | 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C |
| Charging Time | Standard: 2.75 hours Rapid: 2 hours |
| Max. Charge Current | 1.0C |
| Max. Discharge Current | 1.0C |
| Discharge Cut-off Voltage | 2.75V (0.2C) |
| Operating Temperature | Charging: 0°C ~45°C Discharging: 0°C ~45°C |
| Storage Temperature | -10°C ~ +45°C |
| Dimension | Length: 30±2mm Width: 25±0.5mm Thickness: 8±0.2mm |
| Drop Test | Dropped from 1m twice onto concrete ground with no fire or leakage |
| Cycle Time | ≥500 times |
- Balanced Capacity & Compact Size: 600mAh capacity in 8×25×30mm dimensions, ideal for devices needing extended runtime in thin designs
- High Energy Density: ~370Wh/L energy density outperforms traditional cylindrical batteries of similar volume
- Reliable Safety: Soft-package Li-Polymer structure with built-in protection IC against overcharge, over-discharge, and short circuit
- Long-Term Durability: 300-500 charge cycles while maintaining over 80% capacity after 300 cycles
- Wide Temperature Range: Operates from -10°C to 60°C (discharge) and 0°C to 45°C (charge)
- Low Self-Discharge: Only ~5% capacity loss per month at room temperature
Consumer Electronics: Commonly used in smart wearable devices such as children's smartwatches and GPS trackers, providing all-day battery life; it can also power audio devices such as Bluetooth headsets and small Bluetooth speakers, meeting short-term continuous playback needs.
Home and Personal Care Devices: Can be used as a power source for low-power appliances such as desk lamps, navigators, and nightlights, enabling portable lighting or positioning functions; it is also suitable for personal care tools such as beauty devices and dog trainers, ensuring stable operation.
Toys and Models: Due to its high safety and low leakage rate of polymer cells, it is suitable for electric toys, model airplanes, and other scenarios requiring lightweight batteries.
Medical and Health Devices: Can be used in small medical and beauty instruments such as portable hydration sprayers, providing reliable power; its stability also makes it a potential power source choice for precision devices such as pacemakers.
