654060 3.7v 2000mAh Low Discharge Rate Lithium Polymer Battery Cell with 500 Cycles for Animal GPS Tracker
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
7-10days
Brand:
RESKY
Product Description
Lithium Cell 654065 3.7V 2000mAh 7.4Wh Rechargeable Lithium Ion Polymer Battery Cell
High-performance lithium polymer battery cell designed specifically for animal GPS trackers and portable medical devices, offering reliable power with high energy density.
Technical Specifications
| Item | Specification |
|---|---|
| Battery Type | 3.7V 2000mAh LiPo Battery |
| Charge Voltage | 4.2V |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 2000mAh @ 0.2C Discharge |
| Charge Current | Standard: 0.5C Rapid: 1.0C |
| Standard Charging Method | 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C |
| Charging Time | Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.) |
| Max. Charge Current | 1.0C |
| Max. Discharge Current | 1.0C |
| Discharge Cut-off Voltage | 2.5V±0.25V (0.2C) |
| Operating Temperature | Charging: 0°C ~45°C Discharging: 0°C ~45°C |
| Storage Temperature | -10°C ~ +45°C |
| Dimensions | Length: 65±2mm (excluding tabs) Width: 40±0.5mm Thickness: 6.5±0.2mm |
| Drop Test | Dropped from 1m height twice onto concrete - no fire, no leakage |
| Cycle Life | ≥500 cycles |
Main Advantages
- Lightweight and High-Density: Soft-pack battery cells, no metal casing, approximately 40% lighter than steel-cased batteries of the same capacity
- Safe and Stable: Polymer electrolyte with multiple protections (overcharge/over-discharge/overcurrent/short circuit)
- Long Cycle Life: ≥500 cycles with monthly self-discharge ≤5%
- Wide Temperature Range: Discharge -20℃~60℃, charging 0℃~45℃
- Standard Size: 65×40×6.5mm specification for easy integration
Key Features
- Standard 654065 universal size for quick replacement and mass production
- 2000mAh capacity providing reliable, longer-lasting power
- Flexible and customizable thin, lightweight design
- Fully compliant with UN38.3, MSDS, IEC62133, RoHS, and ECT certifications
- Cost-effective with stable mass production and good consistency
Applications
Consumer Electronics
- Handheld fans
- Bluetooth speakers
- Game controllers
- Portable DVDs
- Digital photo frames
Smart Wearables/IoT
- Smart bracelets
- GPS trackers
- Security cameras
- Wireless sensors
- Access control devices
Portable Devices
- GPS navigation
- Law enforcement recorders
- Walkie-talkies
- Medical devices
Industrial/Specialty
- Portable testing instruments
- Small robots
- Emergency lighting
- Outdoor power modules

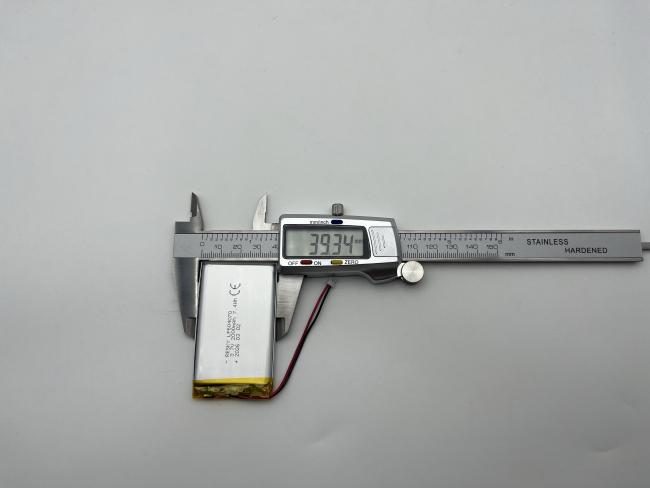

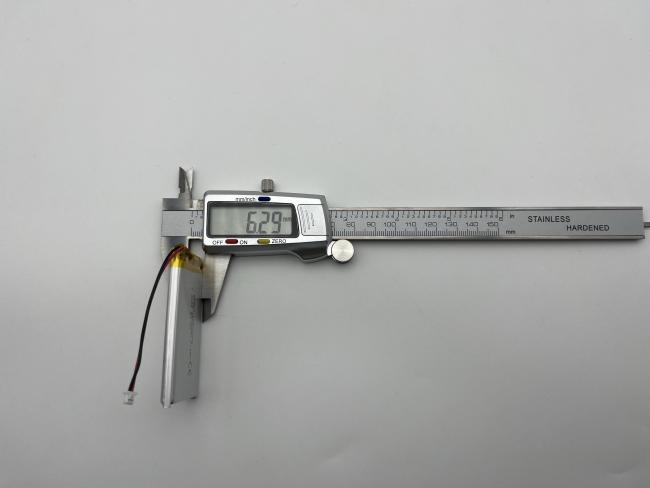

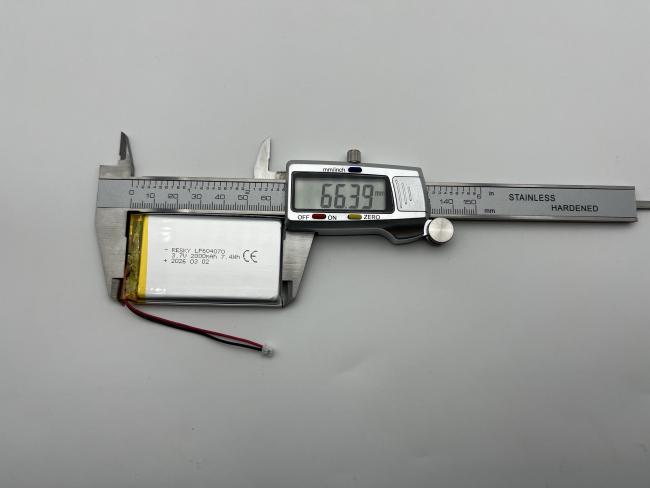

Battery Cell Measurements

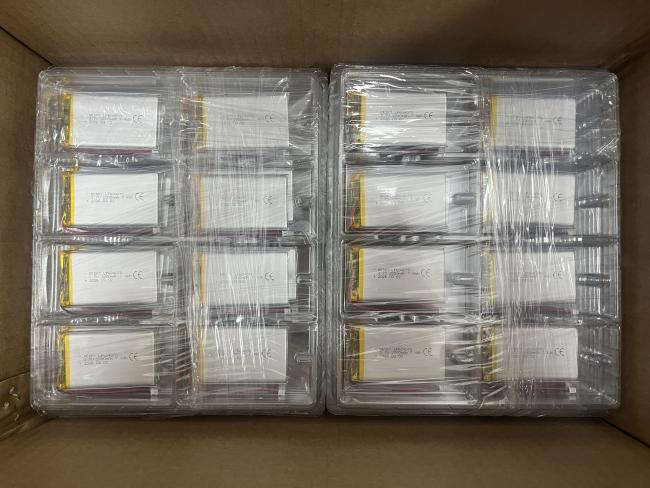

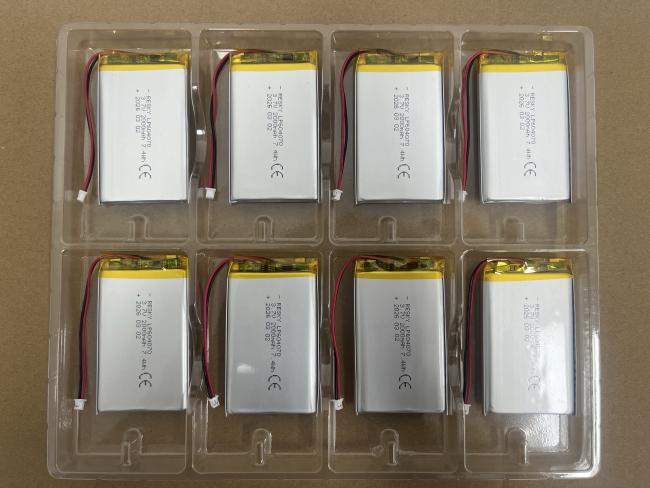

Battery package details:
