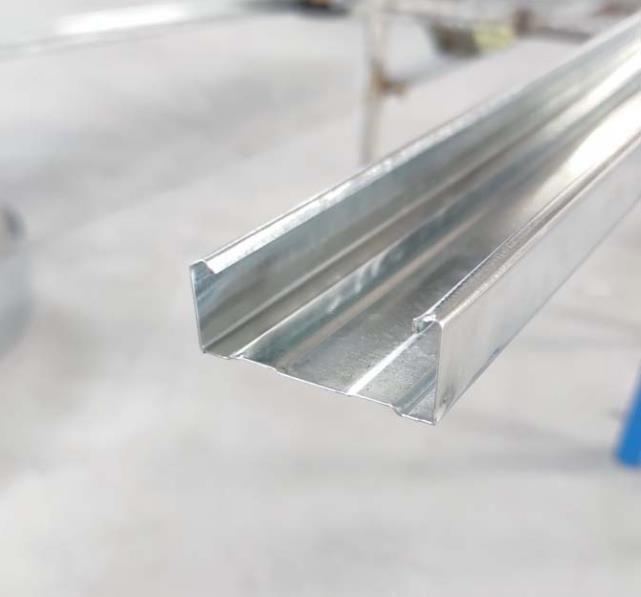

L-type Metal Building Stud / Track Steel Profile for Wall Partition Material Ud 27*28

Noya Building Steel Profile can be worked as wall partition material.
Features of Noya Steel channel
1)high performance
2) easy cut apart
3)non-deforming
4) simply installation


Specification:
Stud channel:
50*35/70*35/73*36mm
Track channel:
52*29/70*29/75*30mm
UD: 27*28
CD: 60*27
The above sizes is just for your reference, thickness, length and any other sizes can be made according to customers'requirement.



Metal  channel

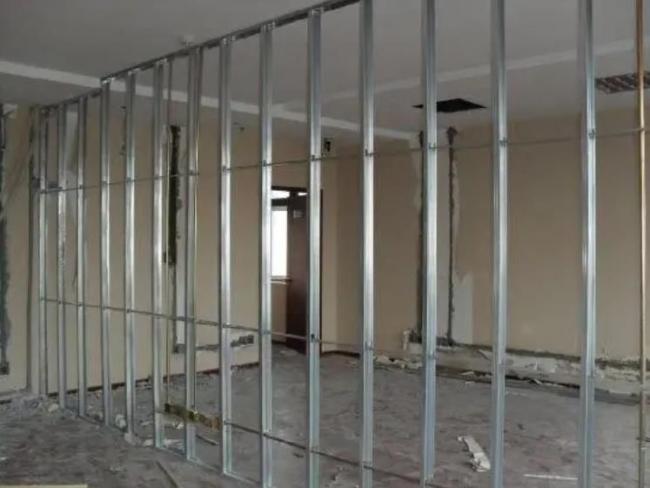

   1.   Metal  channel is a popular way to be used to divide the space,especially using in commercial buildings.
    2.  Drywall Steel Frame System is made of galvanized steel sheet with good rust-Proof function.A variety of frames are ready for customers' demands and designers' choice for different purposes and places. One of our merits is the special hole for channel on C-stud in per 60cm which is easy for workers to install the electric lines and water tubes.CH and IH type of studs are the special type we developed to solve the hard work situation in elevator ventilator and offer a better protection of workers' safety.
   3.Our dry wall steel frames are covered with HUILON magnesium fireproof boards and fulfilled with material which is heat insulation and noise-proof mineral wool between two layers of boards. It will create a better living environment than the traditional building materials.
