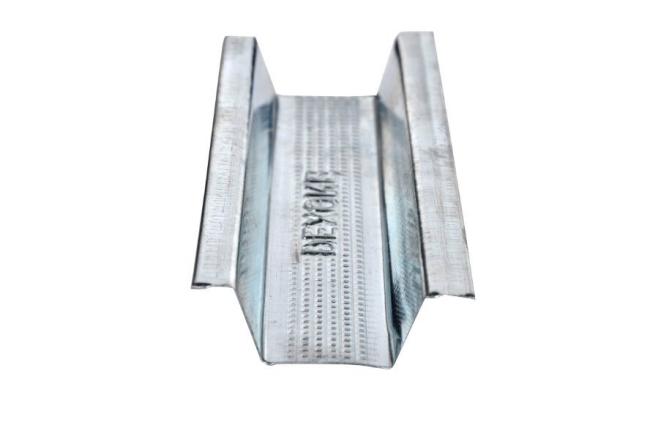

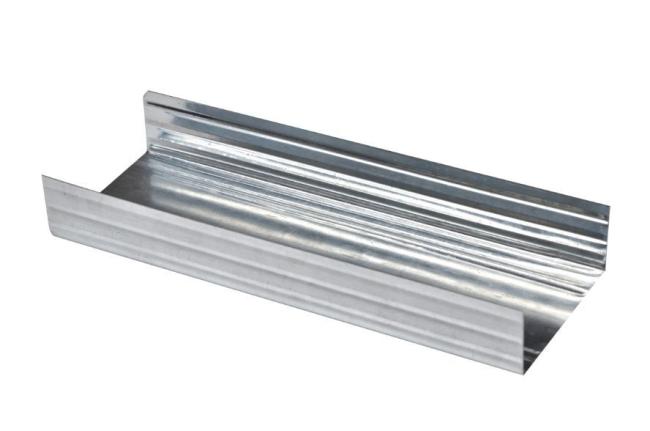

3000mm Standard Length Galvanized Drywall Stud Building Metal Channel Ceiling Profile

1. Material: Galvanized Steel
2. Application: Dry wall Partition and Suspension System
We can produce all size according clients requirement.


Specification:
TRACK:
Width: 52mm/72mm/75mm/100mm/148mm
Height: 25mm/29mm/32mm/40mm
Thickness: 0.40 to 1.0mm
Standard length: 3000mm
Stud:
Width: 50mm/70mm/73mm/98mm/146mm
Height: 32mm/34.5mm/36mm
Thickness: 0.40 to 1.0mm
Standard length: 3000mm

Omega(Furring channel): 35*22mm / 45*22mm / 35*16mm
Wall Angle: 20*20mm/22*22mm/25*25mm
Main Channel: 38*11mm/50*15mm/60*27mm
CD & UD SYSTEM C&D 60*27, 27* 28mm,

Advantage:

Excellent fire resistive ability. Suit residuals and public places.
Fast installation. Easy to control the construction progress
Combinative construction. Easy to keep work places clean.
Good vibration absorbing ability. Suit buildings on seismic belt.
Fast reconstruction for easy assembling and dismantling.
Filling acoustic insulation can enhance the sound-proof ability.
Surface of the walls are smooth. Easy to paint or paste wallpaper.
Electric wires are hidden in the wall
It is easy to drill through the wall for construction.
It could be applied under the original ceiling
