ASTM A312 A213 A269 A789 Seamless Stainless Steel Tubing
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
20
Brand:
Sindara
Product Description
Description
Outer Diameter(OD): 6mm to 762mm
Wall Thickness(WT): 0.5mm - 65mm
LENGTH:5.8/6/11.8/12m
Pipe Standard:ASTM A312/A213/A269/B673/B674/B677/B675/B676/B690/A789/A790/A928
ASME SB163/SB423/SB444/SB622/SB677
Material:
300series:301,304,304L,,309,309S,310,310S,316,316L,321,347,347H;
400series:410,420,430,420J2,439,409,430S,444,431,441,446,440A,440B,440C.
Duplex:S31803, S32250, S32750, S32760, S31500, 32001. S32003, S32304.
Nickele bass alloy: N08800,N08810,N08811,N08825,N06625
Other special: S31254,N08367,N08904
Titanium alloy: TA1; TA2; TA3; TA9
Process:Cold drawn, Cold rolled, Precision Rolled; Hot Rolled;
Finish:Pickled, bright annealing, polished;
Application:Chemical, Food and beverage,Marine,Mining,Oil and gas, Pharmaceutical, Petrochemical, Power generation,Renewable energy, offshore engineering, ship building, paper industry, water treatment, HAVC system, boilers, heat exchangers, Aviation, funiture, OEM, Construction, Sanitary etc
Specification
|
Outside Diameter NPS |
Outside Diameter (mm) | Nominal Wall Thickness (mm) | ||||||||
| ASME B36.19M | ASME B36.10M | |||||||||
| SCH 5S | SCH 10S | SCH 40S | SCH 80S | SCH 5 | SCH 10 | SCH 20 | STD | XS | ||
| 1/4 | 13.72 | — | 1.65 | 2.24 | 3.02 | 1.65 | — | 2.24 | 3.02 | |
| 3/8 | 17.15 | — | 1.65 | 2.31 | 3.2 | 1.65 | — | 2.31 | 3.2 | |
| 1/2 | 21.34 | 1.65 | 2.11 | 2.77 | 3.73 | 1.65 | 2.11 | — | 2.77 | 3.73 |
| 3/4 | 26.67 | 1.65 | 2.11 | 2.87 | 3.91 | 1.65 | 2.11 | — | 2.87 | 3.91 |
| 1 | 33.4 | 1.65 | 2.77 | 3.38 | 4.55 | 1.65 | 2.77 | — | 3.38 | 4.55 |
| 1 1/4 | 42.16 | 1.65 | 2.77 | 3.56 | 4.85 | 1.65 | 2.77 | — | 3.56 | 4.85 |
| 1 1/2 | 48.26 | 1.65 | 2.77 | 3.68 | 5.08 | 1.65 | 2.77 | — | 3.68 | 5.08 |
| 2 | 60.33 | 1.65 | 2.77 | 3.91 | 5.54 | 1.65 | 2.77 | — | 3.91 | 5.54 |
| 2 1/2 | 73.03 | 2.11 | 3.05 | 5.16 | 7.01 | 2.11 | 3.05 | — | 5.16 | 7.01 |
| 3 | 88.9 | 2.11 | 3.05 | 5.49 | 7.62 | 2.11 | 3.05 | — | 5.49 | 7.62 |
| 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 8.08 | 2.11 | 3.05 | — | 5.74 | 8.08 |
| 4 | 114.3 | 2.11 | 3.05 | 6.02 | 8.56 | 2.11 | 3.05 | — | 6.02 | 8.56 |
| 5 | 141.3 | 2.77 | 3.4 | 6.55 | 9.53 | 2.77 | 3.4 | — | 6.55 | 9.53 |
| 6 | 168.28 | 2.77 | 3.4 | 7.11 | 10.97 | 2.77 | 3.4 | — | 7.11 | 10.97 |
| 8 | 219.08 | 2.77 | 3.76 | 8.18 | 12.7 | 2.77 | 3.76 | 6.35 | 8.18 | 12.7 |
| 10 | 273.05 | 3.4 | 4.19 | 9.27 | 12.7 | 3.4 | 4.19 | 6.35 | 9.27 | 12.7 |
| 12 | 323.85 | 3.96 | 4.57 | 9.53 | 12.7 | 3.96 | 4.57 | 6.35 | 9.53 | 12.7 |
| 14 | 355.6 | 3.96 | 4.78 | 9.53 | 12.7 | 3.96 | 6.35 | 7.92 | 9.53 | 12.7 |
| 16 | 406.4 | 4.19 | 4.78 | 9.53 | 12.7 | 4.19 | 6.35 | 7.92 | 9.53 | 12.7 |
| 18 | 457.2 | 4.19 | 4.78 | 9.53 | 12.7 | 4.19 | 6.35 | 7.92 | 9.53 | 12.7 |
| 20 | 508 | 4.78 | 5.54 | 9.53 | 12.7 | 4.78 | 6.35 | 9.53 | 9.53 | 12.7 |
| 22 | 558.8 | 4.78 | 5.54 | 4.78 | 6.35 | 9.53 | 9.53 | 12.7 | ||
| 24 | 609.6 | 5.54 | 6.35 | 9.53 | 12.7 | 5.54 | 6.35 | 9.53 | 9.53 | 12.7 |
| 26 | 660.4 | — | — | — | — | — | 7.92 | 12.7 | 9.53 | 12.7 |
| 28 | 711.2 | — | — | — | — | — | 7.92 | 12.7 | 9.53 | 12.7 |
| 30 | 762 | 6.35 | 7.92 | — | 6.35 | — | 7.92 | 12.7 | 9.53 | 12.7 |
| 32 | 812.8 | Thinkness: 8.63-30mm | ||||||||
Standard
Stainless steel seamless pipe Chemical Component
| Type | Grade | Grade | Chemical Component % | ||||||||||||||
| C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N | Other | |||||||
| Austenitic | 201 | SUS201 | ≤0.15 | 16.00-18.00 | 3.50-5.50 | 5.50－7.50 | ≤0.060 | ≤0.030 | - | ≤1.00 | - | ≤0.25 | - | ||||
| 304 | 1.4301 | ≤0.07 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - | |||||
| 304L | 1.4307 | ≤0.030 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - | |||||
| 304H | 1.4948 | 0.04-0.10 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - | |||||
| 309 | 1.4828 | ≤0.20 | 22.00-24.00 | 12.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - | |||||
| 309S | * | ≤0.08 | 22.00-24.00 | 12.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - | |||||
| 310 | 1.4842 | ≤0.25 | 24.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.50 | - | - | - | |||||
| 310S | * | ≤0.08 | 24.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.50 | - | - | - | |||||
| 314 | 1.4841 | ≤0.25 | 23.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | 1.50-3.00 | - | - | - | |||||
| 316 | 1.4401 | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | - | - | |||||
| 316L | 1.4404 | ≤0.030 | 16.00-18.00 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | - | - | |||||
| 316Ti | 1.4571 | ≤0.08 | 16.00-18.00 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | 0.1 |
Ti5(C+N) ~0.70 |
|||||
| 317 | * | ≤0.08 | 18.00-20.00 | 11.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | 3.00-4.00 | ≤1.00 | - | 0.1 | - | |||||
| 317L | 1.4438 | ≤0.03 | 18.00-20.00 | 11.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | 3.00-4.00 | ≤1.00 | - | 0.1 | - | |||||
| 321 | 1.4541 | ≤0.08 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - |
Ti5(C+N) ~0.70 |
|||||
| 321H | * | 0.04-0.10 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - |
Ti5(C+N) ~0.70 |
|||||
| 347 | 1.4550 | ≤0.08 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - |
Nb≥10*C% -1.10 |
|||||
| 347H | 1.494 | 0.04-0.10 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - |
Nb≥10*C% -1.10 |
|||||
| xm-19 | Nitronic50 | ≤0.06 | 20.50-23.50 | 11.50-13.50 | 4.0-6.0 | ≤0.045 | ≤0.030 | 1.50-3.00 | ≤1.00 | - | 0.2-0.4 |
Nb:0.10-0.30 V:0.10-0.30 |
|||||
| 904L | N08904 | ≤0.02 | 19.0-23.0 | 23.0-28.0 | 4.0-5.0 | ≤0.045 | ≤0.035 | ≤1.00 | 0.1 | Cu:1.0-2.0 | |||||||
| Duplex | 2205 | S32205 | ≤0.03 | 22.0-23.0 | 4.5-6.5 | ≤2.00 | ≤0.030 | ≤0.020 | 3.0-3.5 | ≤1.00 | - | 0.14-0.20 | |||||
| 2507 | S32750 | ≤0.03 | 24.0-26.0 | 6.0-8.0 | ≤1.20 | ≤0.035 | ≤0.020 | 3.0-5.0 | ≤0.80 | 0.5 | 0.24-0.32 | ||||||
| * | S32760 | ≤0.03 | 24.0-26.0 | 6.0-8.0 | ≤1.00 | ≤0.030 | ≤0.010 | 3.0-4.0 | ≤1.00 | 0.5-1.00 | 0.2-0.3 | ||||||
| 2304 | S32304 | ≤0.03 | 21.5-24.5 | 3.0-5.5 | ≤2.50 | ≤0.040 | ≤0.030 | 0.05-0.6 | ≤1.00 | 0.05-0.6 | 0.05-0.2 | ||||||
| 329 | 1.4460 | ≤0.08 | 23.00-28.00 | 2.00-5.00 | ≤1.00 | ≤0.040 | ≤0.030 | 1.00-2.00 | ≤0.75 | - | - | ||||||
| Ferrite | 409 | S40900 | ≤0.03 | 10.50-11.70 | 0.5 | ≤1.00 | ≤0.040 | ≤0.020 | - | ≤1.00 | - | ≤0.030 |
Ti6(C+N) ~0.50 Nb:0.17 |
||||
| 430 | 1Cr17 | ≤0.12 | 16.00-18.00 | - | ≤1.0 | ≤0.040 | ≤0.030 | - | ≤1.0 | - | - | - | |||||
| 446 | S44600 | ≤0.20 | 23.00-27.00 | 0.75 | ≤1.5 | ≤0.040 | ≤0.030 | 1.50-2.50 | ≤1.00 | - | ≤0.25 | - | |||||
| Martensite | 410 | 1Cr13 | 0.08-0.15 | 11.50-13.50 | 0.75 | ≤1.00 | ≤0.040 | ≤0.030 | - | ≤1.00 | - | - | - | ||||
| 420 | 2Cr13 | ≥0.15 | 12.00-14.00 | - | ≤1.00 | ≤0.040 | ≤0.030 | - | ≤1.00 | - | - | - | |||||
| 440C | 11Cr17 | 0.95-1.20 | 16.00-18.00 | - | ≤1.00 | ≤0.040 | ≤0.030 | 0.75 | ≤1.00 | - | - | - | |||||
| PH | 630 | 17-4PH | ≤0.07 | 15.00-17.50 | 3.00-5.00 | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | 3.00-5.00 | - | Nb 0.15-0.45 | ||||
| 631 | 17-7PH | ≤0.09 | 16.00-18.00 | 6.50-7.50 | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | ≤0.50 | - | Al 0.75-1.50 | |||||
| 632 | 15-5PH | ≤0.09 | 14.00-16.00 | 3.50-5.50 | ≤1.00 | ≤0.040 | ≤0.030 | 2.00-3.00 | ≤1.00 | 2.5-4.5 | - | Al 0.75-1.50 | |||||
| Grade | Tensile Strength | Yeild Point | EL. Min(%) | Rockwell | |||||||||||||
| Min(Mpa) | Min(Mpa) | Max | |||||||||||||||
| TP 304 | 515 | 205 | 35 | 90 | |||||||||||||
| TP 304H | 550 | 240 | 35 | 90 | |||||||||||||
| TP 304L | 485 | 170 | 35 | 90 | |||||||||||||
| TP 309S | 515 | 205 | 35 | 90 | |||||||||||||
| TP 310S | 515 | 205 | 35 | 90 | |||||||||||||
| TP 316 | 515 | 205 | 35 | 90 | |||||||||||||
| TP 316L | 485 | 170 | 35 | 90 | |||||||||||||
| TP 316Ti | 515 | 205 | 35 | 90 | |||||||||||||
| TP 317 | 515 | 205 | 35 | 90 | |||||||||||||
| TP 321 | 515 | 205 | 35 | 90 | |||||||||||||
| TP 321H | 515 | 205 | 35 | 90 | |||||||||||||
| TP 347 | 515 | 205 | 35 | 90 | |||||||||||||
| TP 347H | 515 | 205 | 35 | 90 | |||||||||||||
Process

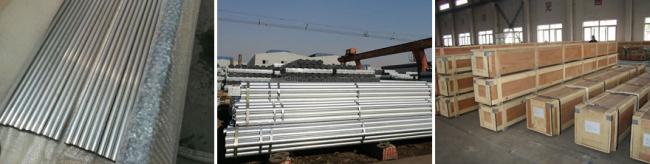

Packing
