3.18MM - 154MM BA Tube TP316L Annealed Boiler Seamless 304 Stainless Steel Tubing
ASTM A269 TP316L Bright Annealed Stainless Steel Seamless Tube
►Products Information
Stainless steel bright tubes are precision-engineered cylindrical components known for their smooth, polished surface and exceptional corrosion resistance. Made from high-quality stainless steel grades such as 304 or 316, these tubes are widely used in industries like automotive, aerospace, food processing, and architecture. The bright finish is achieved through processes like polishing or annealing, enhancing both aesthetic appeal and durability. Stainless steel bright tubes offer excellent strength, weldability, and resistance to heat and chemicals, making them ideal for applications requiring hygiene, precision, and longevity. Their versatility extends to structural, decorative, and mechanical uses, ensuring reliability in demanding environments while maintaining a sleek, modern appearance.
►Product Size
| STAINLESS STEEL (ASTM/ANSI) | ||||||||||
| B | O.D | SCH 5S | SCH 10S | SCH 10 | SCH 20S | SCH 40S | SCH 40 | STD | SCH 80S | SCH 80 |
| 1/8" | 10.29 | - | 1.24 | 1.24 | - | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 |
| 1/4" | 13.72 | - | 1.65 | 1.65 | - | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 |
| 3/8" | 17.15 | - | 1.65 | 1.65 | - | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 |
| 1/2" | 21.34 | 1.65 | 2.11 | 2.11 | - | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 |
| 3/4" | 26.67 | 1.65 | 2.11 | 2.11 | - | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 |
| 1" | 33.4 | 1.65 | 2.77 | 2.77 | - | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 |
| 1 1/4" | 42.16 | 1.65 | 2.77 | 2.77 | - | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 |
| 1 1/2" | 48.26 | 1.65 | 2.77 | 2.77 | - | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 |
| 2" | 60.33 | 1.65 | 2.77 | 2.77 | - | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 |
| 2 1/2" | 73.03 | 2.11 | 3.05 | 3.05 | - | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 |
| 3" | 88.9 | 2.11 | 3.05 | 3.05 | - | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 |
| 3 1/2" | 101.6 | 2.11 | 3.05 | 3.05 | - | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 |
| 4" | 114.3 | 2.11 | 3.05 | 3.05 | - | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 |
| 5" | 141.3 | 2.77 | 3.4 | 3.4 | - | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 |
| 6" | 168.28 | 2.77 | 3.4 | 3.4 | - | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 |
| 8" | 219.08 | 2.77 | 3.76 | 3.76 | 6.35 | 8.18 | 8.18 | 8.18 | 12.7 | 12.7 |
| 10" | 273.05 | 3.4 | 4.19 | 4.19 | 6.35 | 9.27 | 9.27 | 9.27 | 12.7 | 15.09 |
| 12" | 323.85 | 3.96 | 4.57 | 4.57 | 6.35 | 9.52 | 10.31 | 9.52 | 12.7 | 17.48 |
| 14" | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | - | 11.13 | 9.52 | - | 19.05 |
| 16" | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | - | 12.7 | 9.52 | - | 21.44 |
| 18" | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | - | 14.27 | 9.52 | - | 23.83 |
| 20" | 508 | 4.78 | 5.54 | 6.35 | 9.52 | - | 15.09 | 9.52 | - | 26.19 |
| 22" | 558.8 | 4.78 | 5.54 | 6.35 | 9.52 | - | 15.09 | 9.52 | - | 28.58 |
| 24" | 609.6 | 5.54 | 6.35 | 6.35 | 9.52 | - | 17.48 | 9.52 | - | 30.96 |
| 26" | 660.4 | - | 7.92 | 12.7 | - | 17.48 | 9.52 | - | ||

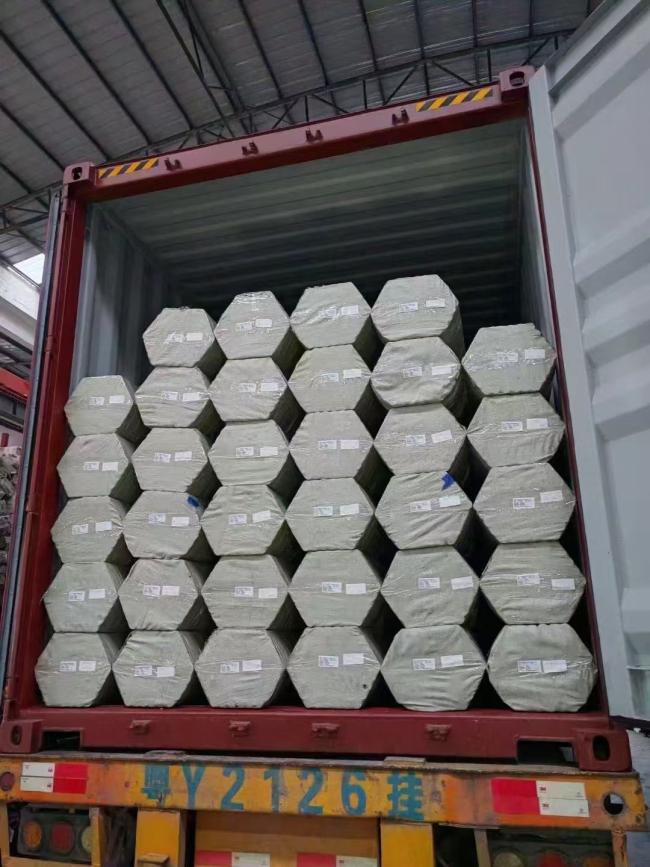

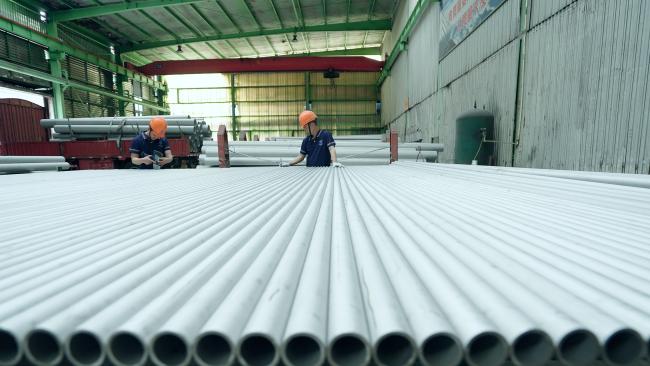

►Product Shoot
►FAQ
Q1: Can you provide the free samples?
A: We can supply the free samples but the sample express freight need paid by yourside.
Q2: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q3: Can I customize products?
A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.
Q4: Are you manufacturer or trading company?
A: We are not only manufacturer but also a trading company,we have more than 12years export experience.
Q5: Delivery time?
A: 1- 7 days for small order.10- 20 days for big order.
