Sch5-SCH160 Stainless Steel Butt Welded Fittings Sand Rolled SS Concentric Reducer
DN25 to DN800 Stainless Steel Butt Welded Fittings Sand Rolled SS Concentric Reducer
►Products Description
Our Stainless Steel Butt Welded Concentric Reducer provides a seamless transition between pipe diameters, ensuring optimal flow efficiency in high-performance piping systems. Manufactured from premium-grade stainless steel (304, 316, 316L), this reducer delivers exceptional corrosion resistance, durability, and structural integrity for demanding applications across oil & gas, chemical processing, power generation, and water treatment industries.
Key Product Advantages:
- Precision Flow Control: The concentric design maintains a uniform centerline, minimizing turbulence and pressure drop for enhanced system efficiency.
- Robust Construction: Fabricated to ASME B16.9, ANSI, and ASTM standards, our reducers feature high-quality butt-welded ends for leak-proof, high-pressure performance.
- Material Excellence: Available in SCH 10S, SCH 40, SCH 80, and custom schedules, with optional surface treatments for specialized applications.
Manufacturing Excellence & Supply Chain Strength. As an industry-leading manufacturer, we combine state-of-the-art production facilities with rigorous quality control to deliver fittings that exceed international standards. Our extensive inventory of standard and specialized sizes ensures immediate availability, significantly reducing lead times for critical projects.
►Industry-specific attributes
| Place of Origin | China |
| Brand name | Yuhao |
| Connectivity | Welding |
| Size | 1/2" up to 110" |
| Wall thickness | SCH 5s-SCH XXS |
| customized Support | ASTM DIN EN BS JIS GOST etc. |
| Surface treatment | Sand blasting, Roll blasting, Pickled or Polished |
| Type | Concentric, Eccentric |
| Pressure | High Pressure |
| Packing | Cartons, Pallet, Cases |
►Product Size
| DN | NPS | OD | Nominal Wall Thickness | ||||||||||
| Schss | Sch10S | Sch405 | Sch8os | Sch10 | Sch20 | Sch30 | STD | Sch40 | Sch60 | XS | |||
| 6 | 1/8 | 10.3 | - | 1.24 | 1.73 | 2.41 | - | - | - | 1.73 | 1.73 | - | 2.41 |
| 8 | 1/4 | 13.7 | 1.65 | 2.24 | 3.02 | - | - | - | 2.24 | 2.24 | - | 3.02 | |
| 10 | 3/8 | 17.1 | - | 1.65 | 2.31 | 3.2 | - | - | - | 2.31 | 2.31 | - | 3.2 |
| 15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 3.73 | - | - | - | 2.77 | 2.77 | - | 3.73 |
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 3.91 | - | - | - | 2.87 | 2.87 | - | 3.91 |
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 4.55 | - | - | - | 3.38 | 3.38 | - | 4.55 |
| 32 | 1 1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 4.85 | - | - | - | 3.56 | 3.56 | - | 4.85 |
| 40 | 1 1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 5.08 | - | - | - | 3.68 | 3.68 | - | 5.08 |
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 5.54 | - | - | - | 3.91 | 3.91 | - | 5.54 |
| 65 | 2 1/2 | 73 | 2.11 | 3.05 | 5.16 | 7.01 | - | - | - | 5.16 | 5.16 | - | 7.01 |
| 80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 7.62 | - | - | - | 5.49 | 5.49 | - | 7.62 |
| 90 | 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 8.08 | - | - | - | 5.74 | 5.74 | - | 8.08 |
| 100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 | 8.56 | - | - | - | 6.02 | 6.02 | - | 8.56 |
| 125 | 5 | 141.3 | 2.77 | 3.4 | 6.55 | 9.53 | - | - | - | 6.55 | 6.55 | - | 9.53 |
| 150 | 6 | 168.3 | 2.77 | 3.4 | 7.11 | 10.97 | - | - | - | 7.11 | 7.11 | - | 10.97 |
| 200 | 8 | 219.1 | 2.77 | 3.76 | 8.18 | 12.7 | - | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 |
| 250 | 10 | 273 | 3.4 | 4.19 | 9.27 | 12.7 | - | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 |
| 300 | 12 | 323.8 | 3.96 | 4.57 | 9.53 | 12.7 | - | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 |
| 350 | 14 | 355.6 | 3.96 | 4.78 | - | - | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 |
| 400 | 16 | 406.4 | 4.19 | 4.78 | - | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 | |
| 450 | 18 | 457 | 4.19 | 4.78 | - | - | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 |
| 500 | 20 | 508 | 4.78 | 5.54 | - | - | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 |

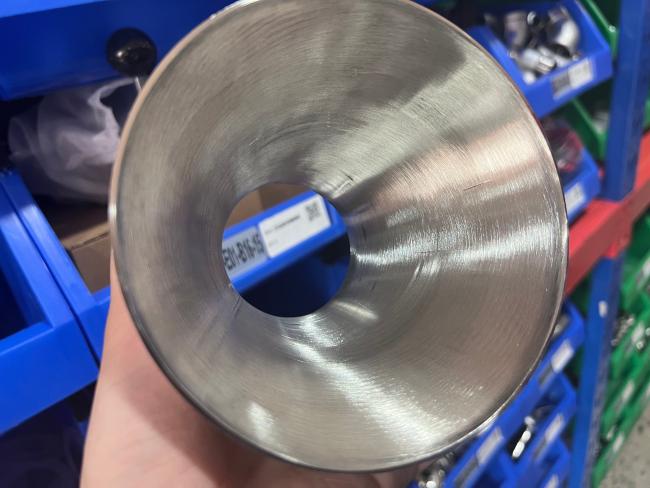

►Shot Shoot
►FAQ
Q1: How is the quality?
A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q2: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q3: Can I customize products?
A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.
Q4: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: How long is your production lead time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
