Sch5-SCH160 Stainless Steel Butt Welded Fittings Concentric Reducer
Sch5-SCH160 Stainless Steel Butt Welded Fittings concentric weld reducer
►Products Description
Our stainless steel butt welded concentric reducers are engineered to perfection, ensuring seamless diameter transitions in critical piping systems. Manufactured from premium 304/316/316L stainless steel, these reducers deliver:
- Optimal Flow Performance: True concentric design minimizes turbulence and pressure drop
- Superior Durability: Excellent corrosion and erosion resistance for harsh environments
- Precision Engineering: Strict compliance with ASME B16.9, ANSI B16.25 standards
- Versatile Applications: Ideal for oil & gas, chemical, pharmaceutical, and power industries
Manufacturing Superiority:
As an industry-leading manufacturer, we offer:
Advanced Production Capabilities:
- State-of-the-art CNC machining centers
- Automated orbital welding systems
- Full-range hydrostatic testing facilities
Uncompromising Quality Assurance:
- 100% material certification (MTC)
- Dimensional verification per ASTM standards
- Non-destructive testing (RT/UT) available
Inventory & Supply Advantages:
Our massive inventory ensures you get what you need, when you need it:
- Comprehensive Size Range: 1/2" to 48" available from stock
- Full Schedule Coverage: SCH 5S through SCH XXS
- Immediate Availability: Most standard items ship within 24 hours
- Custom Solutions: Special sizes and materials with fast turnaround
►Industry-specific attributes
| Place of Origin | China |
| Brand name | Yuhao |
| Connectivity | Welding |
| Size | 1/2" up to 110" |
| Wall thickness | SCH 5s-SCH XXS |
| customized Support | ASTM DIN EN BS JIS GOST etc. |
| Surface treatment | Sand blasting, Roll blasting, Pickled or Polished |
| Type | Concentric, Eccentric |
| Pressure | High Pressure |
| Packing | Cartons, Pallet, Cases |
►Product Size
| DN | NPS | OD | Nominal Wall Thickness | ||||||||||
| Schss | Sch10S | Sch405 | Sch8os | Sch10 | Sch20 | Sch30 | STD | Sch40 | Sch60 | XS | |||
| 6 | 1/8 | 10.3 | - | 1.24 | 1.73 | 2.41 | - | - | - | 1.73 | 1.73 | - | 2.41 |
| 8 | 1/4 | 13.7 | 1.65 | 2.24 | 3.02 | - | - | - | 2.24 | 2.24 | - | 3.02 | |
| 10 | 3/8 | 17.1 | - | 1.65 | 2.31 | 3.2 | - | - | - | 2.31 | 2.31 | - | 3.2 |
| 15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 3.73 | - | - | - | 2.77 | 2.77 | - | 3.73 |
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 3.91 | - | - | - | 2.87 | 2.87 | - | 3.91 |
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 4.55 | - | - | - | 3.38 | 3.38 | - | 4.55 |
| 32 | 1 1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 4.85 | - | - | - | 3.56 | 3.56 | - | 4.85 |
| 40 | 1 1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 5.08 | - | - | - | 3.68 | 3.68 | - | 5.08 |
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 5.54 | - | - | - | 3.91 | 3.91 | - | 5.54 |
| 65 | 2 1/2 | 73 | 2.11 | 3.05 | 5.16 | 7.01 | - | - | - | 5.16 | 5.16 | - | 7.01 |
| 80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 7.62 | - | - | - | 5.49 | 5.49 | - | 7.62 |
| 90 | 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 8.08 | - | - | - | 5.74 | 5.74 | - | 8.08 |
| 100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 | 8.56 | - | - | - | 6.02 | 6.02 | - | 8.56 |
| 125 | 5 | 141.3 | 2.77 | 3.4 | 6.55 | 9.53 | - | - | - | 6.55 | 6.55 | - | 9.53 |
| 150 | 6 | 168.3 | 2.77 | 3.4 | 7.11 | 10.97 | - | - | - | 7.11 | 7.11 | - | 10.97 |
| 200 | 8 | 219.1 | 2.77 | 3.76 | 8.18 | 12.7 | - | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 |
| 250 | 10 | 273 | 3.4 | 4.19 | 9.27 | 12.7 | - | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 |
| 300 | 12 | 323.8 | 3.96 | 4.57 | 9.53 | 12.7 | - | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 |
| 350 | 14 | 355.6 | 3.96 | 4.78 | - | - | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 |
| 400 | 16 | 406.4 | 4.19 | 4.78 | - | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 | |
| 450 | 18 | 457 | 4.19 | 4.78 | - | - | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 |
| 500 | 20 | 508 | 4.78 | 5.54 | - | - | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 |

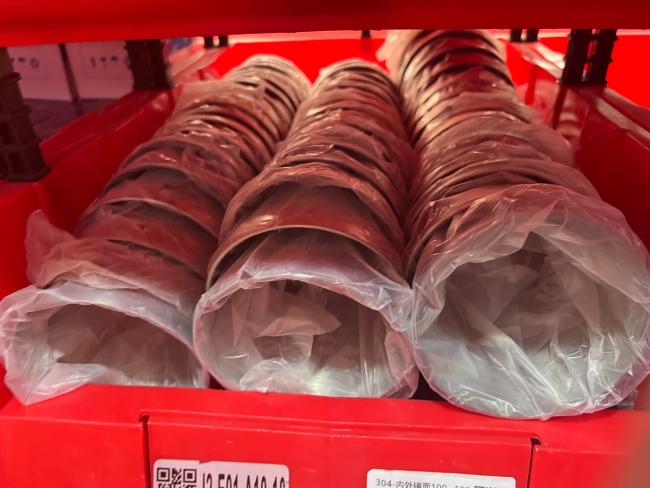

►Shot Shoot
►FAQ
Q1: How is the quality?
A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q2: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q3: Can I customize products?
A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.
Q4: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: How long is your production lead time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
