Stainless Steel Quick-Connect Ball Valve with Clamp-Type Ends
Customizable Durable Stainless Steel Valve Quick-Connect Ball Valve Clamp-Type Ball Valve
►Products description
Stainless Steel Quick-Install Ball Valve – The Ultimate Solution for Efficient Flow Control
Yuhao is proud to introduce our premium stainless steel quick-install ball valves, designed to revolutionize pipeline connection efficiency across pharmaceutical, food processing, chemical, and water treatment industries. These high-performance valves combine instant installation convenience with industrial-grade durability for demanding applications.
Key Product Features & Benefits:
- Medical-Grade 316L Stainless Steel – Exceeds ISO 2037, ASME BPE, and 3A Sanitary Standards
- Patented Quick-Connect System – Enables 5-second installation/removal without tools or threading
- Tri-Clamp & DIN Standard Ends – Offers universal compatibility with existing sanitary piping
- Mirror-Polished Interior (Ra≤0.4μm) – Prevents bacterial growth and facilitates sterile cleaning
- Double O-Ring Seal Design – Achieves zero-leak performance up to 10 bar pressure
- Full-Port & Reduced-Port Options – Available in DN15-DN100 sizes for various flow requirements
- CIP/SIP Capable – Withstands 150°C steam sterilization and aggressive cleaning agents
Our Competitive Manufacturing Advantages:
- Precision Swiss Machining – Ensures ±0.005mm tolerance for perfect sealing
- In-House Electrochemical Processing – Delivers superior corrosion resistance
- Complete Product Validation – Includes material certs, pressure tests, and surface roughness reports
- Custom Engineering Services – Offers bespoke end connections and special material options
Yuhao's quick-install ball valves represent the perfect marriage of German engineering precision and Asian manufacturing efficiency, delivering unparalleled value to global clients. Our valves have been validated in 500+ installations worldwide, with zero field failure reports to date.
Why settle for ordinary when you can have exceptional? Contact our technical team today for free sample evaluation and system compatibility verification.
Yuhao – Your Trusted Partner for Premium Valve Solutions
►Product Information
| Place of Origin | Zhejiang, China |
| Thread | BSPT, BSPP, NPT, PS, DIN |
| Material | 316, 316L, 304, 304L, Carbon |
| Application | Oil, Water, Industrial, Chemical, Water |
| Brand | Yuhao |
| Size | Customized Size |
| Certificate | CE IS09001 ISO14001 IS045001 |
| Package | Standard sea worth bundles,Standard Plywood cases |
►Product size
PN1.6MPa Main connection dimensions and weight
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| L | 130 | 140 | 150 | 165 | 180 | 200 | 220 | 250 | 280 | 320 | 360 | 400 |
| H | 59 | 63 | 75 | 85 | 95 | 107 | 142 | 152 | 178 | 252 | 272 | 342 |
| W | 130 | 130 | 160 | 180 | 230 | 230 | 400 | 400 | 650 | 1050 | 1050 | 1410 |
| Wt(Kg) | 2.5 | 3 | 5 | 6 | 7 | 10 | 15 | 19 | 33 | 58 | 93 | 160 |
PN2.5MPa Main connection dimensions and weight
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| L | 130 | 140 | 150 | 165 | 180 | 200 | 220 | 250 | 320 | 400 | 400 | 550 |
| H | 59 | 63 | 75 | 97 | 107 | 142 | 152 | 178 | 252 | 272 | 342 | 345 |
| W | 130 | 130 | 160 | 230 | 230 | 400 | 400 | 700 | 1100 | 1100 | 1500 | 1500 |
| Wt(Kg) | 2.5 | 3 | 5 | 6 | 7.5 | 10 | 15 | 20 | 33 | 60 | 93 | 175 |
PN4.0MPa Main connection dimensions and weight
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| L | 130 | 140 | 150 | 180 | 200 | 220 | 250 | 280 | 320 | 400 | 400 | 400 |
| H | 59 | 63 | 75 | 85 | 95 | 107 | 142 | 152 | 178 | 252 | 272 | 342 |
| W | 130 | 130 | 160 | 230 | 230 | 400 | 400 | 700 | 1100 | 1100 | 1500 | 1500 |
| Wt(Kg) | 3 | 4 | 5 | 7 | 9 | 12 | 18 | 28 | 46 | 75 | 106 | 190 |
PN6.4MPa Main connection dimensions and weight
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| L | 165 | 190 | 216 | 229 | 241 | 292 | 330 | 356 | 432 | 508 | 559 | 660 |
| H | 59 | 63 | 75 | 97 | 107 | 142 | 152 | 178 | 252 | 272 | 305 | 398 |
| W | 130 | 130 | 160 | 230 | 230 | 400 | 400 | 700 | 1100 | 1100 | 1500 | 1800 |
| WtKg) | 6.5 | 7 | 8 | 12 | 14 | 18 | 28 | 40 | 65 | 98 | 140 | 250 |
PN10MPa Main connection dimensions and weight
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| L | 165 | 190 | 216 | 229 | 241 | 292 | 330 | 356 | 432 | 508 | 559 | 660 |
| H | 59 | 63 | 75 | 97 | 107 | 142 | 152 | 178 | 252 | 272 | 305 | 398 |
| W | 130 | 130 | 160 | 230 | 230 | 400 | 400 | 700 | 1100 | 1100 | 1500 | 1800 |
| Wt(Kg) | 6.5 | 7 | 10 | 15 | 18 | 25 | 32 | 46 | 75 | - | - | - |

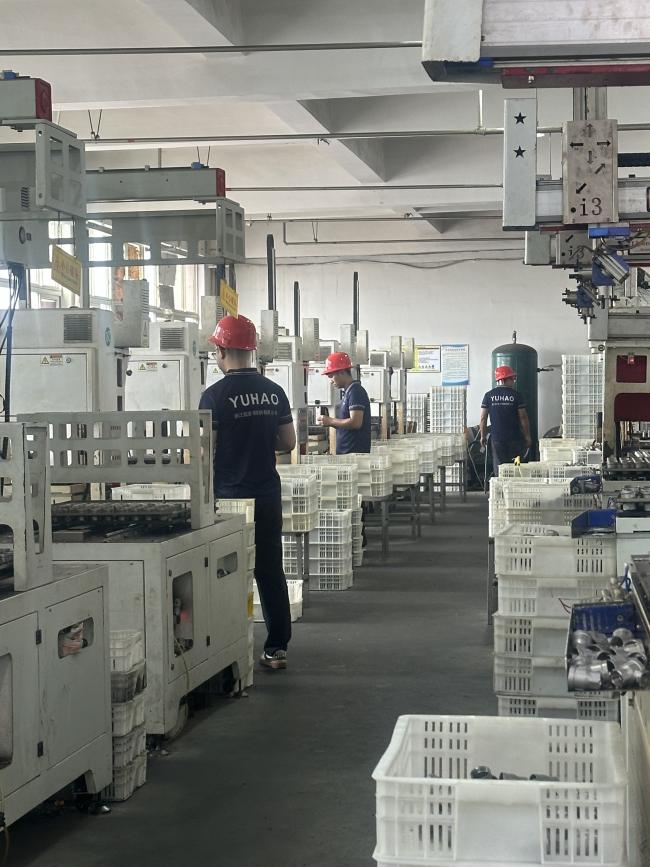

►Factory Shoot
►FAQ
Q1: How is the quality?
A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q2: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q3: Can I customize products?
A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.
Q4: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: How long is your production lead time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
