Factory price automatic 3 fold napkin paper making machine for manufacturing plants
XY-OQ-7000B Factory price automatic 3 fold napkin paper making machine for manufacturing plants
Production Describe
Multi-color napkin paper machine prints various kinds of colors and designs on cut raw material, it and be square and rectangle napkin after embossing, folding, counting, and cutting.
1. Adopt a flexible printing unit and high-process ceramic anilox roller, which makes the water ink equally spread and prints out extract and stereo patterns.
2. Raw material through a synchronous belt and comes into the calendaring unit and into the embossing unit. There is a tension unit between raw material and calendaring, raw material and embossing.
3. Folding wheel automatic stop machine protection unit.
4. Automatic rectification system.
5. Automatic constant temperature drying system.
6. Raw material broken protection unit. Automatic speed-down unit when raw material runs out. Folding roller stop protection unit.
7. Water ink circulation system.
8. Full-automatic unreel control system: tracks the speed of the main machine by computer, transmits to the servo system, the servo system conveys paper to the printing system accurately according to the order of the computer and makes the perfect product.
| Printing unit | 1-3 colors as per requirement |
| Embossing unit | Full or border pattern as per requirement |
| Parent roll diameter | 1200mm |
| Installed power | 4.5KW (380V 50HZ 3Phases) |
| Speed | 500 sheets/min |
| Machine weight | 2000KG |
| Certification | CE |
| Finished Products | 1/6, 1/8 fold napkin paper |

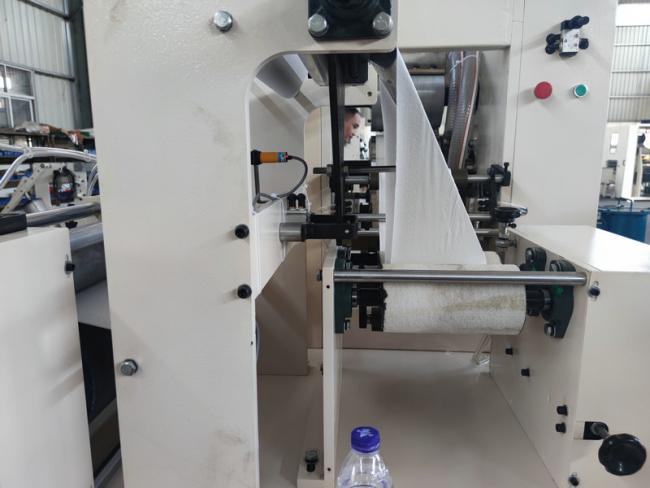

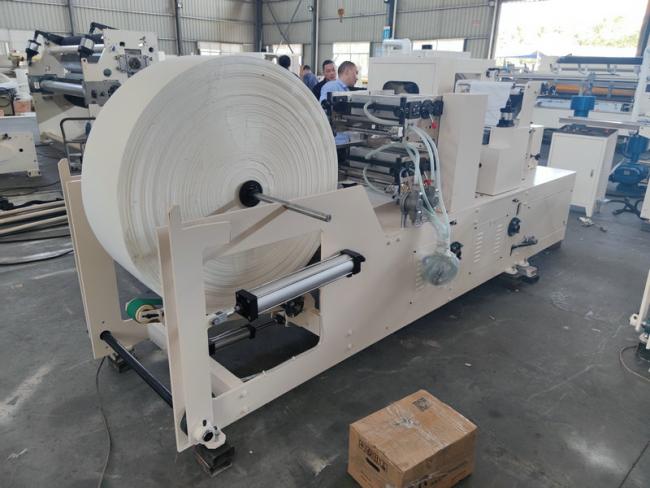

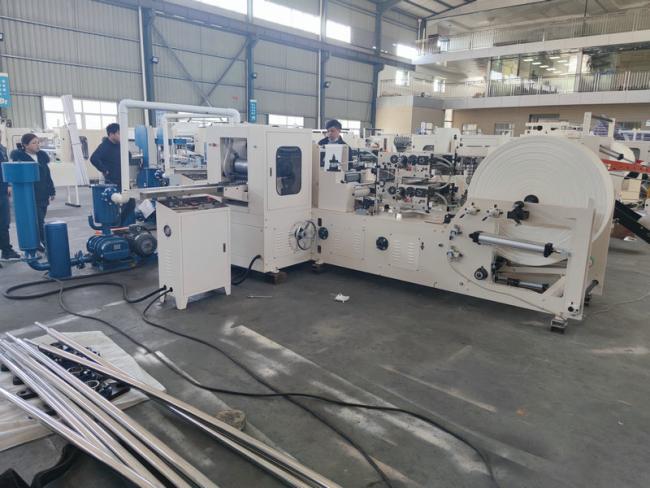

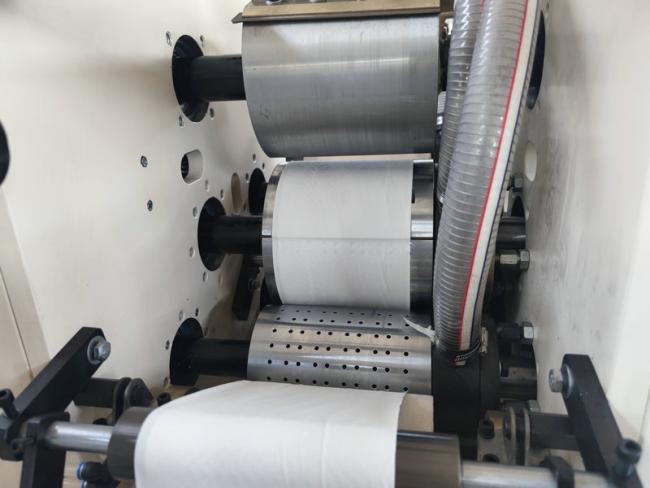

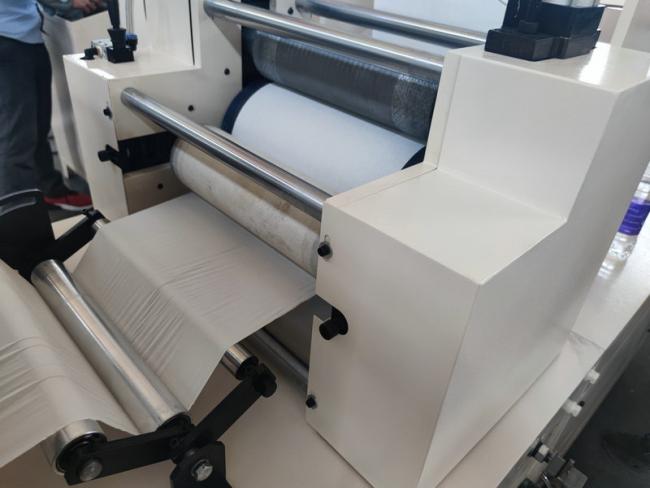

Detailed Pictures
After-sales service
Why choose machines from Hefei Purple Horn E-Commerce Co., Ltd.?
1. Good quality machine at a reasonable price.
2. Good service: Any questions from customers will be replied within 24 hours.
For all the machines we sell, we will offer a one-year guarantee for free and all life-long maintenance.
We deliver a USB dish of Operation Video with the machine, which will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if needed).
The buyer shall pay for their round-trip air tickets from our factory in China to the buyer's factory, the charge of visa, food, transportation, and accommodation in the buyer's city.
Company Profiles
Hefei Purple Horn E-Commerce Co., Ltd. is good at Paper Converting Machinery Manufacturing.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
