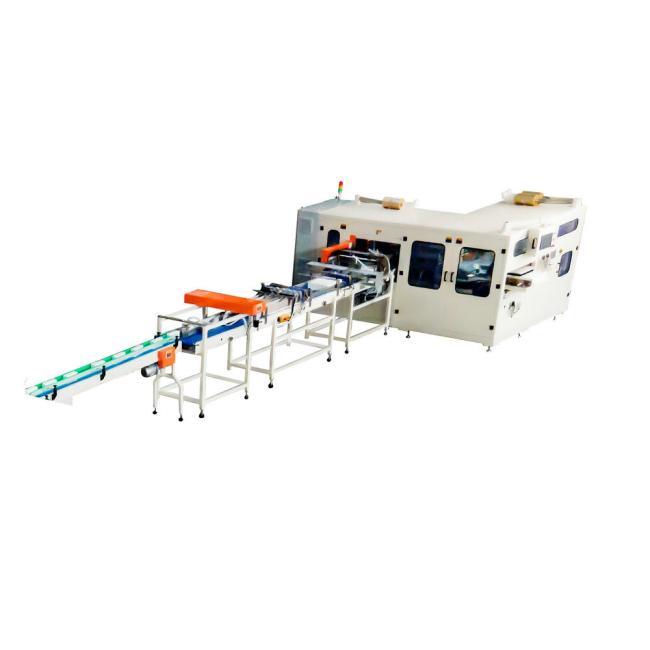

High Production Automatic Soft Drawing Facial Tissue Bundle Packing Machine Equipment
XY-BT-299 High Production Automatic Soft Drawing Facial Tissue Bundle Packing Machine Equipment
Characteristics:
1.Full automatic run. High speed.Suitable for packing bundling rolls(6,8,10 bags in one bag).
2.Can be connected with log saw or single roll wrapping machine.
3.Servo system,PLC controlled.
4.Auto feeding, auto adjustment.Adopting high quality sensors.
5.Operated by color touch screen display.
6.Emergency stop/ pause function, safety alarm system, air and electric power protection system.
7.Adopting constant temperature sealing and cutting system.
Main Technical Parameters:
| Capacity | 18 bundling bags/min |
| Power supply | 17 Kw 380V 50HZ |
| Air supply | 0.5-0.7MPA(Supplied by user) |
| Feeding mode | Full automatic 2 lanes feeding system |
| Suitable for packing | Bundling facial tissue |
| Bag size/Rolls per bag |
L600*W(150-420)*H(80-105) mm 6,8,10 bag/bundling bag |
| Bundling bag mode | Prefabricated bag with air-bleed hole |
| Bundling bag material | PE, thickness: ≥0.05mm |
|
undling bag storing quantity |
≤500 pcs |
|
Machine weight |
3500kg |
|
Machine size |
L6800*W3700*H1600 mm |

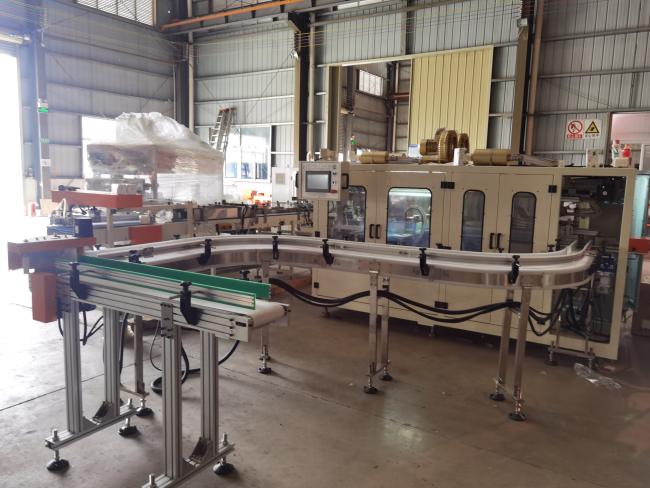

Detail Pictures:
FAQ:
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
