Semi Automatic Box Facial Tissue Packing Machine 35-40 Boxes/Min
XY-TN-117 Low Price Semi-Automatic Box Tissue Packaging Machine
Product Description
A semi-automatic pasting machine with hot melt glue is one of the series of sealing boxes developed by our company, which is developed and improved continuously advantage. This product is suitable for food, medicine, paper towels, toys, electronics, and other packaging industries, with environmental protection, security, and efficient advantages. It is the first choice in the packing industry nowadays
The products presented to your company are our fifth generation products. This product will be modified in the first four generations according to products feedback of customers in actual use. The improved paste box machine has the following advantages:
1. The overall selection of materials in line with environmental protection requirements, the use of food-grade standards for the overall appearance of the processing, and the use of stainless steel as a large area of equipment components.
2. The machine transfer part adopts two conveying parts (clamping and plane conveying), which are responsible for bringing the carton to the dispensing point. The plane conveying can better cooperate with the efficiency of manual laying and reduce manual fatigue.
3. Convenient and quick transition. The new adjustment bit is changed to automatic motor adjustment, which reduces the difficulty of adjusting the machine.
4. Fully enclosed structure, the appearance of simple fashion.
5. Optimize power consumption, and conform new concept of energy saving.
6. Simple operation, high efficiency, low input costs.
Product Parameter
| speed | 35-40 boxes/min(depending on the operator proficiency |
| power | 3.2KW 220V 50HZ |
| the highest temperature | 230ºC |
| air pressure | 0.6Mpa-0.4Mpa,about 400L/h(normal operation) |
| packing size | 80-300*40-200*25-120mm(customize |
| weight of high | 300KG |
| overall size | 1750*850*1300 |

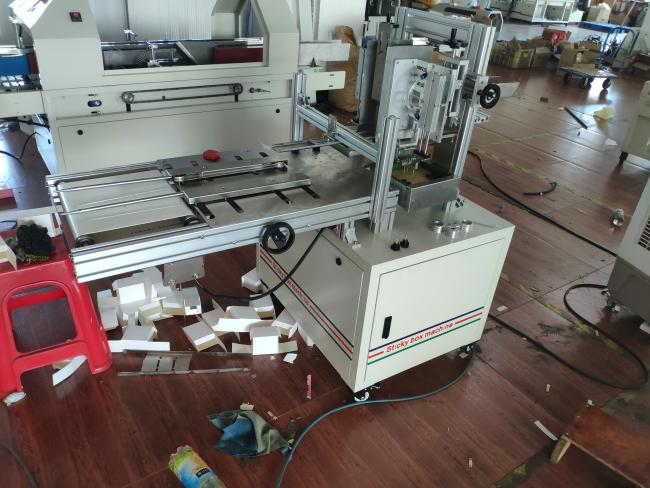

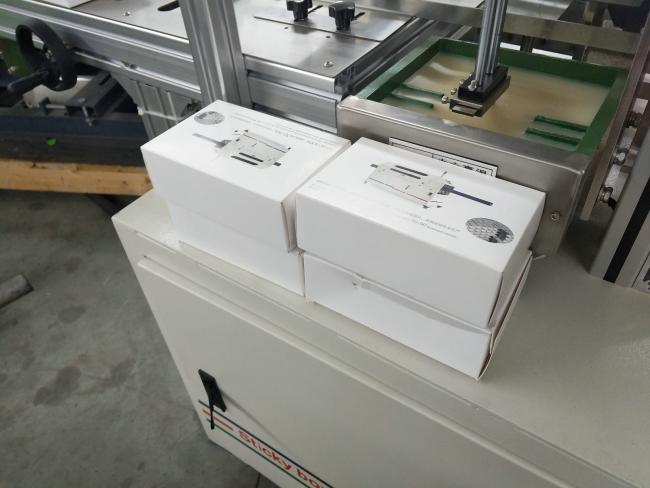

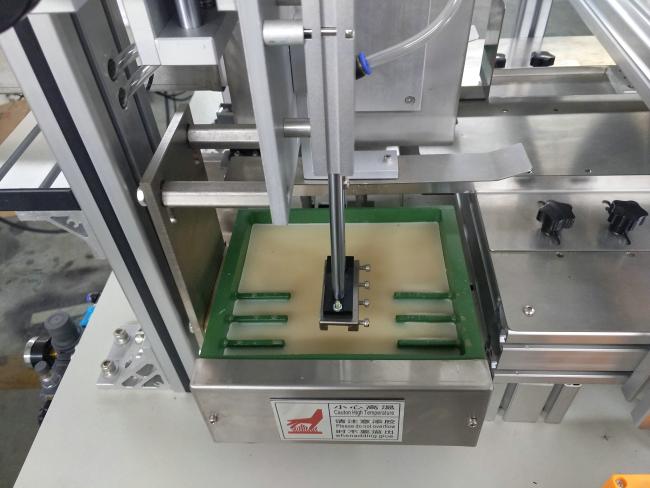

Detailed Pictures

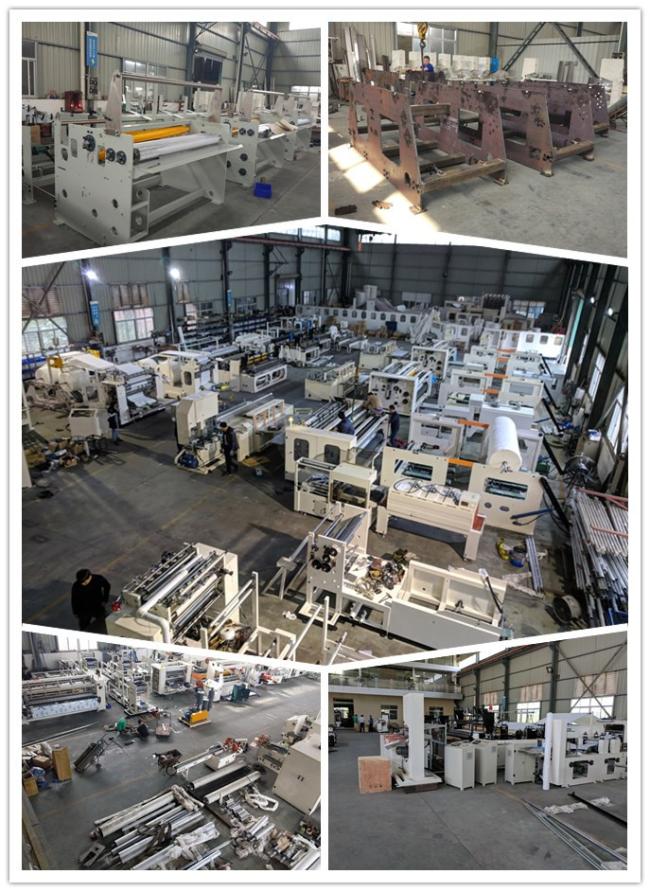

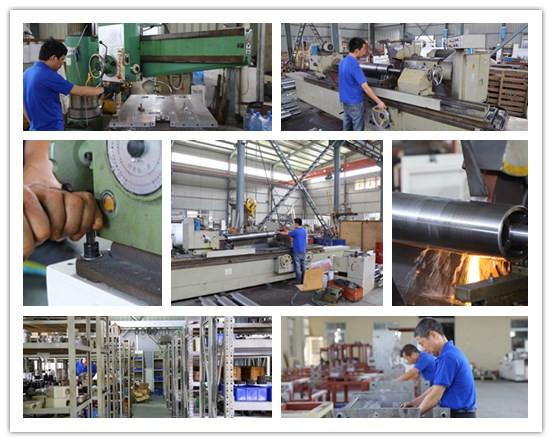

Workshop
Aftersale service
Good service: Any question from a customer will be reply within 24 hours
For all the machines we sell, we will offer a one-year guarantee for free and all-life maintenance.
We deliver a DVD of Operation Video with the machine, it will help customer to work the machine easily.
After the machines arrive, the sellers shall send a technician to install the production line(if needed). The buyer shall pay for their round-trip air tickets from the China factory to the buyer's factory, the charge of visa, food, transportation, and accommodation in the buyer's city.
Company Information
Hefei Purple Horn E-Commerce Co., Ltd. is good at Paper Converting Machinery manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
If you need more information about this machine, please feel free to contact me!
Welcome to contact us to get more details!
We can design the machine according to your request.
