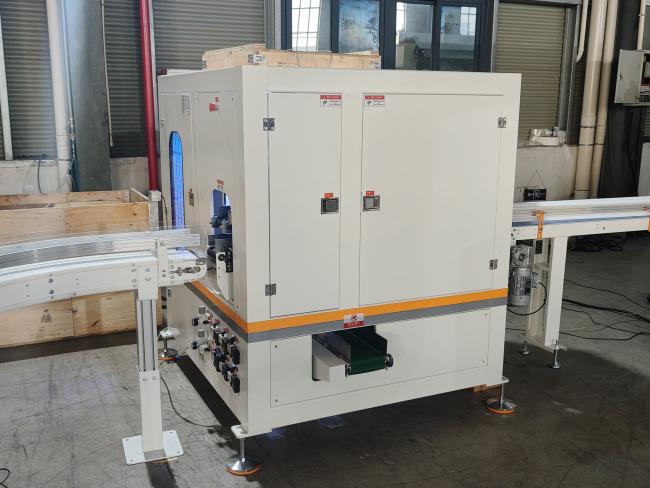

High Capacity Facial Tissue Paper And Hand Towel Log Saw Cutting Machine
High capacity facial tissue paper and hand towel log saw cutting machine
Feature And Functions:
1. This equipment is used to cutting folded tissue continuously and automatically. Such as boxed facial tissue or folded towel paper.
2. The design and manufacture of machine adopt the newest electricity technology and servo driving technology, which improve the stability of cutting much and improve the quality of cutting of tissue.

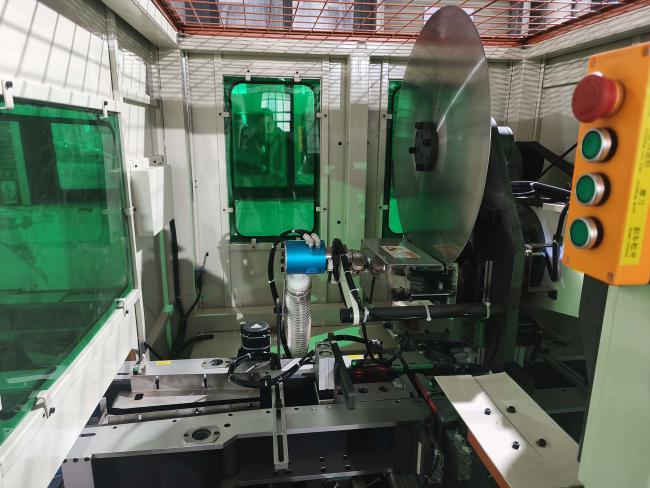

3. The cutting system is under perfect designing with auto grinding system, while the grinding bowl can count precisely to grind the blade in time as per the cutting times;
4. It is very simple and convenient to adjust to cutting different size facial tissue. Paper clip cutting part can be adjusted anytime for different size facial tissue without change other spare parts.
5. Adopt PLC controller and touching screener operation. The blade grinding frequency, the cutting speed as well as the cutting length is adjustable on PLC screener.
|
Model
|
XY-GU-281
|
|
Cutting size scope
|
Height 20-120mm adjustable,width 80-120mm
|
|
Cutting length
|
Setting freely
|
|
Power supply
|
11KW 380V 50Hz
|
|
Design speed
|
100-150cut/min
|
|
Machine size
|
L1700*W1500*H2000mm
|
|
Weight
|
2800KG
|
|
Round blade outer diameter
|
Φ610mm
|
|
Air pressure
|
0.5~0.8MPa
|
|
Paper cutting circular knife top speed
|
980R/min
|
|
Designation
|
Parameter values
|
|
Remark
|
We can design it to be double channel cutting
|
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
After Sales Service
(1), All our machine will have Two years guarantee
(2), Within two year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by DHL or Fedex immediately FREE OF CHARGE.
(3), After two year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
(4), After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Purple Horn Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4) Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
