Parker 316L Stainless Steel Diaphragm Valves NOVAL Series Compact Size
Product Description:
Parker Hannifin Veriflo NOVAL Diaphragm Valve: Cost - Effective and Versatile Discover the Parker Hannifin Corporation’s Veriflo Division's NOVAL diaphragm valve, a budget - friendly yet high - performing solution. Ideal for regulator outlet valves, gas control panels, and analyzer sampling systems, it offers great value for various industrial applications. The NOVAL features a robust construction, with a body made of either 316L stainless steel or brass, ensuring durability in different environments. The variety of seat materials and an Elgiloy® diaphragm with an outboard metal - to - metal seal guarantee excellent leak integrity, enhancing safety and reliability. Whether you're in the chemical, energy, or analytical industry, the NOVAL provides precise fluid control. Its economical design doesn't compromise on performance, making it a top choice for those seeking an efficient and cost - effective valve solution. Trust NOVAL for seamless operation and long - lasting quality.
Product application:
Outlet valve for a pressure regulator.
Laboratory shut-off valve.
Gas control panels.
Sampling systems and gas analyzers.
Research facilities.
Sample container shut-off valve.
Product features:
- High Cycle Life
- Compact Size
- Positive, consistent shutoff
- Metal-to-metal seal to atmosphere
- 02 cleaned
- Low internal volume
- The closed position does not vary with the lifeof the product
Specifications:
| Body | 316L Stainless Steel, Brass, Monel® |
| Seat | PCTFE optional PEEK™, Vespel® |
| Diaphragm | Elgiloy® or equivalent |
| Specifications - Materials of Construction - Non - wetted | |
| Nut | 316L Stainless Steel |
| Lever (blue) | Aluminum Powder Coated |
| Operating Conditions | |
| Operating Pressure | Vacuum to 3500 psig (241 barg) |
| Design Proof Pressure | 5250 psig (362 barg) |
| Design Burst Pressure | 10,500 psig (724 barg) |
| Temperature | -15°F to 150°F (-26°C to 66°C) |
| Bake Out in the open position | 250°F (121°C) |
| Functional Performance | |
| Flow capacity | Cv = .17 (SEMI Flow Coefficient Test #F-32-0998) |
| Maximum Inboard Design Leak Rate | Bubble Tight |
| Standard Connections | 1/4" NPT male and female, compression fittings |
| Internal Volume | Less than 1.0 cc |
| Approximate Weight | 9 oz. (.26 kg) |

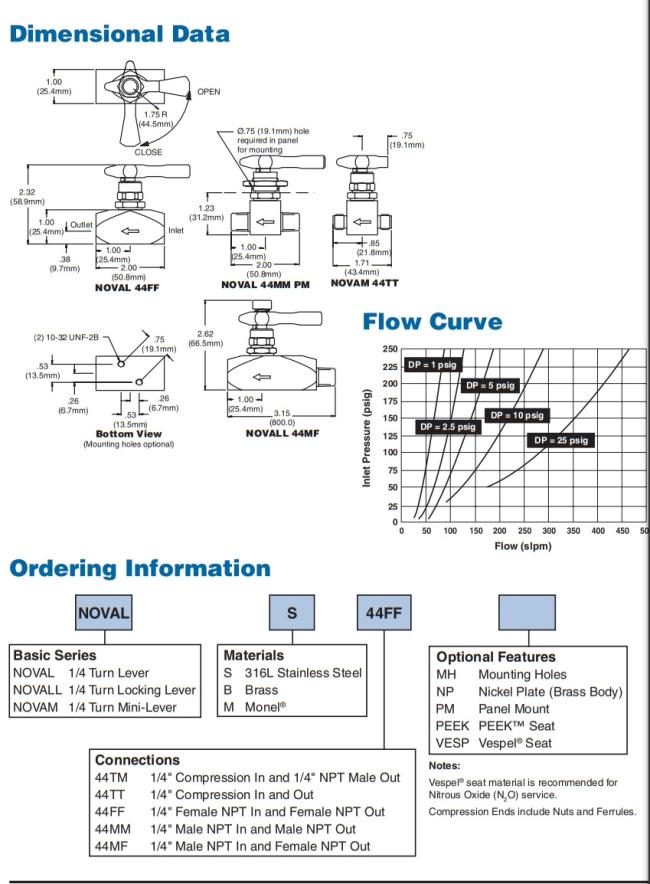

Product Details:
