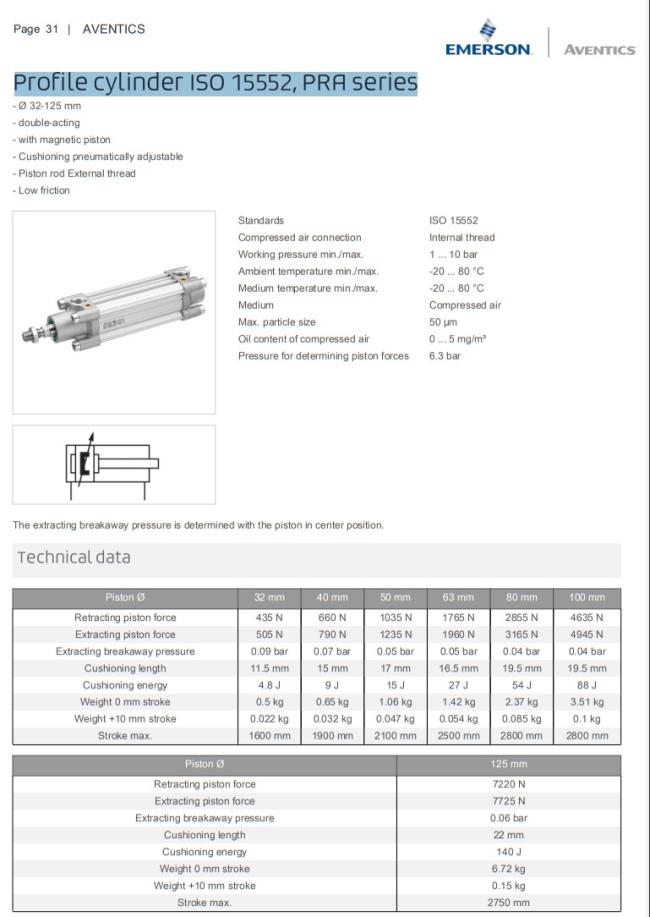

AVENTICS Series Profile Pneumatic Cylinder ISO 15552 PRA Series Stainless Steel
Product Description:
Product Features:
6 mm T-slots and 4 mm C-slots allow for a large number of sensors to be mounted easily, quickly and compactly
Available in piston diameters from 32 mm to 125 mm
Modular sealing system allows for adaptability
Advanced pneumatic end position cushioning
Additional elastic damping elements
Wide range of variants and accessories available in the configurator

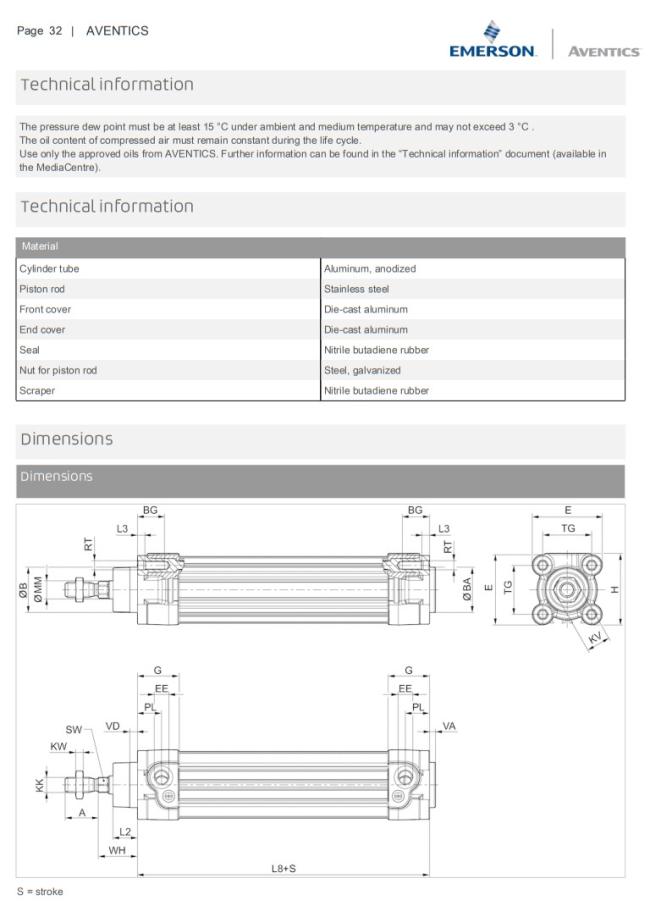

Technical information:
The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre).
Material:
| Cylinder tube | Aluminum, anodized |
| Piston rod | Stainless steel |
| Frontcover | Die-cast aluminum |
| End cover | Die-cast aluminum |
| Seal | Polyurethane |
| Nut for piston rod | Steel, galvanized |
| Scramer | Polyurethane |
