Metal AVENTICS Pneumatic Connection Round Plug Connectors For Dynamic Laying
Product Description:
The AVENTICS Series CON - RD – 8946202802 is a game - changer in industrial connectivity. This cable, part of the CON - RD series, comes with round plug connectors in popular types like M8x1, M12x1, or 7/8 - 16UNC. These connectors ensure a secure and reliable connection, withstanding harsh industrial conditions. Available in different lengths, the Series CON - RD – 8946202802 is highly adaptable to various installation setups. It's meticulously optimized for AVENTICS' focused valves with M8x1 or M12x1 connections, as well as electronic systems such as AES and G3. This makes it an ideal choice for applications in factory automation, pneumatic control systems, and other industrial processes. Trust AVENTICS for seamless integration and top - notch performance with the Series CON - RD – 8946202802.

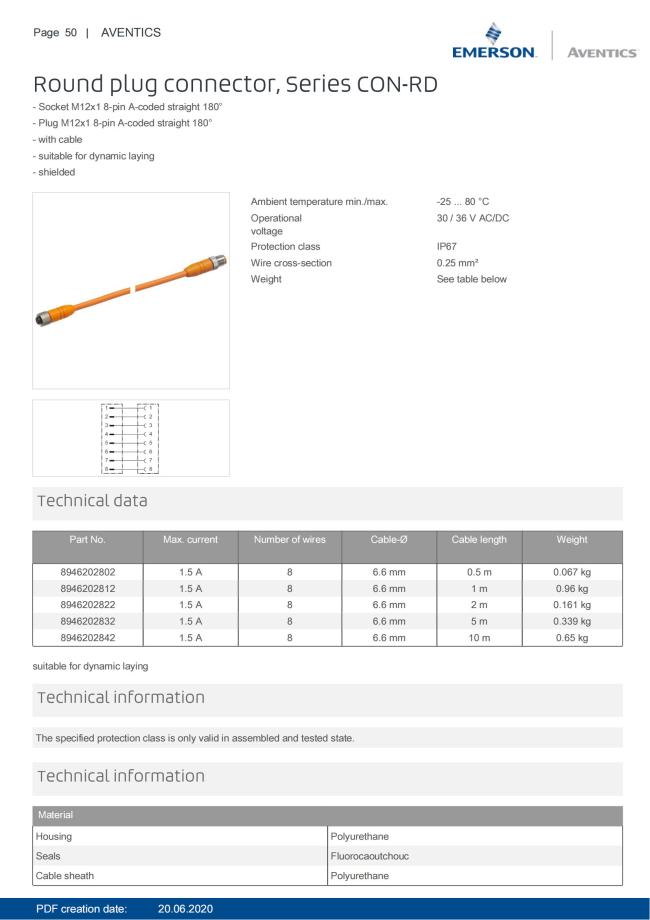

Product Features:
- - Socket M12x1 8-pin A-coded straight 180°
- - Plug M12x1 8-pin A-coded straight 180°
- - with cable
- - suitable for dynamic laying
- - shielded
| Cable length | 0.5 m |
| Shielding | shielded |
| Housing | Polyurethane |
| Sealing material | Fluorocaoutchouc |
| Cable | with cable |
| Protection class | IP67 |
| Coding | A-coded |
| Number of wires | 8-pin |
| Port size | M12x1 |
| Type | Plug |
| Ambient temperature min./max. | -25 … 80 °C |
| Operationalvoltage | 30 / 36 V AC/DC |
| Protection class | IP67 |
| Wire cross-section | 0,25 mm² |
| Weight | See table |
| The specified protection class is only valid in assembled and tested state. |
| Material |
|---|
| Housing | Polyurethane |
| Seals | Fluorocaoutchouc |
| Cable sheath | Polyurethane |
Product Details:
