20,000 Lumen WUXGA Laser Projector Outdoor/Indoor 3D Projection Mapping & Immersive Events
Price:
17250usd/pc
MOQ:
1pc
Delivery Time:
7-10 days
Brand:
SMX
Product Description

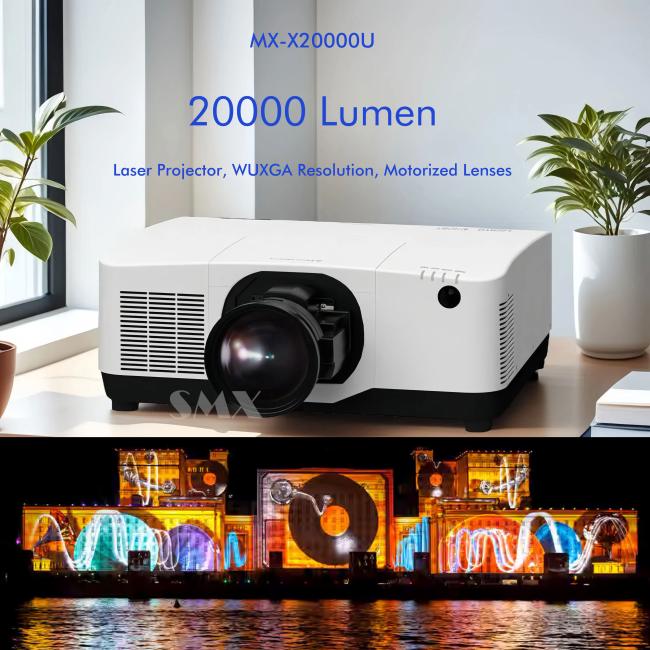

20,000 Lumen WUXGA Laser Projector Outdoor/Indoor 3D Projection Mapping & Immersive Events
The SMX MX-X20000U is a powerful 20,000-lumen laser projector with WUXGA resolution, delivering bright, crisp visuals for large venues and professional applications. Its durable laser light source offers 20,000+ hours of maintenance-free performance, while flexible installation, edge blending, and geometric correction make it ideal for auditoriums, museums, live events, and 3D mapping.
Key Features of the 20000 Lumen Laser Projector:
- 20,000 Lumens of Brightness: Provides vibrant, vivid images even in bright environments.
- WUXGA Resolution (1920 x 1200): Offers sharp, detailed visuals for an immersive viewing experience.
- Advanced Laser Technology: Ensures long-lasting performance, consistent color accuracy, and minimal maintenance.
- Robust Design: Built to withstand the rigors of professional settings and continuous operation.
Specification of the 20000 Lumen Laser Projector:
| Model | ||
| Model# | MX-X20000U | |
| Brightness(Lumen) | 20,000 | |
| Overall Spec | ||
| Panel | Display Panel | 3x1.0" |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Laser Lifetime | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| Projection Lens (STD) |
Len Model | MX-EG12ZLM |
| Zoom/Focus | Motorized | |
| Throw Ratio (16:10) | 1.24-2.01 @100inch | |
| F | 1.8-2.24 | |
| f | 27.7-44.3mm | |
| Zoom Ratio | 1.62 | |
| Screen size | 60-500 inch | |
| Lens Shift V | ±65% | |
| Lens Shift H | ±25% | |
| CR | Contrast Ratio(Min) | 3,000,000:1 |
| Noise | Noise(dB) | Full:46db / Normal:44db / Eco1:43db / Eco2:42db |
| Uniformity | Uniformity | TYP:90% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal/16:6 |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| Audio in(mini jack,3.5mm) | *1 (VGA/DVI-D share) | |
| DMX512 | *1 | |
| Output | HDMI 1.4(OUT) | *1 |
| Audio out (mini-jack,3.5mm) | *1 | |
| Control | RS232C (Input) | *1 |
| RS232C (Output) | *1 | |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Others | 360° projection | 360° Install |
| Edge Blending | Yes | |
| Adjustable brightness | Yes | |
| Lens position memory, lens locking function | Yes | |
| Dimension&Weight(Not including len) | ||
| Product Size (WxHxD mm) | 599X240.2X493.8mm | |
| Net. Weight (KG) | 28.9Kg | |
| Packaging (WxHxD mm) | 745**370*630 | |
| Gross. Weight (KG) | 34Kg | |
| Package | Carton | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessaries | Power cord (3m, Black), Remote control, HDMI Cable | |
Lenses for the 20000 Lumen Laser Projector:
| Model# | MX-EG05ZLM | MX-EG06ZLM | MX-EG08ZLM | MX-EG12ZLM | MX-EG20ZL | OL-EG39ZLM | |
| Image circle | Φ34.6 | Φ35.5 | Φ37.9 | Φ37.9 | Φ37.9 | Φ37.9 | |
| Lens Type | Zoom Lens ST3 | Zoom Lens ST2 | Zoom Lens ST1 | Zoom Lens STD | Zoom Lens L1 | Zoom Lens L2 | |
| Zoom/Focus | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized | |
| F#(Wide-Tele) | 1.85-2.20 | 1.84-2.25 | 1.80-2.24 | 1.80-2.24 | 1.84-2.58 | 1.85-2.42(TBD) | |
| f(mm) | 12.0-14.6 | 14.4-19.1 | 19.0-27.6 | 27.7-44.3 | 43.8-86.0 | 86.8-163.5(TBD) | |
| Throw ratio(16:10) | 0.53-0.65 | 0.65-0.87 | 0.86-1.25 | 1.24-2.01 | 1.98-3.95 | 3.95-7.50(TBD) | |
| Zoom Ratio | 1.23 | 1.34 | 1.45 | 1.62 | 1.99 | 1.90(TBD) | |

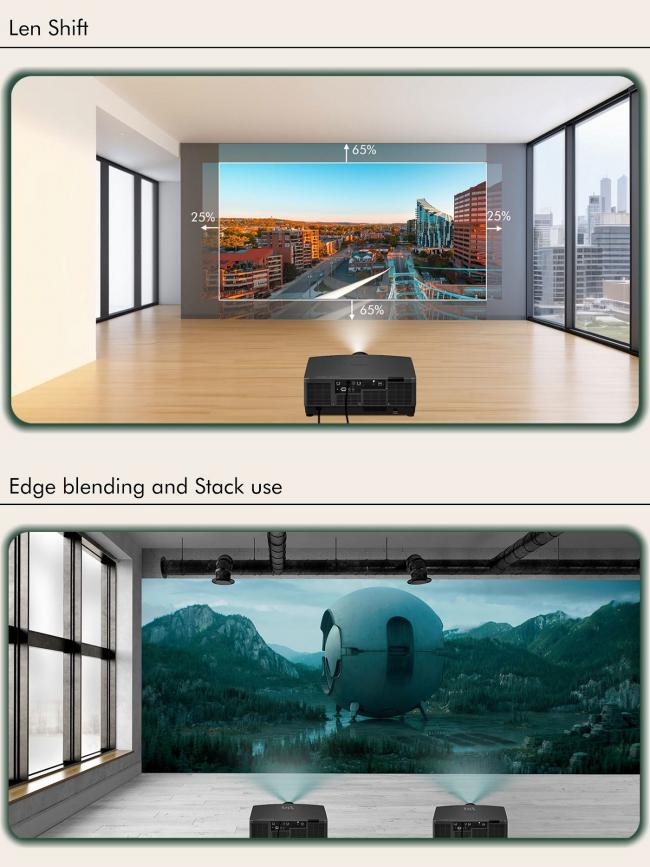

Len Shift & Edge Blending

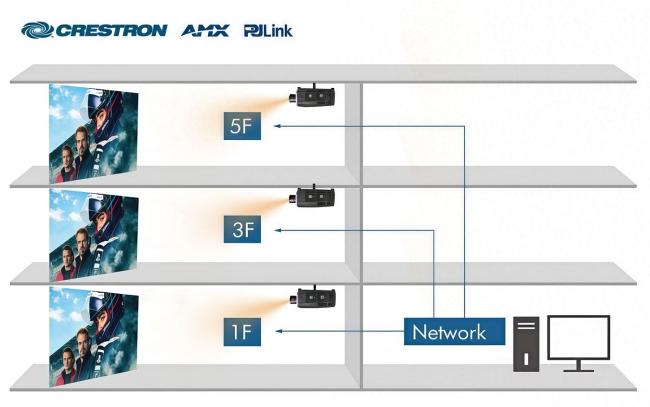

LAN Control:
Ideal Applications:

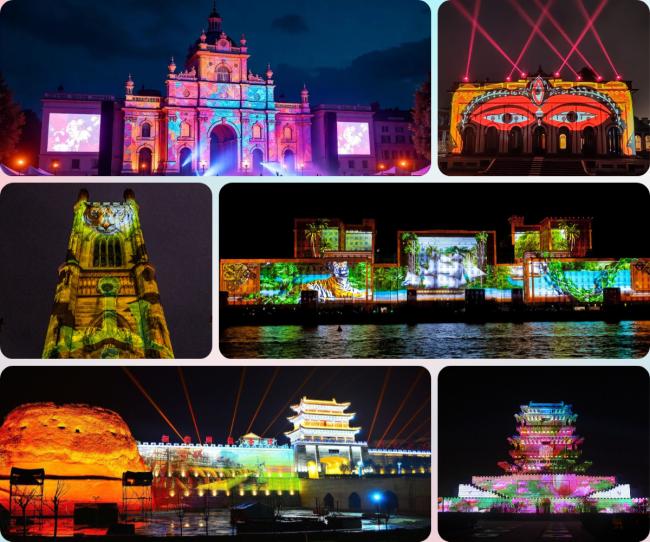

- 3D Projection Mapping: Transform buildings, landscapes, and structures into captivating visual displays with large-scale immersive projections.
- Live Events & Concerts: Enhance stage productions with dynamic visuals that engage and captivate audiences.
- Museums & Exhibitions: Create interactive and educational displays that improve visitor engagement and learning experiences.
- Theme Parks & Entertainment Venues: Provide unforgettable visual experiences with high-impact, high-resolution effects.
- Simulation & Training: Ideal for VR environments, flight simulators, and training simulations that require ultra-sharp imagery.
