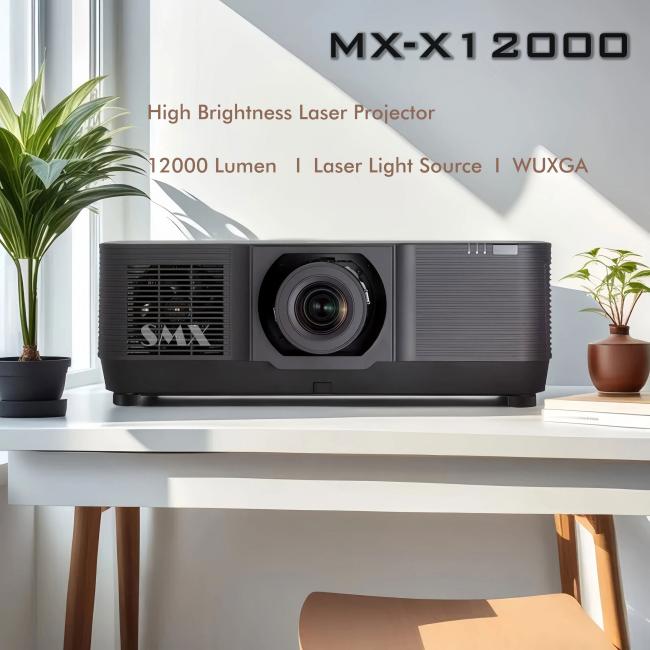

12000 Lumen 3LCD Laser Projector WUXGA 1920 X 1200 Long-lasting For Sharp, Detailed Images
Immerse Your Audience: The 12000 Lumen 3LCD Laser Projector
Experience unparalleled brightness, vibrant colors, and long-lasting performance with our cutting-edge 12000 Lumen 3LCD Laser Projector. Designed for demanding large-venue environments, this projector delivers stunning visuals that captivate and engage.
Unleash the full potential of your visual presentations with the 12000 Lumen 3LCD Laser Projector – a powerful, reliable, and versatile solution for the most demanding projection needs.
Key Features
- Exceptional Brightness: With 12,000 lumens, images stay vivid even in bright conditions.
- Advanced Technology: 3-chip LCD eliminates the "rainbow effect," delivering rich colors and accuracy.
- Laser Light Source Benefits: Long-lasting Reliability: Up to 30,000 hours of maintenance-free operation.
1. Instant On/Off: Quick setup and shutdown with no warm-up time.
2. Consistent Quality: Maintains brightness and color uniformity over time.
3. High Resolution: WUXGA (1920 x 1200) for sharp, detailed images
Flexible Installation
360-degree projection capabilities
Interchangeable lenses for various distances
Powered lens shift, zoom, and focus for precise positioning
Keystone Correction
Advanced Connectivity
Multiple inputs, including HDMI, VGA, RS232, Video, Audio In/Out, HD Base, and RJ45, ensure compatibility with diverse devices.
Ideal Applications:
Perfect for auditoriums, digital signage, experiential events, corporate presentations, houses of worship, and training simulations.
Specification:
| Model | ||
| Model | MX-X10000U | |
| Brightness | ||
| Brightness (ANSI Lumens ) |
10000lumen | |
| Light source | Laser | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.76" |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Light source Life time |
Normal mode | 20000hrs |
| ECO mode | 20000hrs | |

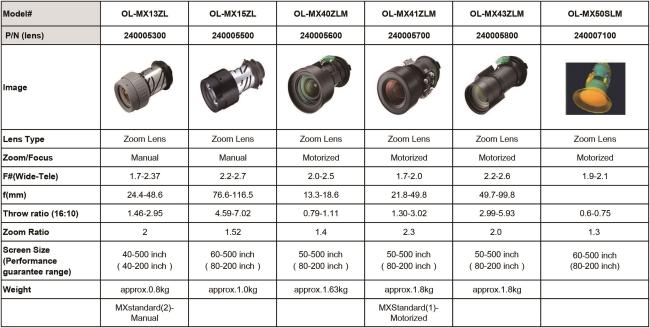

| Projection Lens | Len Type | Zoom Lens |
| Zoom/Focus | Manual | |
| Throw Ratio(16:10) | 1.46-2.95 | |
| F#(Wide-Tele) | 1.7~2.37 | |
| f(mm) | 24.4-48.6 | |
| Zoom Ratio | 2 | |
| Screen size | 40-500 inch | |
| Weight | Approx 0.8kg | |
| Lens Shift V | +50%,-10% | |
| Lens Shift H | ±20% | |
| CR | Contrast Ratio(Min) | 100000:1 |
| Noise | Noise(dB) | Normal(90%): 35dB ECO1(75% ): 32dB ECO2(45% ): 32dB |
| Uniformity | Uniformity(Actual Min) -JISX6911 |
80% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4(IN) | *2 | |
| USB-A | *1(5V/1.5A) | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| HD-SDI(3G-SDI) | Optional | |
| Audio in (mini jack,3.5mm) |
*1 (VGA/DVI-D share) | |
| Output | VGA | *1 |
| HDMI 1.4(OUT) | *1 | |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±30° H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Others | 360° projection | 360° omnibearing installation |
| Edge Blending | Yes | |
