4800 Lumen Laser Short-Throw Projector Immersive Home Theater Experience
4800 Lumen Laser Short-Throw Laser Projector With 50-300 Inch Screen Size for Immersive Viewing
SMX Short Throw Laser Projectors set the benchmark for visual quality, offering exceptional image clarity, flexible installation options, long-lasting reliability, and Ricoh’s industry-leading projection lens technology.
The MX-ST4800U features a native WUXGA resolution and delivers an impressive brightness of 4,800 lumens, capable of projecting large displays from distances as short as 20 inches. It is ideal for various settings, including offices, classrooms, and digital signage. Furthermore, the projector ensures virtually maintenance-free operation for up to 20,000 hours of dependable use.
Product Highlights
- Bright, high-quality laser projection
- MX-ST4800U delivers a bright 4,800 lumens for crisp, clear images, even in well-lit spaces.
- Ricoh short-throw lens technology
- Perfect for confined spaces and discreet placement, the MX-ST4800U features a 0.44 throw ratio and can project a 100" screen from a distance of just 3.2'.
- Compact, versatile design
With a compact design, 360° mounting capabilities, and dynamic image adjustments, the MX-ST4800U is ideal for both fixed installations and temporary setups. - Start up and power off within seconds
Laser technology enables immediate start-up and shut-down, with no warm-up or cooldown period required.
Details
- 4,800 lumens and up to 20,000 hours of virtually maintenance-free operation
- Native WUXGA resolution (1920x1200) with 4K signal compatibility
- Supports screen sizes from 55” to 150”
- Short throw lens with 0.44 throw ratio with a 1.7-4.8' throw distance
- Supports 16:10, 16:9, and 4:3 aspect ratios
- Integrated 16-watt speaker
- 360-degree installation capable for ceiling, floor, or wall mounting flexibility, and seamless compatibility with both Ricoh and third-party AV control systems
Specification of the Short-Throw Laser Projector
| Model | ||
| Model No. | MX-ST4800U | |
| Brightness (Ansi Lumen) | 4800 | |
| Resolution | WUXGA | |
| Overall Spec | ||
| Light source Life time | Light source | NICHIA LASER |
| FullNirmal/Normal mode | 20000hrs | |
| ECO1 mode | 30000hrs(TBD) | |
| ECO2 mode | TBD | |
| Projection Lens | Lens Vendor | RICOH |
| F | 1.6 | |
| f | 6.39mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 0.44:1 | |
| Screen size | 55-130 inch | |
| CR | Dynamic Contrast Ratio (FOFO) |
5000,000:1 |
| Native Contrast Ratio (FOFO) |
350:1(Min) | |
| Noise | Noise(dB) | TGT: 37dB(Normal) 27dB(ECO1) |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI | *2 | |
| Video | *1 | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Audio in (RCA×2) <Audio L/R> | *1 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 | |
| LAN | *1 | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Keystone | Keystone Correction (Lens@center) |
V: ±15° H: ±15° Pincushion/Barrel Correction 4 corners 6 Corner Geometry correction Grid image tune |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-- AMX Discovery |
Yes | |
| LAN Control-- PJ Link |
Yes | |
| Others | 360° projection | Yes |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 390*319*143; With lens protrusion | |
| Net. Weight (KG) | 5.5Kg | |
| Packaging (WxDxH mm) | 492*443*239 | |
| Gross. Weight (KG) | ~7Kg | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessaries | Power cord, Remote control, HDMI | |

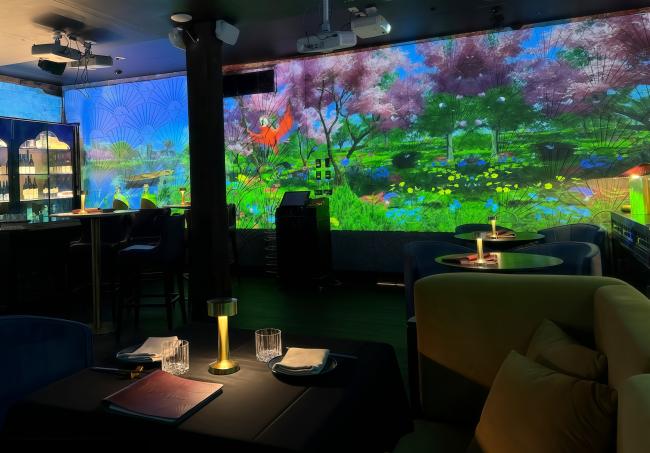

Ideal Applications, welcome to contact us to customize your immersive projection Room!
