Ultra Short Throw Laser Projector 5000 ANSI Lumens WUXGA for Home Theater
Price:
Negotiable
MOQ:
1
Delivery Time:
10-20 days
Brand:
SMX
Product Description
Ultra Short Throw Laser Projector 5000 ANSI Lumens WUXGA for Home Theater
SMX MX-WPL UST Laser Projector combines a brilliant 5000-lumen laser engine with spectacular WUXGA resolution to deliver a breathtakingly bright and incredibly detailed picture. Place it inches from your wall and transform any room into a stunning, large-scale cinema. It is engineered for the discerning viewer who refuses to settle for anything less.
Specifications Summary:
- Display Technology: 3LCD
- Brightness: 5,000 ANSI Lumens
- Native Resolution: WUXGA (1920 x 1200)
- Light Source: Laser (20,000 hours to half brightness)

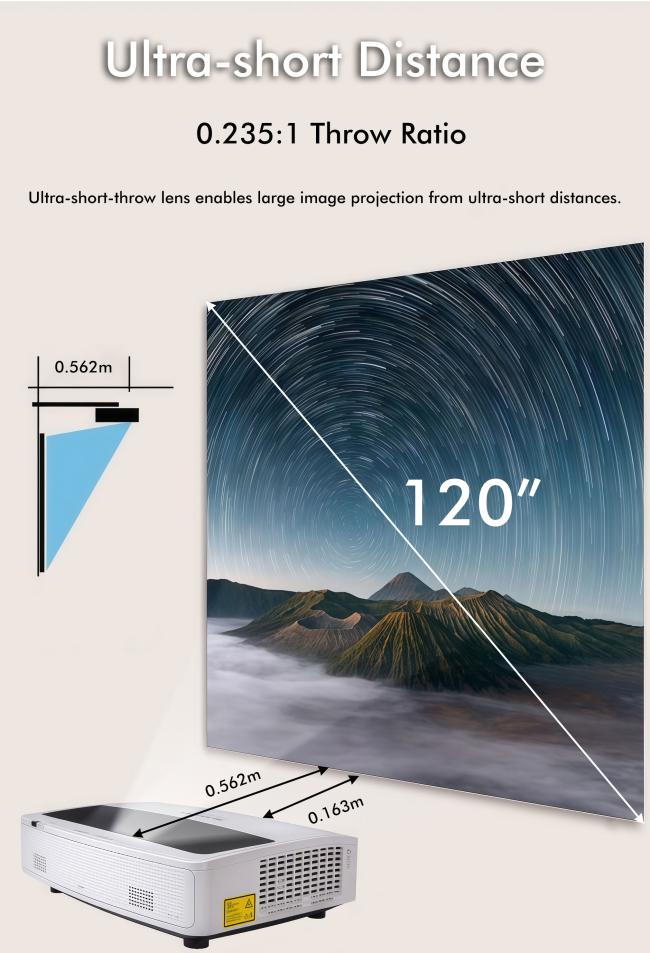

- Throw Ratio: 0.235:1 (Ultra Short Throw)
- Contrast Ratio: Dynamic Contrast: 5,000,000:1
- Key Connectivity: HDMI 2.1 (x2 with eARC), USB, Audio Out, VGA, RS232
Application
- Home Cinema
- Immersive Projection
- Museum
- Education
- Business and Professional Environment
Specification of the Laser Projector
| Model No. | MX-WPL500U | |
| Brightness(Lumen) | 5000 | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.6" with MLA |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Light Source Lifetime | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| Projection Lens | F | F1.7 |
| f | 2.94mm | |
| Lens Vendor | RICOH | |
| Zoom/Focus | Manual | |
| Throw Ratio | 0.235:1 | |
| Screen size | 80-150" | |
| CR | Contrast Ratio | 5,000,000:1 |
| Noise | Noise(dB) | 37dB(Normal)/30dB(ECO1 |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | Native:16:10 /Compatible: 4:3/16:9 |

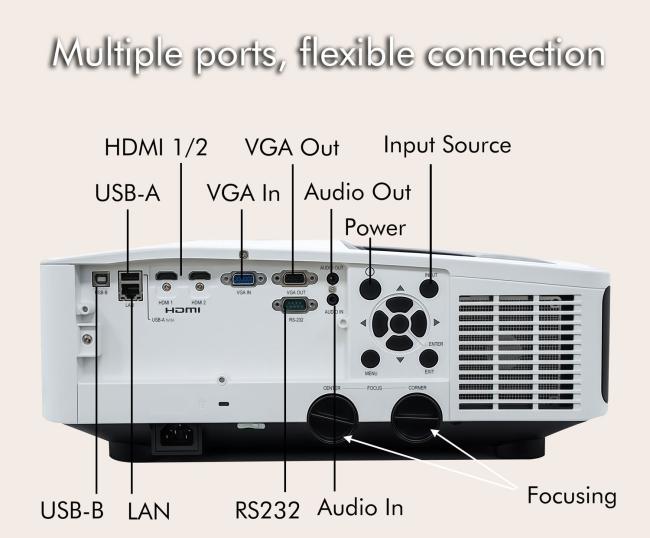

| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4B(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| General Spec | ||
| Audio | Speaker | 16W*1 |

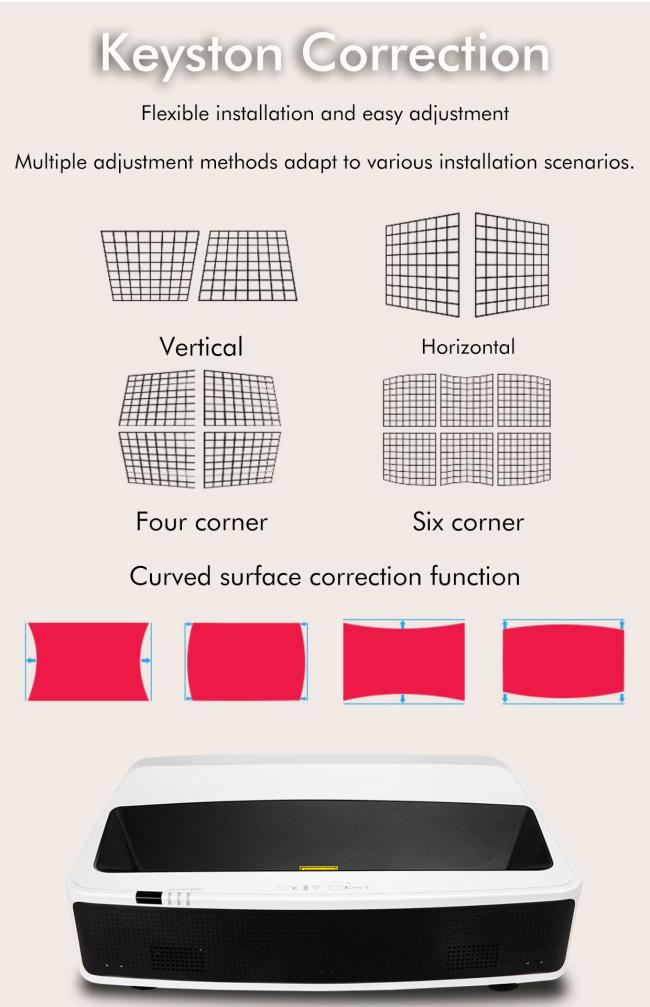

| Keystone | Keystone Correction (Lens@center) |
V: ±5° H:±5° Pincushion/Barrel Correction 6 Corner Geometry correction Grid image tune |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control--AMX Discovery | Yes | |
| LAN Control--PJ Link | Yes | |
| Others | 360° projection | Yes |
| Dimension&Weight | ||
| Product Size (WxHxD mm) |
520x435x168 | |
| Net. Weight (KG) | 11 | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessaries | Power cord, Remote, HDMI Cable | |
