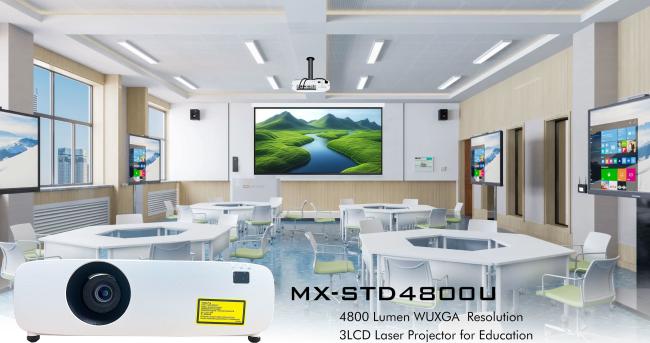

4800 Lumen 3LCD Laser Projector for Education Business and Home Entertainment
4800 Lumen 3LCD Laser Projector for Education Business and Home Entertainment
Laser Perfection and Installation Flexibility for Corporate Settings
SMX MX-STD4800U with 4800 lumen brightness and laser light source for 20,000 hours of maintenance-free operation, it harnesses enduring 3LCD picture quality and razor-sharp WUXGA resolution to deliver impactful visual communications.
WUXGA Resolution for Enhanced Detail and Expanded Content
With impressive WUXGA (1920 x 1200) native resolution that far exceeds Full HD 1080p, it offers greater details and stunning image clarity when projecting high-resolution images.
With HDMI out for multiple screen applications and versatile installation flexibility of keystone correction, big zoom, and 360˚ projection.
3LCD Display Technology

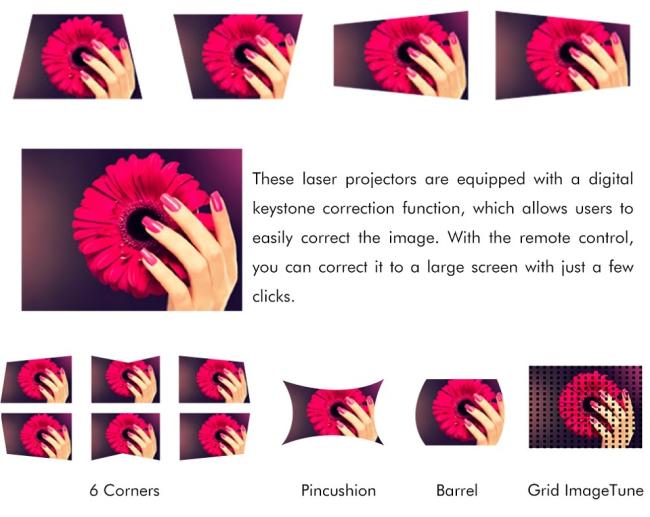

Keystone Correction

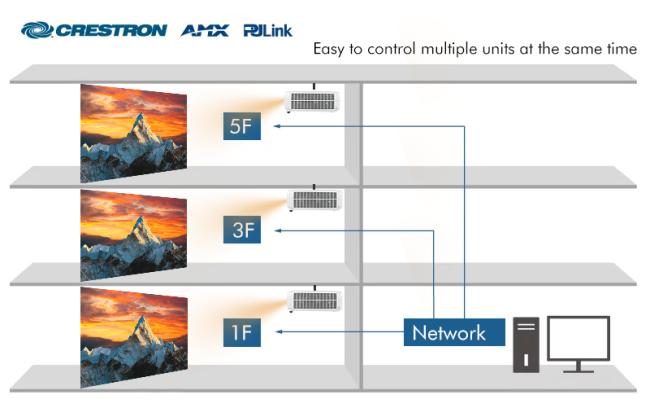

LAN Control

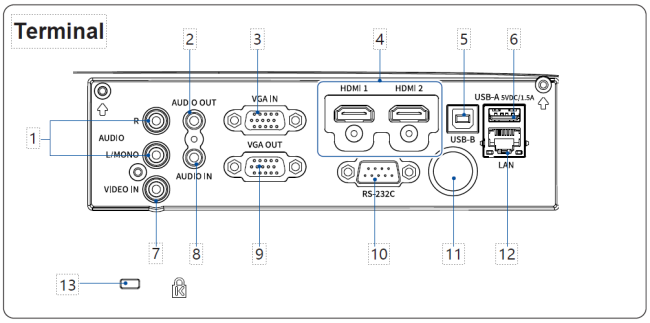

Ports

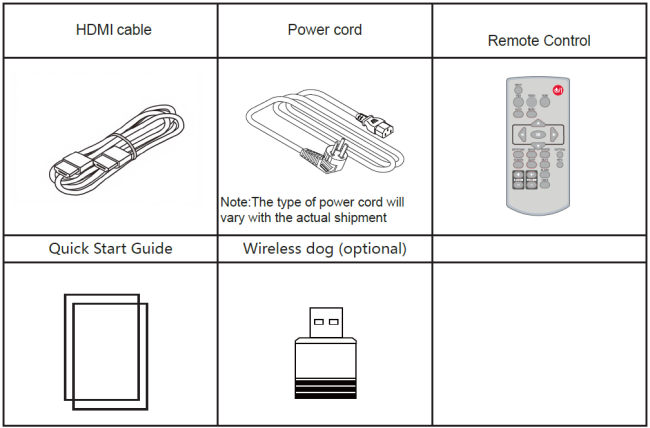

Accessory
Projection Distance
Specification:
| Model No. | MX-STD4800U | |
| Brightness | ||
| Brightness (ANSI Lumen) | 4800 | |
| Resolution | WUXGA | |
| Overall Spec | ||
| Light source Life time | Light Source | Laser |
| FullNirmal/Normal mode | 20000hrs | |
| ECO1 mode | 30000hrs(TBD) | |
| Projection Lens | Lens Vendor | RICOH |
| F | 1.6~1.76 | |
| f | 19.158~23.018mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.37~1.65:1 | |
| Zoom Ratio | 1.2x optics | |
| Screen size | 30-300 inch | |
| CR | Dynamic Contrast Ratio | 5000,000:1 |
| Noise | Noise(dB) | 37dB(Normal) 27dB(ECO1) |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | 16:10 (Standard)/4:3(Compatible) |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI | *2 | |
| Video | *1 | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Audio in (RCA×2) <Audio L/R> | *1 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 | |
| LAN | *1 | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Keystone | Keystone Correction (Lens@center) |
V: ±30° H:±30° Pincushion/Barrel Correction 4 corners 6 Corner Geometry correction Grid image tune |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-- AMX Discovery |
Yes | |
| LAN Control--PJ Link | Yes | |
| Others | 360° projection | Yes |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) |
390*294*127 | |
| Net. Weight (KG) | 5Kg | |
| Packaging Box Dimensions (WxDxH mm) | 492*443*239 | |
| Gross. Weight (KG) | ~6.5Kg | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessaries | Power cord, Remote control, HDMI Cable | |
