8500 Lumen High Brightness Short Throw LP Laser Projectors WUXGA
8500 Lumen High Brightness Short Throw LP Laser Projectors WUXGA

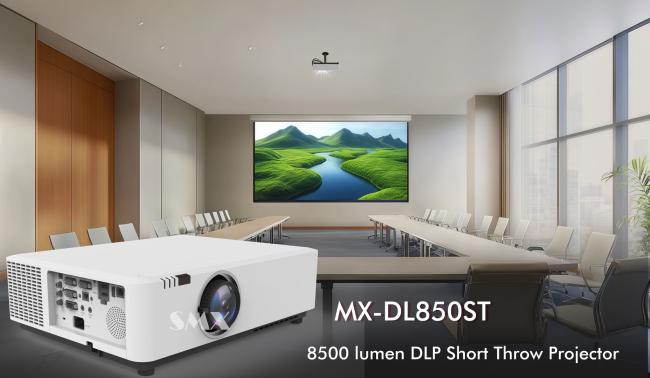

The MX-DL850ST is a projector that boasts 8,500 lumens of high brightness and a Full HD resolution. Designed for those who demand excellence in meeting rooms, it combines advanced laser technology with precise optical engineering to provide an exceptional viewing experience, even from a short distance.
Key Features at a Glance:
-
8,500 Lumens Laser Brilliance: Experience vibrant, true-to-life colours and crystal clarity, even in brightly lit environments. Our advanced laser phosphor light source ensures consistent brightness and colour for over 20,000 hours.
-
Short Throw Magic: Eliminate shadows, reduce distracting fan noise, and maximize your space.
-
Native Full HD Resolution (1920 x 1080) with Pixel-Perfect DLP: Enjoy every detail with stunning clarity. The advanced DLP chip and Full HD resolution allow you to see exactly what the creator intended, without any pixelation, even from close range.
-
Lens Shift & Zoom: Installation is a breeze. Adjust the image position both vertically and horizontally with precision using the lens shift, all while maintaining image quality and avoiding digital keystone correction.
-
Cinematic 5,000,000:1 Dynamic Contrast Ratio: Experience the deepest blacks and the brightest whites simultaneously. Our dynamic laser iris and advanced processing create breathtaking depth and dimension, revealing shadow details you've never seen before.
-
Integrated 10W High-Fidelity Speaker: Enjoy rich, room-filling audio for everyday viewing. The downward-firing 10W full-range speaker delivers clear dialogue and impactful sound, making it perfect for sports, TV, and casual viewing without the need for an external sound system.
Ideal For:
- The ultimate dedicated home theatre room
- Luxury living rooms with ambient light
- High-end boardrooms and executive presentation suites
- Anyone who refuses to compromise on quality
Specification
| Key Parts | ||
| Model No. | MX-DL850ST | |
| Resolution | 1080P | |
| Brightness(Ansi Lumen) | 8500 | |
| Overall Spec | ||
| Panel | Display Panel | 0.65" DMD |
| Display Technology | DLP | |
| Native Resolution | 1080P (1920 x 1080) | |
| Light source Life time | Normal mode | 20,000hrs |
| ECO1 mode | 30,000hrs | |
| Projection Lens | F | 2.4 |
| f | 9.66mm-11.65mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 0.647(wide)~0.782(tele) | |
| Zoom Ratio | 1.2 | |
| Screen size | 80-300inch | |
| Lens Shift | V:＋42%～-10%, H:±8% | |
| CR | Contrast Ratio | 5,000,000:1 |
| Noise | Noise(dB) | 39dB(Normal) 36dB(ECO) |
| Uniformity | Uniformity | 95% |
| AR | Aspect Ratio | Native:16:9 Compatible: 4:3/16:10 |

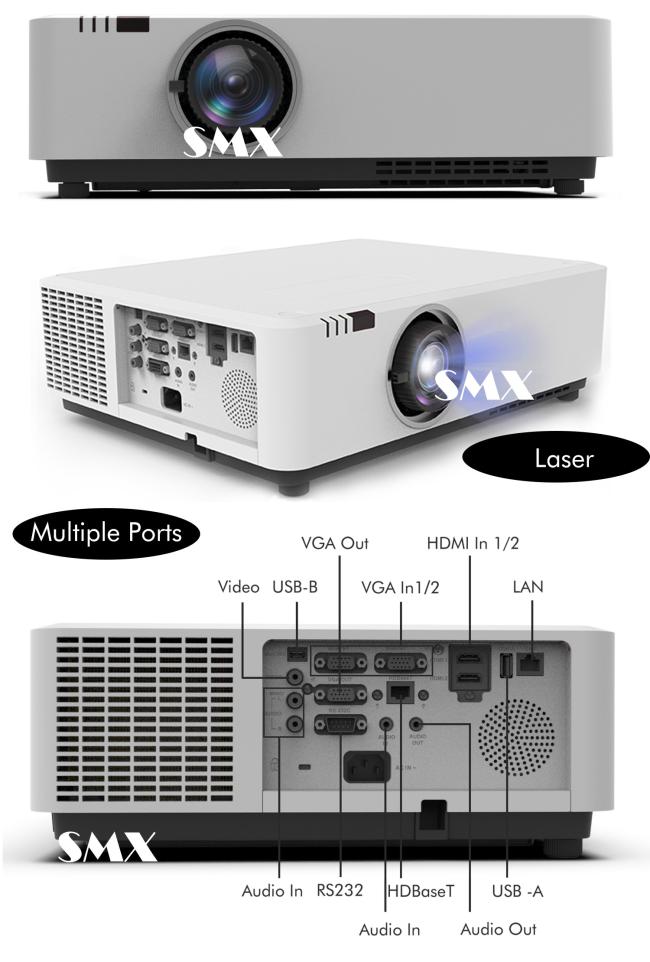

| Terminal(I/O port) | ||
| Input | VGA | *2 |
| HDMI 1.4B(IN) | *2 | |
| HD BaseT | *1(Optional) | |
| Video | *1 | |
| Audio L (RCA) | *1 | |
| Audio R (RCA) | *1 | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| USB (Type A) only supports 5V | *1 | |
| General Spec | ||
| Audio | Speaker | 10W*1 |
| Power Consumption | Power Requirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) |
670 | |
| Power Consumption (ECO1) (Max) |
520 | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 0m≤Altitude≤1700m, Ambient0℃~50℃ |
| 1700m＜Altitude＜3000m, Ambient 0℃~40℃ | ||
| Operating Thumidity. | 20-85% | |
| Store Temp. | -10 to 50°C | |
| High altitude | 0~3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V:±30° 4 Corner Correction |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-- AMX Discovery | Yes | |
| LAN Control-- PJ Link | Yes | |
| Others | 360° projection | Yes |
| 3D | Yes | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 460(W)*355(D)*142.6(H) | |
| Net. Weight (KG) | ~10KG | |
| Packaging Size (WxDxH mm) |
574(W)*554(D)*268(H) | |
| Gross. Weight (KG) | 12.5kg | |
| Accessory | ||
| Standard Accessories | Power cord, HDMI cable Remote control | |
