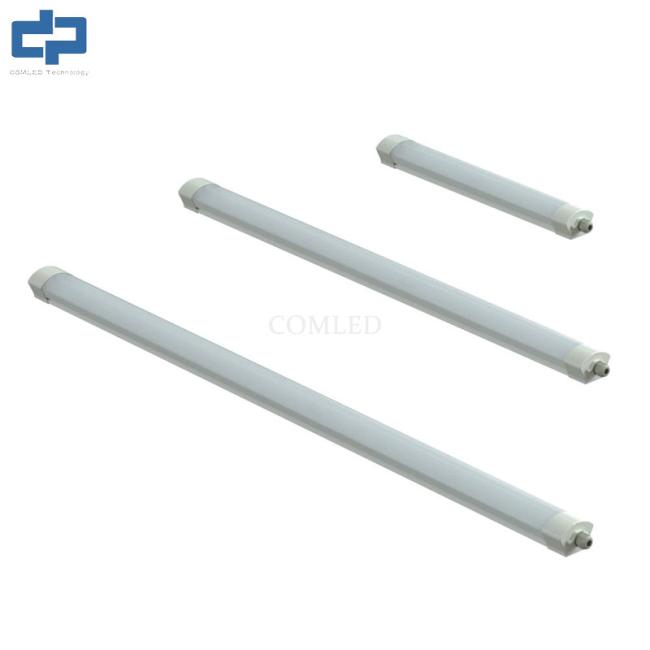

CE SAA approved 44W IP66 LED lighting fixture 1500mm PC LED batten light tunnel lighting linear LED batten Fixture Vapor Tight parking lot LED Lights
CE SAA Approved 44W IP66 LED Lighting Fixture 1500mm PC LED Batten Light Tunnel Lighting Linear LED Batten Fixture Vapor Tight Parking Lot LED Lights
Easy Wiring Designed 1500mm IP66 LED Lighting Fixture 3 - Year Warranty IP66 Linear LED Fixture
1500mm IP66 LED Lighting Fixture is designed for easy wiring and hassle-free installation, making it an ideal lighting solution for a variety of commercial and industrial applications. With its IP66 waterproof rating and high-quality construction, this PC LED Batten Light provides durable, reliable, and energy-efficient lighting, perfect for spaces like underground parking lots, tunnels, warehouses, and more. Offering a 3-year warranty, this Vapor Tight Parking Lot LED Light guarantees long-lasting performance, minimal maintenance, and maximum light output for every project.
Product Features:
Tool-Free Installation: The quick terminal block and knob-type end cap design make installation effortless without the need for additional tools or screws.
High Efficiency: Equipped with 220lm/W SMD2835 LED chips and a flicker-free driver, this luminaire delivers optimal light output while minimizing energy consumption.
IP66 Waterproof & IK10 Impact Resistance: Designed to withstand harsh environments, it ensures reliable performance in outdoor and high-impact locations.
Flexible Dimming Options: An optional microwave sensor with 3-step dimming (100%-20%-OFF) offers customized light control for different environments.
Extended Lifespan: Built to last with a lifespan of 54,000 hours at 25°C, backed by a 3-year warranty for peace of mind.
LED Linear Lighting Fixture(K-Series)Specification Parameter Data:
| Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
| ZL-KSBLP20-2FT-CN | AC100V-240V | 20w | x | x |
| ZL-KSBLP36-4FT-CN | AC100V-240V | 36w | x | x |
| ZL-KSBLP44-5FT-CN | AC100V-240V | 44w | x | x |
| ZL-KSBLP20-2FT-DS | AC100V-240V | 20w | 100% / 20% /OFF | x |
| ZL-KSBLP36-4FT-DS | AC100V-240V | 36w | 100% / 20% /OFF | x |
| ZL-KSBLP44-5FT-DS | AC100V-240V | 44w | 100% / 20% /OFF | x |
| Note: x -No this function | ||||
LED Linear Lighting Fixture(K-Series) Specification Details:
| LUMINAIRE INFORMATION | |||
| Model | ZL-KSBLP20-2FT | ZL-KSBLP36-4FT | ZL-KSBLP44-5FT |
| Rated Power | 20W | 36W | 44W |
| Install | Surface Mount/Suspended/Linkable | ||
| Protection Rating | IP66 IK10 | ||
| Housing | PC+AL | ||
| Optics | PC Milky Diffuser | ||
| Connection Type | Quick Terminal Block(Push) or Linkable | ||
| Operating Temperature | -20℃ to 40℃ | ||
| Warranty | 3 Years | ||
| Dimming (Option) | Microwave Sensor - 3 Stepped Version(100%-20%-OFF) | ||
| PHOTOMETRIC | |||
| Luminous Efficacy | 120-140lm/W | ||
| LED | SMD2835 | ||
| CCT | 3000K/4000K/5000K/6000K | ||
| CRI | >80 | ||
| Beam Angle | 120 degree | ||
| ELECTRICAL | |||
| Input power Supply | AC220-240V/50-60HZ | ||
| Power Factor | 0.9 | ||
| Lifespan@Ta25°(L70) | 54,000 hours | ||
| Electrical Classification | Class II | ||
| Package Dimensions | 655*89*65mm | 1255*89*65mm | 1555*89*65mm |
Linear LED Vapor Tight Light Fixture Size:
Main serve customers
Engineering Contractors, Electrical Service Providers, Wholesalers, Distributors, Supermarkets and other sellers of LED Linear Luminaire.
