8pin Magnetic Connector Male Female Pogo Pin Connector For Pcb Board
8pin Magnetic Connector Male Female Pogo Pin Connector For Pcb Board
Product Description
| Part number | A22508NG0DVXXXT01 |
| Description | Customized 8Pin MagneticMagnetic pogo pin Dip type 3u" gold plated |
| Material | |
| Plunger | Brass 3604 |
| Barrel | Brass 3604 |
| Spring | SUS304 |
| Electrical | |
| Rated current | 1.0A / Customized |
| voltage | DC 12V |
| Contact resistance | 50 mohm maximum at normal working height(quiescence) |
| Mechanical | |
| Spring force | 60g±20% at normal working height |
| Durability | 20,000 cycles(minimum) |
| Operating Temp | -40°C~+105°C |
| Salt Spray | 48H |
| Application | PCB,AV equipment,medical equipment,military communication,aerospace,Phone watch, electronic |
| Samples | Inventory simple 2-3day /customizd simple 5day |
| Delivery Date | 10~15days after confirm your orders |
| Customized pogo pin warmly welcome W/LOW MOQ | |

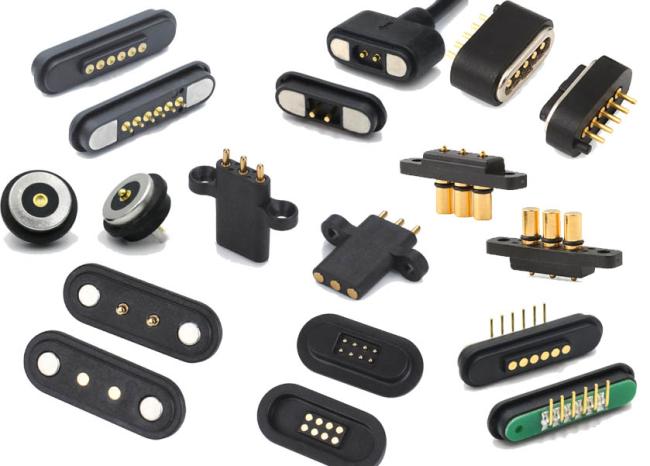

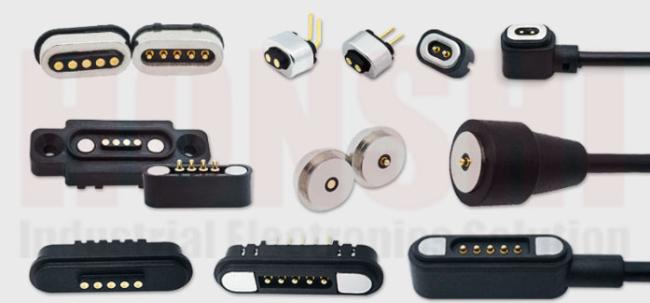

Product name: magnetic connector
The categories of molding Magnetic pogo pin connector& Pogo Pin magnetic wire harnesseveloped and produced by Dongguan HONSHI Electronics Co., ltd .
The Magnetic Connector It can not only achieve good high-frequency signal transmission and provide current charging of over 10A, but also provide high-speed data transmission and fast charging functions.
Advantages of magnetic connectors
1. Magnetic positioning: Using magnetic attraction to generate automatic alignment and adsorption, it is more convenient, fast, and effective than manual insertion and removal.
2. Long lifespan: Over 10000 insertions and removals.
3. Fast charging: High current transmission with standard production of 1A to 10A.
4. Anti fall: The adsorption interface is easy to remove and does not easily drive the adsorbed electronic products.
5. Non standard customization: The product specifications are diverse and can be customized according to needs based on drawings and samples.
Service idea:
1. Committed to providing customers with customized, small batch, multi variety, one-stop services.
2. Quick response and effective communication, refined service timely delivery.
3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.
4. Free sample, the quality is safe and reliable, the price is competitive.
