10 - 100 Pin High Speed Board To Board Connector 0.8mm Pitch Female Header Connector
Price:
0.01-0.2 usd
MOQ:
500 pieces
Delivery Time:
Negotiable
Brand:
HONSHI

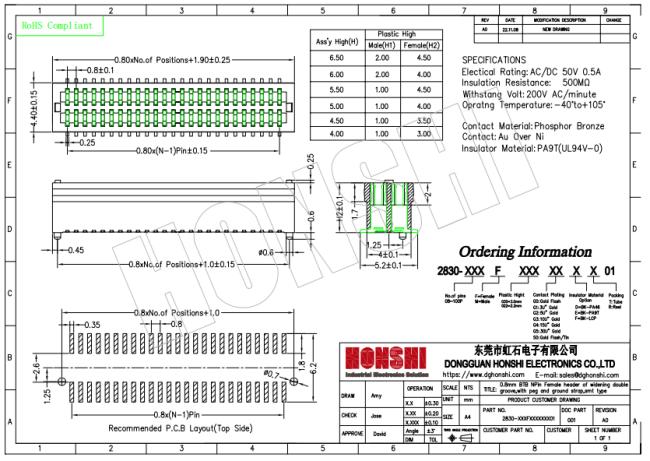

Product Description
0.8mm Pitch BTB Connector 10 -100 Pin High Speed Male and Female Connector Phosphor Bronze
| Product Name | Board to Board Connector |
| Pitch | 0.5/0.635/0.8/1.0mm |
| Positions | 10P-100P |
| Current Rating | 0.5/1.0A |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V /1000V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | Phosphor bronze |
| Contact Plating | Au Or Sn over Ni |
| Insulator Material | PA9T/LCP ( UL94V-0 ) |
Item name: Board to Board Connector
1 The first feature is that BTB has a flexible connection and it's easy to install and remove.
2 The board-to-board connector ultra-low height to achieve the purpose of thinning the body thickness.
3 In order to meet the requirements of the SMT process, the entire product terminal welding area are strictly required to have good coplanarity.
4 Board-to-board connectors can be simple construction of machine circuit design. By setting up an insulating wall on the bottom of the connector so that the PCB board alignment and metal terminals can be wired on the bottom of the connector without contact.
Service idea:
1. Committed to providing customers with customized, small batch, multi variety, one-stop services.
2. Quick response and effective communication, refined service timely delivery.
3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.
4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.
Management Concept
Responsibility Innovation Integrity Win-Win;
Team Culture
Thanksgiving Valute Respects Team efforts;
Service Purpose
Quality fisrt Customer Satisfaction Professinal Improving;
Sustainable Manner
HONSHI grow in a sustainable manner,to support our valued customers with flexibly customized interconnect solutions.
