Used Cat Excavator Powerful Reliable & Feature Rich Your Ultimate Earthmoving Solution
Price:
negotiable
MOQ:
1
Delivery Time:
7 Days
Brand:
Caterpillar
Product Description

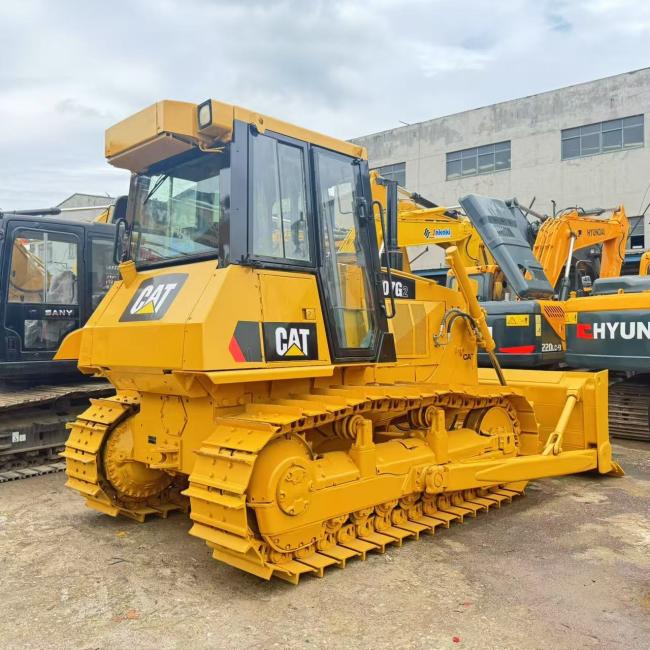

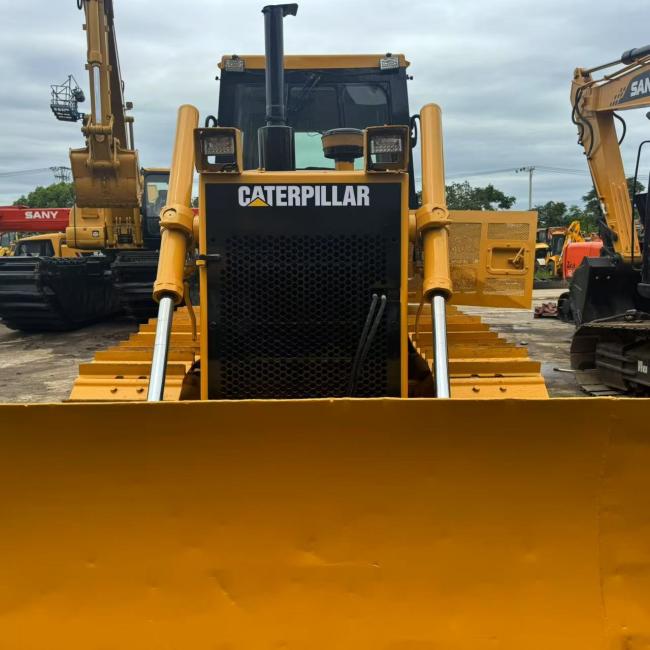

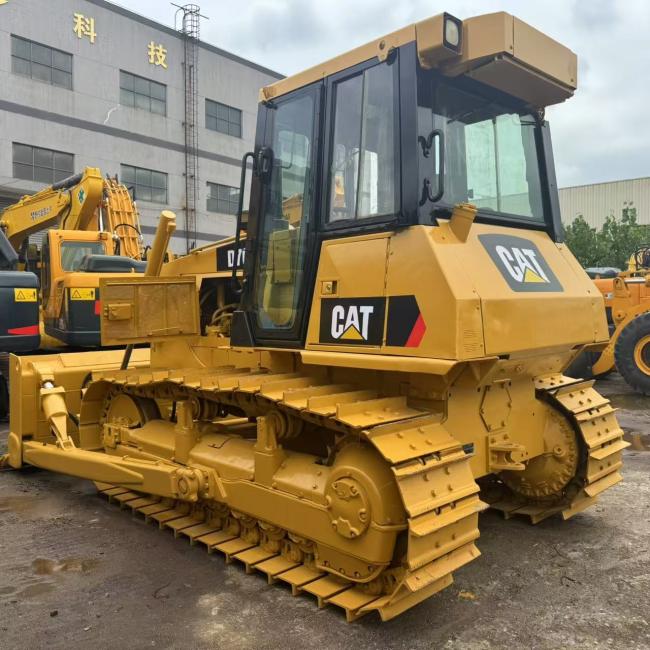

Product Description: The Used Cat D7G2 is a robust earthmoving machine that has been a staple in construction, mining, and various other heavy - duty industries. It is designed to handle the most challenging terrains and tasks with ease.
Features and Characteristics:
- Powerful Engine: Equipped with the Cat 3306 DITA engine, it delivers 202 hp (150 kW) of flywheel power and a maximum of 220 hp (164 kW), ensuring high - performance operation even in tough conditions.
- Efficient Transmission: Has 3 - speed forward and reverse gears, allowing for precise control in different work scenarios, with speeds ranging from 2.3 mph (3.9 km/h) to 7.9 mph (12.7 km/h).
- Durable Undercarriage: Features a moderate - service single - grouser shoe type with options for different widths, providing stability and long - lasting performance on various surfaces.
Advantages:
- Proven Reliability: Built with Caterpillar's renowned quality components, the D7G2 is known for its durability and ability to withstand continuous use.
- Versatile Applications: Suitable for a wide range of tasks, from large - scale earthmoving in construction projects to material handling in mining operations.
- Good Fuel Efficiency: Despite its power, it offers decent fuel economy, helping to keep operational costs down.
Parameter Table:
| Category | Parameter | Value |
|---|---|---|
| Engine | Model | Cat® 3306 DITA |
| Flywheel Power | 202 hp (150 kW) | |
| Maximum Flywheel Power | 220 hp (164 kW) | |
| Net Power (ISO 9249/SAE J1349/EU 80/1269) | 202 hp (150 kW) | |
| Bore | 4.75 in (121 mm) | |
| Stroke | 6 in (152 mm) | |
| Displacement | 638 in³ (10.5 L) | |
| Transmission | Forward Gears | 3 (Speeds: 2.3 mph / 3.9 km/h, 4 mph / 6.4 km/h, 6.2 mph / 9.9 km/h) |
| Reverse Gears | 3 (Speeds: 2.8 mph / 4.5 km/h, 4.9 mph / 7.8 km/h, 7.9 mph / 12.7 km/h) | |
| Weights | Operating Weight | 45381 lb (20580 kg) |
| Shipping Weight | 34510 lb (15650 kg) | |
| Dimensions | Length - Track on Ground | 107.09 in (2720 mm) |
| Ground Clearance | 13.74 in (349 mm) | |
| Track Gauge | 77.99 in (1981 mm) | |
| Width - Without Blade | 100.79 in (2560 mm) | |
| Height | 10.81 ft (3294 mm) | |
| Overall Length - Basic Tractor - with Drawbar | 13.78 ft (4.2 m) | |
| Undercarriage | Shoe Type | Moderate Service (Single Grouser) |
| Shoe Width | 22 in (560 mm) (Optional: 20 in / 510 mm) | |
| Shoes / Side | 38 | |
| Grouser Height | 2.7 in (70 mm) | |
| Ground Contact Area | 4708 in² (3.05 m²) | |
| Ground Pressure | 10.59 psi (73 kPa) | |
| Blades | SU - Blade Capacity | 7.53 yd³ (5.75 m³) |
| S - Blade Capacity | 5.5 yd³ (4.2 m³) | |
| A - Blade Capacity | 3.8 yd³ (2.9 m³) | |
| Ripper | Type | Fixed Parallelogram |
| Number of Pockets | 3 | |
| Overall Beam Width | 87 in (2210 mm) | |
| Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole | 19 in (490 mm) | |
| Maximum Penetration | 20 in (510 mm) | |
| Service Refill Capacities | Fuel Tank | 110 gal (US) (415 L) |
| Cooling System | 11.2 gal (US) (45.4 L) | |
| Engine Crankcase | 7.3 gal (US) (27 L) | |
| Final Drive - Each | 9 gal (US) (34 L) | |
| Hydraulic Tank | 27 gal (US) (102 L) | |
| Transmission - Bevel Gear and Steering Clutch Compartments - Torque Converter | 18.5 gal (US) (70 L) |
