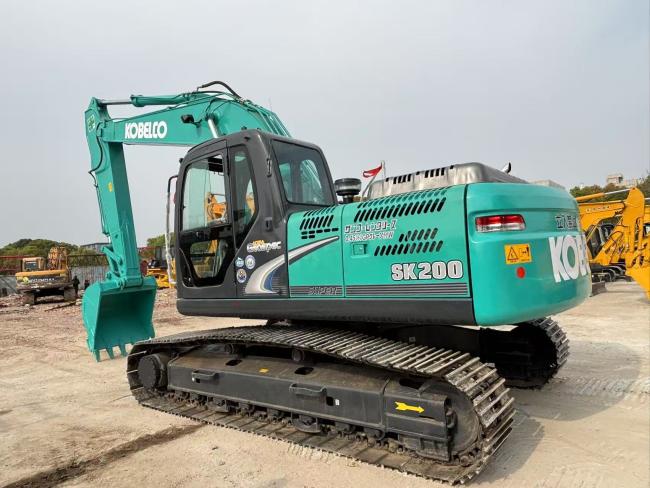

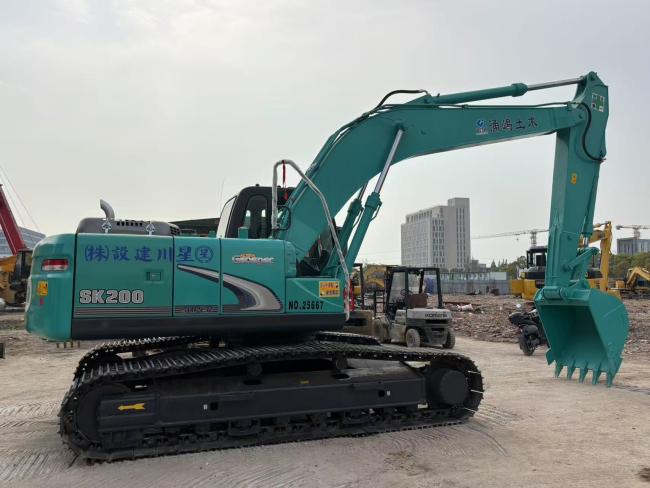

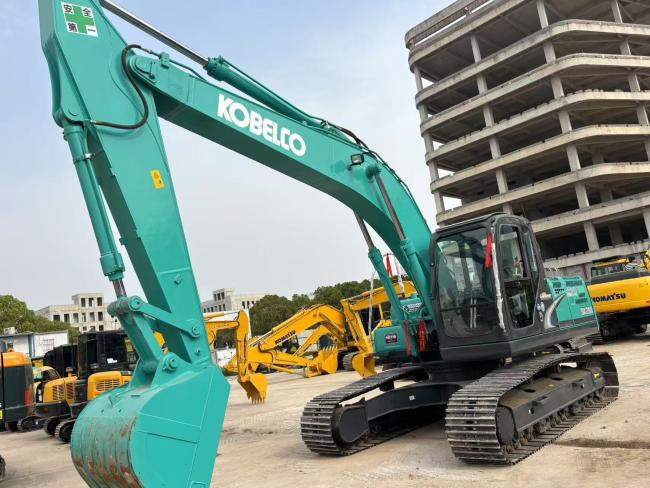

Used Kobelco SK200 Excavator 20.7T with 118kW Engine
Price:
negotiable
MOQ:
1
Delivery Time:
7 Days
Brand:
Kobelco
Product Description
Product Description
The used Kobelco SK200 is a robust and reliable excavator designed for various construction and earthmoving tasks. With a solid operating weight of 20,700 kg, it offers stability and power to handle demanding jobs. Its transport dimensions (9.60×2.8×3.06 m) make it suitable for transportation between job sites.
Features & Characteristics
- Powerful Engine: Equipped with an engine delivering 118 kW rated power output and 592 Nm rated torque, ensuring efficient performance.
- Impressive Digging Capabilities: Boasts a max digging depth of 6.7 m, max digging reach of 9.9 m, and max vertical digging depth of 6.16 m, making it versatile for different excavation needs.
- Strong Digging Forces: Bucket digging force of 157 kN and arm crowding force of 112 kN enable it to handle tough materials.
- Comfortable Cab: Features a suspension - type seat with various adjustments, automatic air conditioning, and meets ISO 10262 - 1998 Class 1 for cab strength.
- Flexible Controls: Offers H/S/Eco modes, power boost function, and easy switching between travel speeds.
Advantages
- Reliability: Kobelco is a trusted brand, and the SK200 model is known for its durability.
- Performance: Balances power and efficiency to get the job done effectively.
- Versatility: Optional bucket capacities (0.8 m³, 0.93 m³, 1.0 m³), arm lengths (2.4 m, 2.94 m), and track widths (600 mm, 800 mm) allow customization for different tasks.
- Comfort: The well - designed cab ensures operator comfort during long working hours.
- Safety: Equipped with safety features like a safety belt and a strong cab structure.
Parameter Table
| Parameter | Value |
|---|---|
| Operating Weight | 20,700 kg |
| Transport Dimensions (Length×Width×Height) | 9.60×2.8×3.06 m |
| Refilling Capacities - Fuel Tank | 320 L |
| Refilling Capacities - Hydraulic Oil Tank | 140 (244) L |
| Engine Rated Power Output | 118 kW |
| Engine Rated Torque | 592 Nm |
| Bucket Digging Force | 157 kN |
| Arm Crowding Force | 112 kN |
| Max. Pump Flow | 2×220 + 20 L/min |
| Standard Auxiliary | N & B + tilt piping |
| Max. Digging Depth | 6.7 m |
| Max. Digging Reach | 9.9 m |
| Max. Vertical Digging Depth | 6.16 m |
| Cab Strength | Equivalent to ISO 10262 - 1998 Class 1 |
| Air - conditioning | Automatic air - conditioning (with internal air circulation, external air intake mechanical type, and air outlets set at the rear and upward) |
| Seat | Suspension - type seat with fully reclining movable structure, two - way sliding function, adjustable - angle armrests, headrest, and safety belt |
| Control Mode | H/S/Eco mode, power boost function, free switching between 1st/2nd speed travel (equipped with automatic deceleration device), and automatic standby stop |
| Bucket Capacity | 0.8 m³, 0.93 m³, 1.0 m³ (optional) |
| Arm Length | 2.4 m, 2.94 m (optional) |
| Boom Length | 5.65 m (optional) |
| Track Width | 600 mm, 800 mm (optional) |
| Ground Contact Pressure (600 mm Track) | 46 kPa (0.47 kgf/cm²) |
| Ground Contact Pressure (800 mm Track) | 36 kPa (0.37 kgf/cm²) |
| Hydraulic Oil Filter Element Clogging Detection Device | Yes |
| Air Filter | Dual - filter - type air filter |
| Work Machine Management System | Yes (monitoring system) |
