PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
Negotiable
Brand:
Aoxing
Product Description
Details of Drag Bit
| Size |
55mm,65mm,75mm,94mm,108mm,113mm,133mm, 145mm,153mm,175mm,185mm,193mm |
| Bit Type | pillar type,concave,three wings,four wings,five wings,six wings |
| PDC Cutter Size | 1303,1308,1304,1603 |
| Body Materials | steel,tungsten carbide matrix |
| Suitable Rock | mud stone,limestone,shale,sandstone,granite |
Parameter
| Drilling Diameter | Blade Count | Cutter Size | Nozzle Number | Bit Slot | Pin Size |
| 5 5/8'' | 3 | 1308 | 3 | 2.7''*1.5'' | 2 7/8'' |
| 5 5/8'' | 5 | 1308 | 5 | 2.7''*1.5'' | 2 7/8'' |
| 6'' | 4 | 1308 | 4 | 4''*1.5'' | 3 1/2'' |
| 6'' | 5 | 1308 | 5 | 4''*1.5'' | 3 1/2'' |
| 8 1/2'' | 4 | 1308 | 4 | 5''*2'' | 4 1/ 2'' |
| 8 1/2'' | 5 | 1308 | 5 | 5''*2'' | 4 1/2'' |
| 8 1/2'' | 6 | 1308 | 6 | 5''*2'' | 4 1/2'' |
| 9 1/2'' | 5 | 1308 | 5 | 5''*2'' | 4 1/2'' |
| 9 1/2'' | 6 | 1308 | 6 | 5''*2'' | 4 1/2'' |
| 12 1/4'' | 5 | 1308 | 5 | 6''*2'' | 6 5/8'' |

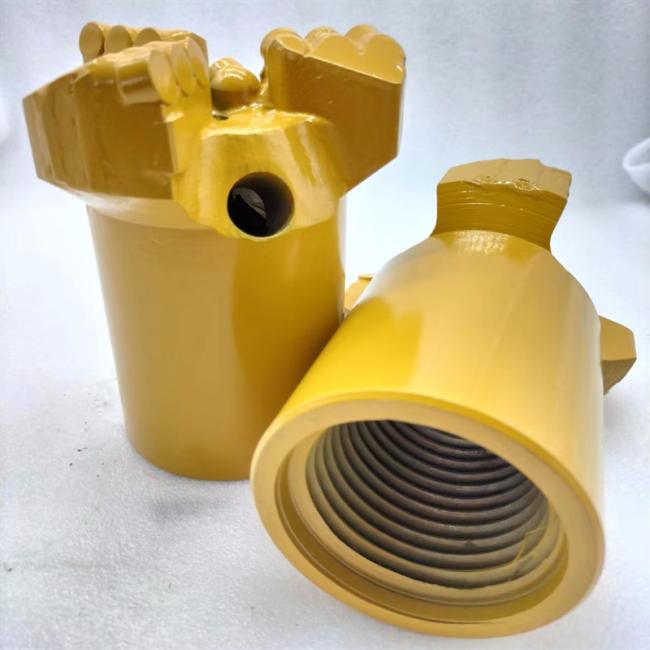

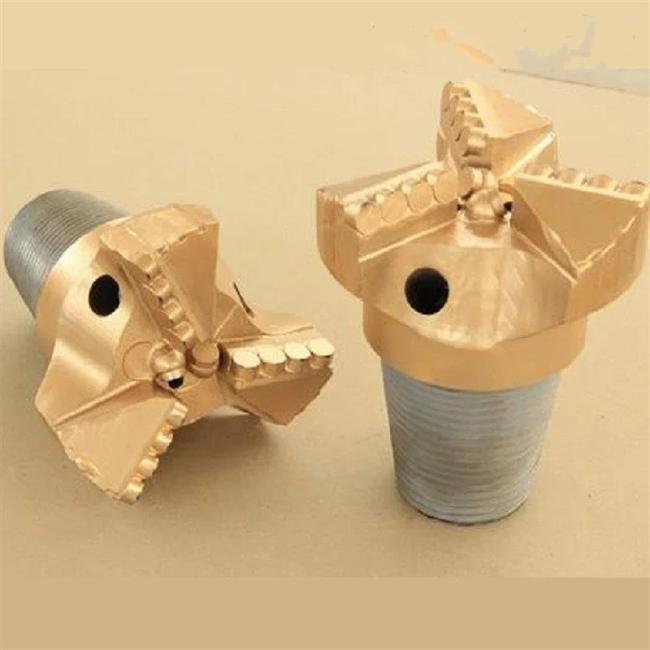

PDC Drill Bit
PDC Drilling bit is made by PDC cutters brazed to Steel Body or casing steel body. The PDC cutter has high hardness, abrasion resistance and toughness, the PDC Drag Drilling bit life is 20-40 times, and the drilling efficiency is 50% higher of tungsten carbide drill bit.
Application
PDC Drag bit is applied to rock formation f below 12, like sandstone, mudstone, etc., it is mainly used for Coal mining ,water well, geothermal well, geological exploration, borehole, gas drainage hole, discharge water hole, blast hole,etc.
Application
PDC Drag bit is applied to rock formation f below 12, like sandstone, mudstone, etc., it is mainly used for Coal mining ,water well, geothermal well, geological exploration, borehole, gas drainage hole, discharge water hole, blast hole,etc.
Our Advantages
1.High density (low porosity)
2.High uniformity of composition and structure
3.Excellent adhesion between diamond particles
4.High wear resistance
5.High impact resistance
6.High thermal stability
7.Optimized interface between diamond and tungsten carbide layer for excellent bonding
3.Excellent adhesion between diamond particles
4.High wear resistance
5.High impact resistance
6.High thermal stability
7.Optimized interface between diamond and tungsten carbide layer for excellent bonding
