Xy-1 100m Hydraulic Rotary Geotechnical Investigation Core Drilling Rig Water Well Drilling Rigs
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
Negotiable
Brand:
Aoxing
Product Description

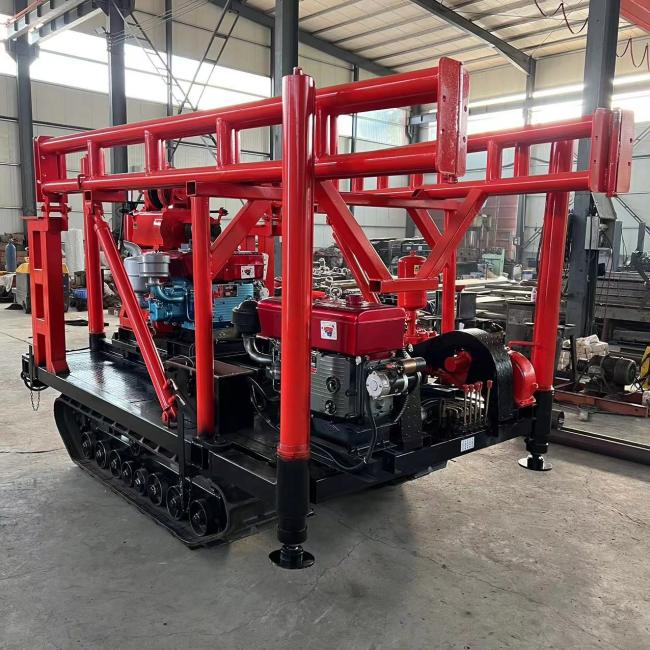

XY-1 Core Drilling Rig is suited for the applications of general exploration and investigation, geophysical prospecting, road and construction survey, blast holes, and other drilling operations.
-
With hydraulic automatic feeding device, elevated drilling efficiency.
-
The holding mechanism with upper spherical jaws is used as a substitute for chuck. The rod can be replaced without shutdown.
-
Centralized handles, easy operation, safe and reliable.
-
The drilling machine, pump, and diesel engine are installed on a common base frame in order to have a compact structure and occupy a small field area.
-
Lightweight, high detachability, easy transportation, and suitable for operations in plains or mountain areas.
Technical SpecificationsDrillSpecification Value Drilling depth 100m Drill rod diameter 42mm Initial hole diameter 110mm Final hole diameter 75mm Angle range 90°-75° Dimensions (LxWxH) 1640x730x1440(mm) Weight (without power unit) 500kg Swivel HeadSpecification Value Spindle speed (3-speed) 142, 285, 570r/min Spindle stroke 450mm Upward displacement speed 0.05m/s Downward displacement speed 0.067m/s Spindle pull-down max 15KN Spindle lifting capacity max 25KN HoistSpecification Value Max. lifting capacity (1-speed, single rope) 10KN Cable volume (number) of hoisting drum 27m Wire rope diameter 9.3mm Oil Pump Model Y3C-12/125 Mud PumpSpecification Value Model (Horizontal reciprocating single-acting piston pump) Displacement max 95L/min (diesel engine) / 77L/min (motor) Allowable working pressure max 1.2Mpa Continuous working pressure 0.7Mpa Suction pipe diameter 32mm Discharge pipe diameter 25mm Power (Diesel Engine or Motor)Specification Value Model (Diesel Engine) S1100A2 Rated Power 12.1KW Rated Speed 2200r/min Model (Motor) Y132M-4 Rated Power 7.5KW Rated Speed 1440r/min Drilling machine advantages:
1. With hydraulic automatic feeding mechanism, high drilling efficiency2. The upper ball clamping mechanism is used instead of the chuck, which can realize the non-stop reverse lever
3. The handle is centralized, easy to operate, safe and reliable
4. Compact structure, drilling rig, water pump and diesel engine are all installed on the same chassis
5. Small footprint, light weight, strong decomposability, easy to relocate, suitable for various terrains such as plains and mountains
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
